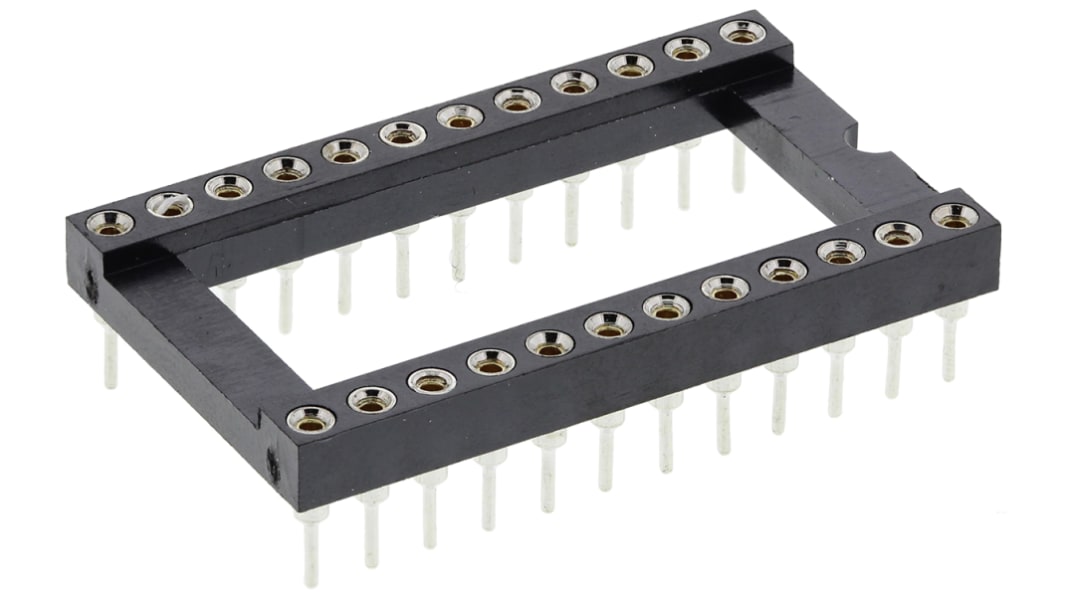

Winslow 2.54mm Pitch Vertical 24 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A
- RS stock no.:
- 813-171
- Mfr. Part No.:
- W30524TRC
- Manufacturer:
- Winslow
1 / 2
Bulk discount available
Subtotal (1 pack of 5 units)**
R 104 12
(exc. VAT)
R 119 74
(inc. VAT)
610 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Real time stock check
Not Available for premium delivery
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 70 | R 20,824 | R 104,12 |
| 75 - 245 | R 20,304 | R 101,52 |
| 250 - 495 | R 19,694 | R 98,47 |
| 500 - 1245 | R 18,906 | R 94,53 |
| 1250 + | R 18,15 | R 90,75 |
**price indicative
- RS stock no.:
- 813-171
- Mfr. Part No.:
- W30524TRC
- Manufacturer:
- Winslow
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 24 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 15.24mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Current Rating | 5A | |
| Orientation | Vertical | |
| Length | 30.4mm | |
| Width | 4.6mm | |
| Depth | 17.66mm | |
| Dimensions | 30.4 x 4.6 x 17.66mm | |
| Minimum Operating Temperature | -65°C | |
| Contact Material | Beryllium Copper | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +150°C | |
Select all | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 24 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 15.24mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Current Rating 5A | ||
Orientation Vertical | ||
Length 30.4mm | ||
Width 4.6mm | ||
Depth 17.66mm | ||
Dimensions 30.4 x 4.6 x 17.66mm | ||
Minimum Operating Temperature -65°C | ||
Contact Material Beryllium Copper | ||
Housing Material PBT | ||
Maximum Operating Temperature +150°C | ||
