RS PRO Resistance Decade Box

View all Decade Boxes

Subtotal (1 unit)*

R 1 115,93

(exc. VAT)

R 1 283,32

(inc. VAT)

Add to Basket
Select or type quantity
Orders below R 1 500,00 (exc. VAT) cost R 120,00.
In Stock
  • Plus 10 unit(s) shipping from 23 February 2026
  • Plus 145 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 1,115.93

*price indicative

RS stock no.:
193-8686
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Decade Box

Decade Box Type

Resistance

Accuracy

±1 %

Number of Decades

7

Minimum Operating Temperature

0°C

Decade Test Range

1Ω to 11 MΩ

Maximum Operating Temperature

500°C

Length

140mm

Height

30mm

Weight

295g

Standards/Approvals

ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007

Width

131 mm

COO (Country of Origin):
CN

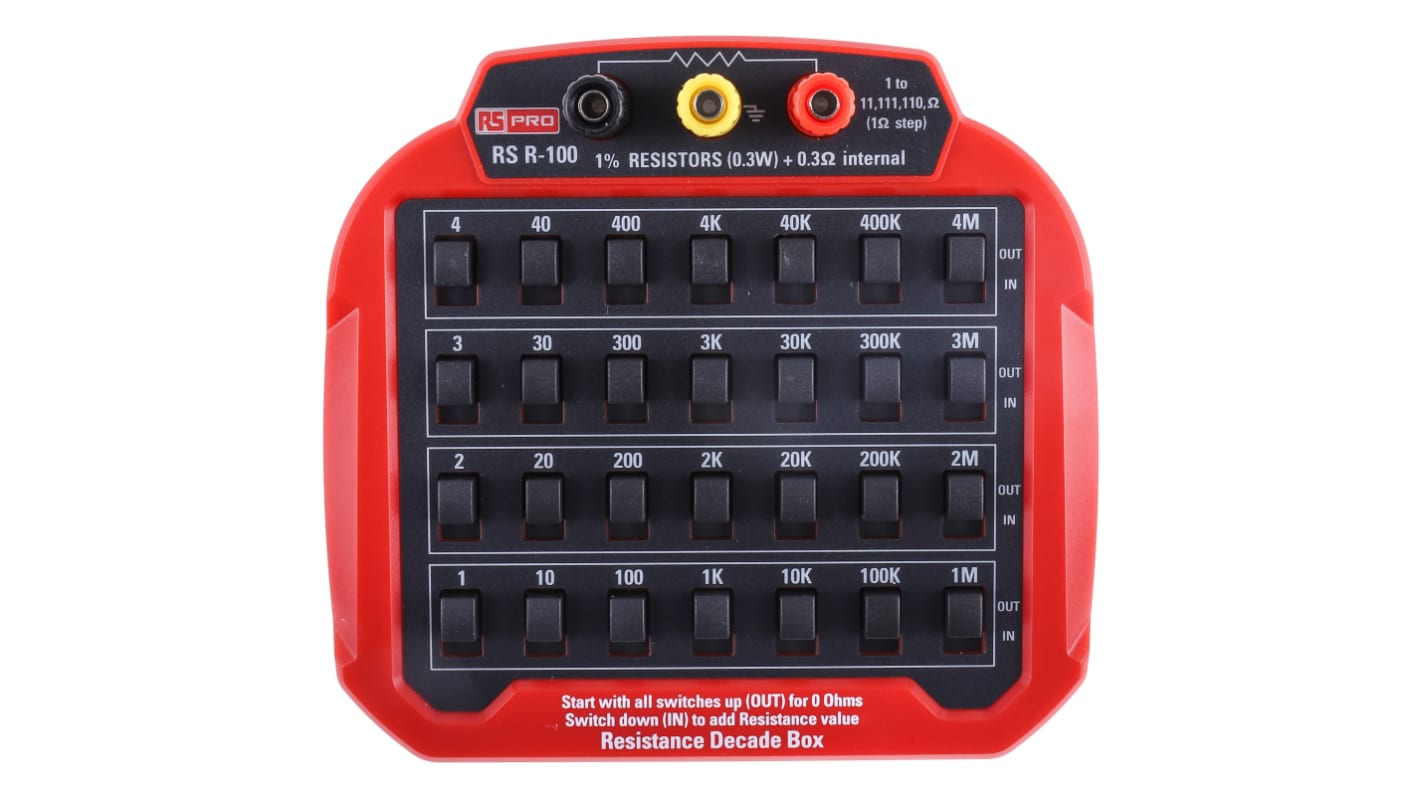

RS PRO R-100 Resistance Decade Box


Introducing the RS PRO R-100 Resistance Decade Box, designed to measure the resistance of electric current through an electrical conductor. This device offers 7 decades of resistance, ranging from 1 to 11MΩ (Ohms) and is suitable for a wide range of product design and prototyping applications or calibration and troubleshooting tasks. This decade box is powered by 0.3W resistors and offers a heavy-duty, durable design for use in the field, making it an ideal resistance test and measurement box to achieve quick and precise results.

Features and Benefits:


  • This RS PRO decade box has been specifically designed to measure the resistance of an electrical current using 7-decade ranges of resistance with accuracy and reliability

  • The heavy-duty construction of the box makes the device ultra-durable and ideal for working in the field or harsh environments

  • It offers a separate grounding terminal and the three binding posts permit isolated substitutions

  • The resistance range of the box is from 1 to 111Ω in 1Ω increments

  • Powered by 0.3W resistors, this decade resistance box ideal for a wide range of applications

    • Applications:


    This device offers 7 decades of resistance ranges 1 to over 11MΩ (in 1Ω steps). Slide switches allow easy addition and subtraction of resistance values. Binding posts offer simple and secure connections.
