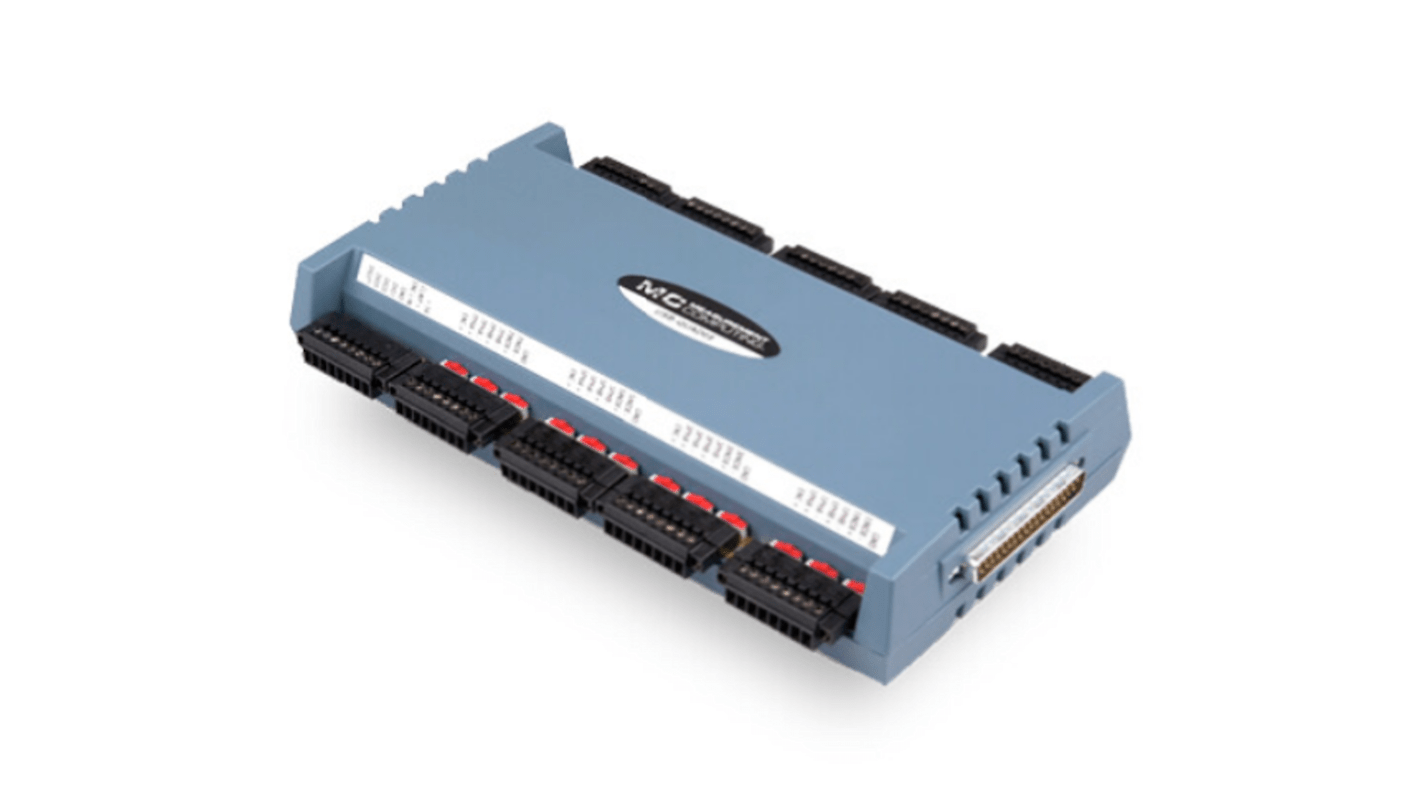

Digilent USB-QUAD08 Data Acquisition 8-Channel, USB, 32 bit
- RS stock no.:
- 278-2750
- Distrelec Article No.:
- 303-68-539
- Mfr. Part No.:
- 6069-410-045
- Manufacturer:
- Digilent
Subtotal (1 unit)*
R 11 765,61
(exc. VAT)
R 13 530,45
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | R 11,765.61 |
*price indicative
- RS stock no.:
- 278-2750
- Distrelec Article No.:
- 303-68-539
- Mfr. Part No.:
- 6069-410-045
- Manufacturer:
- Digilent
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Digilent | |
| Product Type | Data Acquisition | |
| Resolution | 32 bit | |
| Number of Channels | 8 | |
| Connectivity | USB | |
| Power Source | 5 V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 245mm | |
| Width | 146 mm | |
| Standards/Approvals | ITU recommendations V.10, V.11, X.26, ANSI EIA/422B, RS485, X.27, EIA/423B | |
| Height | 50mm | |
| Model Number | USB-QUAD08 | |
| Select all | ||
|---|---|---|
Brand Digilent | ||
Product Type Data Acquisition | ||
Resolution 32 bit | ||
Number of Channels 8 | ||
Connectivity USB | ||
Power Source 5 V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Length 245mm | ||
Width 146 mm | ||
Standards/Approvals ITU recommendations V.10, V.11, X.26, ANSI EIA/422B, RS485, X.27, EIA/423B | ||
Height 50mm | ||
Model Number USB-QUAD08 | ||
- COO (Country of Origin):
- HU
The Digilent eight channels quadrature encoder USB device has effective frequency range 0.01123 Hz to 5 MHz.
Number of input or output 8 independent
Output low less than 0.8 V
