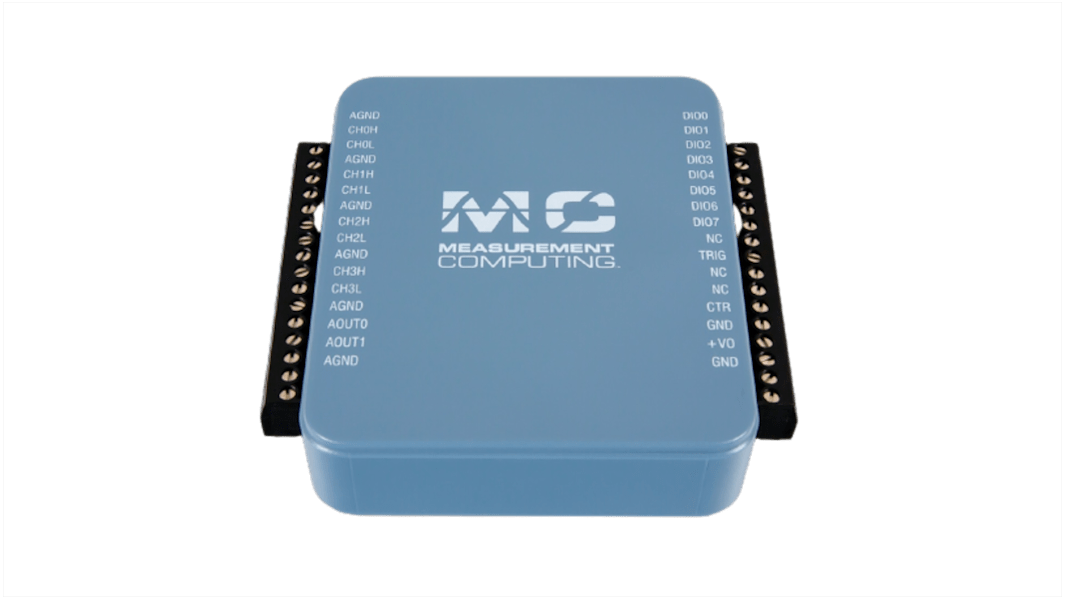

Digilent MCC USB-231 Data Acquisition, 8 SE/4 DIFF Channel(s), USB, 100ksps, 16 bit
- RS stock no.:
- 241-4285
- Mfr. Part No.:
- 6069-410-012
- Manufacturer:
- Digilent
View all Data Acquisition
14 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Price (Excl VAT) Each
R 5,767.85
(exc. VAT)
R 6,633.03
(inc. VAT)
| units | Per unit |
| 1 + | R 5,767.85 |
- RS stock no.:
- 241-4285
- Mfr. Part No.:
- 6069-410-012
- Manufacturer:
- Digilent
Technical data sheets
Legislation and Compliance
Product Details
Digilent multifunction MCC USB-231 DAQ includes 16-bit resolution channels, eight single ended or four differential analog inputs. Alongside two 16-bit analog outputs, eight digital I/O and one 32-bit edge counter. The data acquisition sample rates are aggregate and the MCC USB 231 has a rate up to 50 kS/s on a single channel. See the datasheet when looking for maximum sample rates on one to eight channels.
Digilents MCC USB-231 DAQ is supported by DAQami software, an out of the box application for viewing data, signal generation and data logging. The data can be viewed in real-time or post-acquisition. The drivers included are for applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Digilents MCC USB-231 DAQ is supported by DAQami software, an out of the box application for viewing data, signal generation and data logging. The data can be viewed in real-time or post-acquisition. The drivers included are for applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
Fixed analog input/ output range: ±10 V
No external power required
USB cable (micro-USB type B)
Two screw terminal connector plugs
Dimensions with screw terminal connector plugs: 93.2 ´ 86.2 ´ 23.6 mm
Product Compliance: HTC: 8471.80.9000, ECCN: EAR99
Supported Operating Systems: Windows 11/10/8/7/Vista, 32-bit or 64-bit
No external power required
USB cable (micro-USB type B)
Two screw terminal connector plugs
Dimensions with screw terminal connector plugs: 93.2 ´ 86.2 ´ 23.6 mm
Product Compliance: HTC: 8471.80.9000, ECCN: EAR99
Supported Operating Systems: Windows 11/10/8/7/Vista, 32-bit or 64-bit
Specification
| Attribute | Value |
| Number of Input Channels | 8 SE/4 DIFF |
| Sampling Rate | 100ksps |
| Resolution | 16 bit |
| Connectivity | USB |
| Input Type | Analogue |
| Output Type | Analogue, Digital |
| Dimensions | 75.4 <font face="symbol">´</font> 86.2 <font face="symbol">´</font> 23.6mm |
| Height | 23.6mm |
| Length | 75.4mm |
| Model Number p | MCC USB-231 |
| Width | 86.2mm |
| Maximum Operating Temperature | +45°C |
| Minimum Operating Temperature | 0°C |
