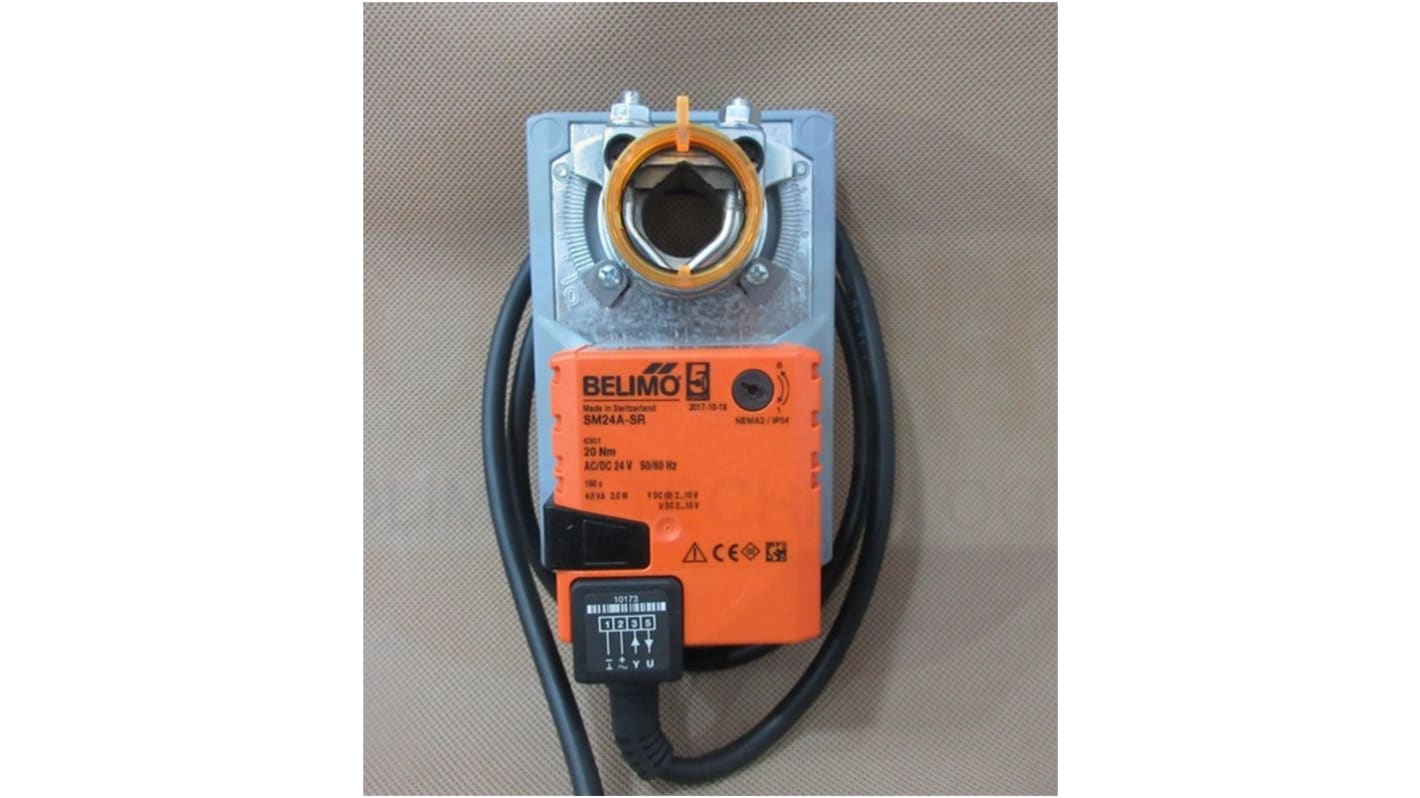

Belimo Modulating Damper Actuator, 10 Nm, 24 V ac/dc

View all Damper Actuators

Subtotal (1 unit)*

R 5 721,81

(exc. VAT)

R 6 580,08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 5,721.81

*price indicative

RS stock no.:
834-7701
Mfr. Part No.:
NM24A-SR-TP
Manufacturer:
Belimo
Find similar products by selecting one or more attributes.
Select all

Brand

Belimo

Product Type

Damper Actuator

Maximum Damper Area

2m²

Switch Included

Yes

Power Consumption

2W

Control Type

Modulating

Supply Voltage

24 V ac/dc

Motor Torque

10Nm

Noise Level

35dB

IP Rating

IP54

Running Time

150s

Maximum Damper Spindle Size

26.7mm

Angle of Rotation

95°

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

50°C

Minimum Damper Spindle Size

8mm

Standards/Approvals

UL, CSA, RoHS, EN, IEC, CE

Exempt

COO (Country of Origin):
CH

Belimo Damper Actuators


Maintenance-free, low power consumption, rotary damper/louvre actuators, compatible with all leading makes of HVAC controls.

Minimum life of 60000 operations

Stall torque technology requires no end switches

Adjustable U-clamp accepts round or square shafts

Visible position indicator

Pushbutton manual override

Direction change switch

IP54 rated

150s motor run time

1m pre-wired cable

Stock nos. 504-1236 & 504-1242 feature an integrated 1xSPDT 3 (0.5)A 250Vac auxiliary switch

Optional auxiliary switch (stock no. 504-1545) suitable for use with LM, NM, SM and GM damper actuators, features 2xSPDT switches rated at 3 (0.5)A 250Vac and supplied with 1m of cable
