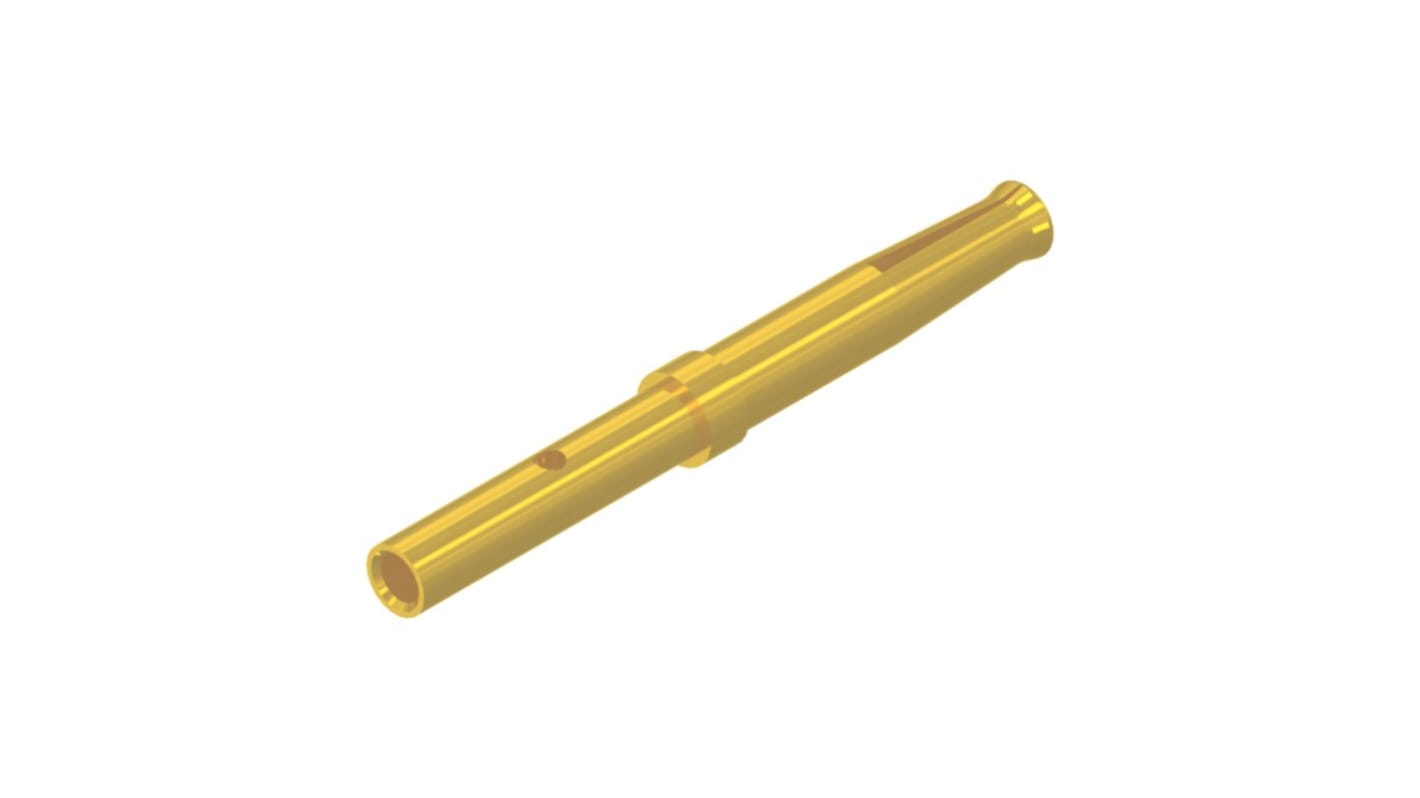

CONEC size 1.34 mm Female Crimp D-Sub Connector Contact, Gold Flash over Nickel Socket 22 AWG
- RS stock no.:
- 228-0973
- Mfr. Part No.:
- 162A18419X
- Manufacturer:
- CONEC
Image representative of range
Bulk discount available
Subtotal (1 bag of 500 units)*
R 2 636,50
(exc. VAT)
R 3 032,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 1,000 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 500 - 500 | R 5.273 | R 2,636.50 |
| 1000 - 2000 | R 5.141 | R 2,570.50 |
| 2500 + | R 4.987 | R 2,493.50 |
*price indicative
- RS stock no.:
- 228-0973
- Mfr. Part No.:
- 162A18419X
- Manufacturer:
- CONEC
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CONEC | |
| Gender | Female | |
| Product Type | D-Sub Connector Contact | |
| Contact Material | Copper Alloy | |
| Current | 3A | |
| Contact Plating | Gold Flash over Nickel | |
| Maximum Contact Resistance | 10mΩ | |
| Contact Type | Socket | |
| Contact Size | 1.34 mm | |
| Termination Type | Crimp | |
| Standards/Approvals | Directive 2002/95/EC RoHS compliant | |
| Maximum Wire Size AWG | 22 AWG | |
| Minimum Wire Size AWG | 28 AWG | |
| Select all | ||
|---|---|---|
Brand CONEC | ||
Gender Female | ||
Product Type D-Sub Connector Contact | ||
Contact Material Copper Alloy | ||
Current 3A | ||
Contact Plating Gold Flash over Nickel | ||
Maximum Contact Resistance 10mΩ | ||
Contact Type Socket | ||
Contact Size 1.34 mm | ||
Termination Type Crimp | ||
Standards/Approvals Directive 2002/95/EC RoHS compliant | ||
Maximum Wire Size AWG 22 AWG | ||
Minimum Wire Size AWG 28 AWG | ||
- COO (Country of Origin):
- DE
The CONEC HD crimp contact used with 22 AWG wire size.
Made up of copper alloy
RoHS & REACH compliant
