Microchip ATF750CL-15XU Complex Programmable Logic Device ATF750C(L) EEPROM 10 Cells, 42 I/O, 7.5 ns 24-Pin TSSOP
- RS stock no.:
- 215-3920
- Mfr. Part No.:
- ATF750CL-15XU
- Manufacturer:
- Microchip

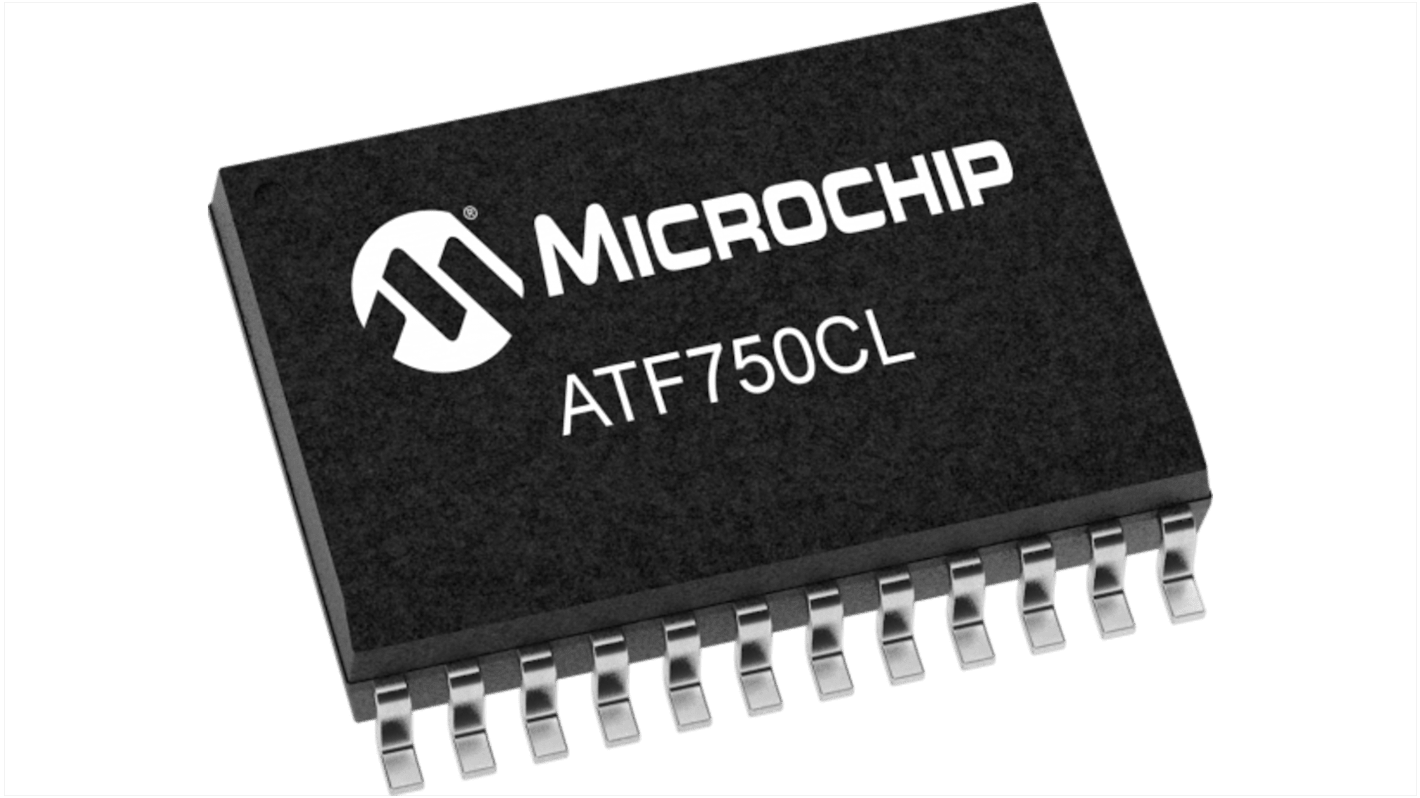

Image representative of range
Bulk discount available
Subtotal (1 pack of 5 units)*
R 281,92
(exc. VAT)
R 324,21
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 285 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | R 56.384 | R 281.92 |
| 10 - 20 | R 54.974 | R 274.87 |
| 25 - 95 | R 53.324 | R 266.62 |
| 100 + | R 51.192 | R 255.96 |
*price indicative
- RS stock no.:
- 215-3920
- Mfr. Part No.:
- ATF750CL-15XU
- Manufacturer:
- Microchip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Complex Programmable Logic Device | |
| Series | ATF750C(L) | |
| Number of Macro Cells | 10 | |
| Number of User I/Os | 42 | |
| Maximum Propagation Delay Time | 7.5ns | |
| Memory Type | EEPROM | |
| In System Programmability | No | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 24 | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Supply Voltage | 5.5V | |
| Individual Output Enable Control | No | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Length | 7.8mm | |
| Width | 4.48 mm | |
| Maximum Operating Frequency | 71MHz | |
| Re-programmability Support | Yes | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Complex Programmable Logic Device | ||
Series ATF750C(L) | ||
Number of Macro Cells 10 | ||
Number of User I/Os 42 | ||
Maximum Propagation Delay Time 7.5ns | ||
Memory Type EEPROM | ||
In System Programmability No | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 24 | ||
Minimum Supply Voltage 4.5V | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Supply Voltage 5.5V | ||
Individual Output Enable Control No | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Length 7.8mm | ||
Width 4.48 mm | ||
Maximum Operating Frequency 71MHz | ||
Re-programmability Support Yes | ||
Automotive Standard No | ||
The Microchip high-performance, high-density complex programmable logic device that utilizes electrically-erasable memory technology.
High speed
Programmable pin keeper circuits
