Pfannenberg DTI 9021 Series Enclosure Cooling Unit, 320W, 282 m³/h 230V ac 329 mm 202mm 252 mm
- RS stock no.:
- 513-4417
- Mfr. Part No.:
- DTI 9021 13293041000
- Manufacturer:
- Pfannenberg
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
R 47,470.84
(exc. VAT)
R 54,591.47
(inc. VAT)
- RS stock no.:
- 513-4417
- Mfr. Part No.:
- DTI 9021 13293041000
- Manufacturer:
- Pfannenberg
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 320W | |
| Air Flow | 282m³/h | |
| Noise Level | 26dB | |
| Mount Type | Wall | |
| Input Power | 320W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP54 | |
| Maximum Temperature Setting | 45°C | |
| Min Temperature Setting | 25°C | |
| Series | DTI 9021 | |
| Width | 202mm | |
| Standards/Approvals | No | |
| Depth | 252mm | |
| Height | 329mm | |
| Cooler Type | Air Conditioning Unit | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 320W | ||
Air Flow 282m³/h | ||
Noise Level 26dB | ||
Mount Type Wall | ||
Input Power 320W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP54 | ||
Maximum Temperature Setting 45°C | ||
Min Temperature Setting 25°C | ||
Series DTI 9021 | ||
Width 202mm | ||
Standards/Approvals No | ||
Depth 252mm | ||
Height 329mm | ||
Cooler Type Air Conditioning Unit | ||
- COO (Country of Origin):
- DE
290W Air Conditioning Unit

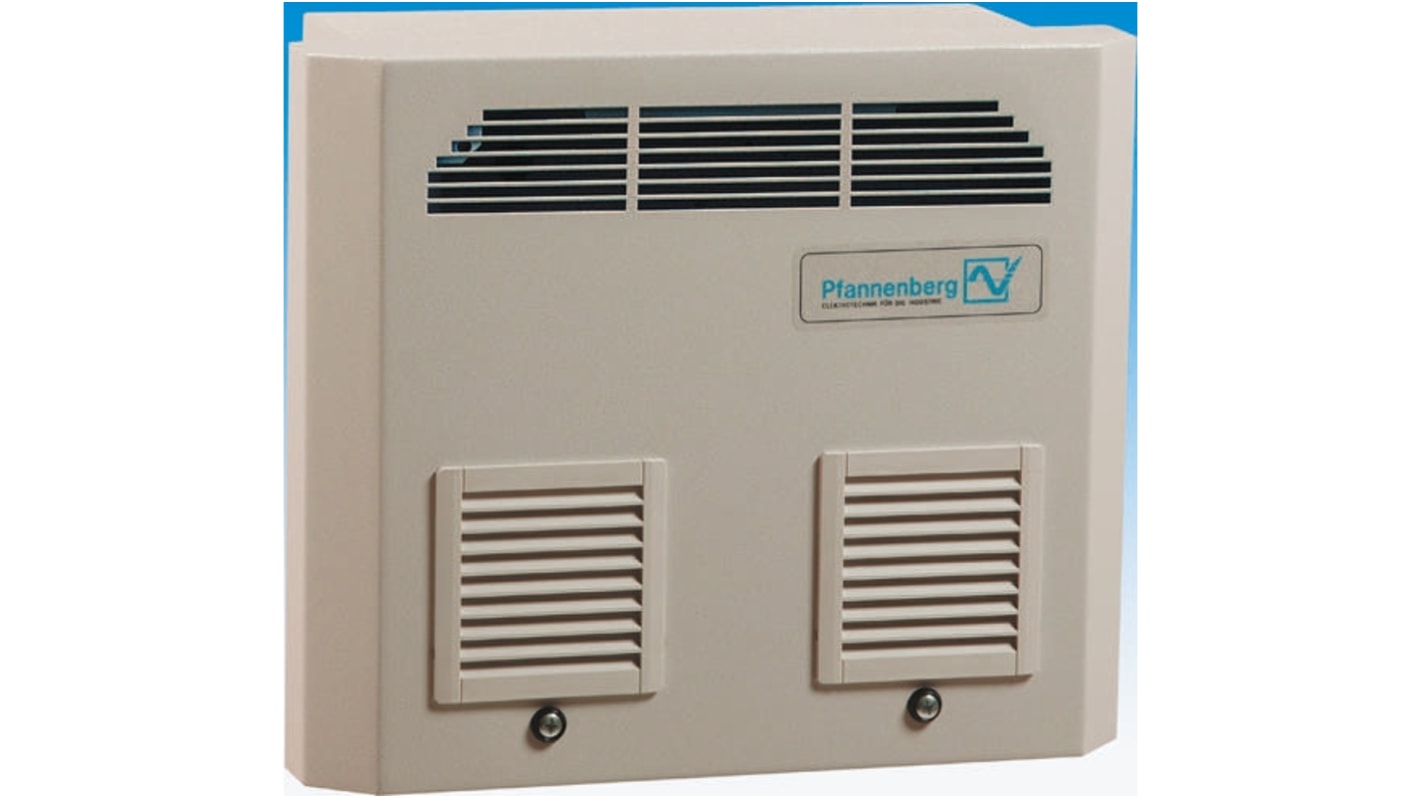

Pfannenberg DTI 9021 cooling units offer high performance in a compact design with diagnostic messaging and integrated fault and door contact.
IP54
High-capacity performance in compact design
Diagnosis report for status monitoring system
Optimum reliability with standard electronics
Partially recessed mounting
Factory set thermostat setting: +35°C (+95°F)
Ambient air temperature: +15°C (59°F) to +45°C (113°F)
Temperature inside enclosure: +25°C (77°) to +45°C (113°F)
