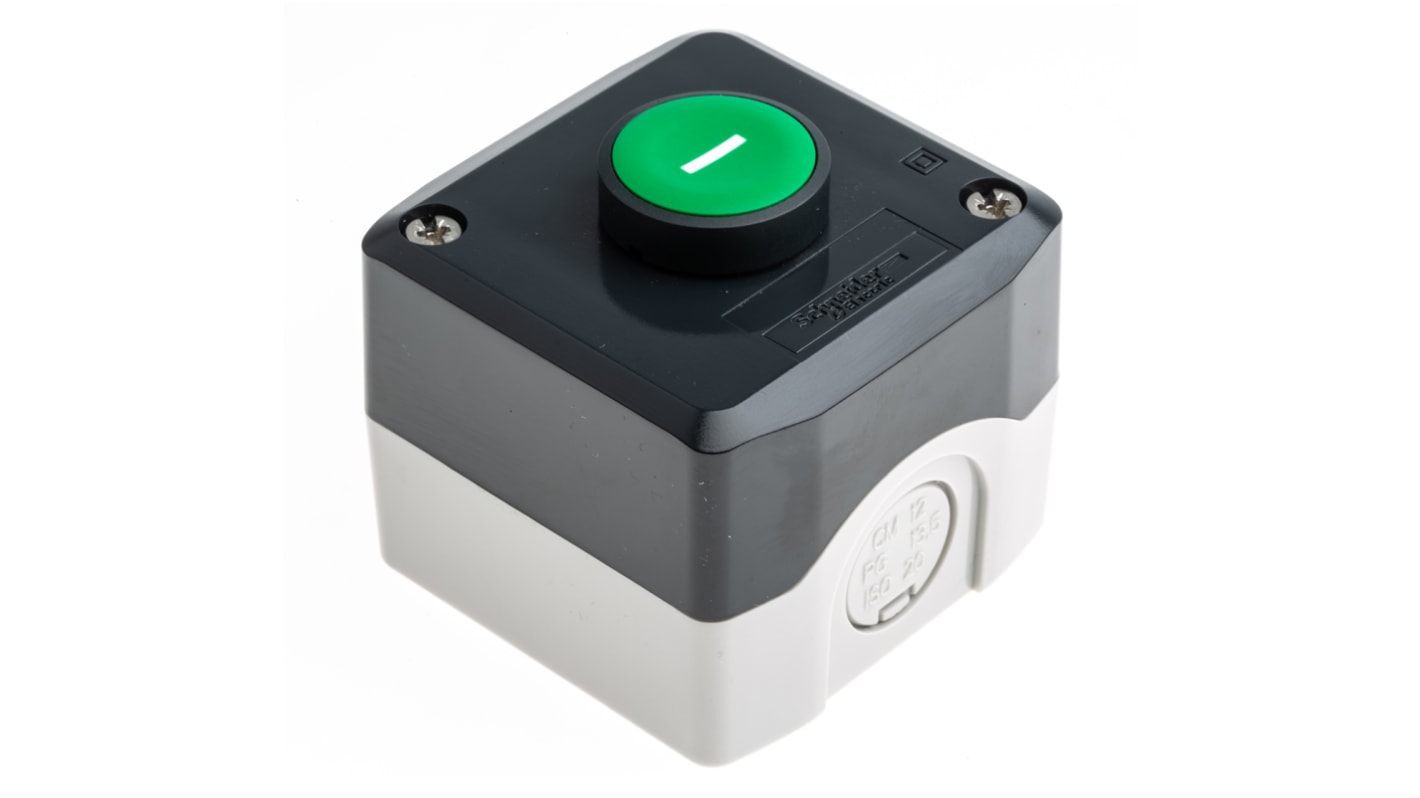

Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, 1 Cutouts, Green, I, IP66, IP67,

RS stock no.:: 330-8464
Mfr. Part No.:: XALD102
Manufacturer:: Schneider Electric

Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, 1 Cutouts, Green, I, IP66, IP67,

Bulk discount available

Price Each**

R 838,94

(exc. VAT)

R 964,78

(inc. VAT)

On back order for despatch 2025/01/09*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Units	Per unit
1 - 9	R 838,94
10 - 24	R 817,97
25 +	R 793,43

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

Alternative

This product is not currently available. Here is our alternative recommendation.

Schneider Electric Spring Return Enclosed Push Button - SPST, Polycarbonate, Green, START, IP66, IP67, IP69K

RS stock no.: 342-2548

Each

R 666,86

(exc. VAT)

R 766,89

(inc. VAT)

RS stock no.:: 330-8464
Mfr. Part No.:: XALD102
Manufacturer:: Schneider Electric

Schneider Electric Enclosed Push Button - Complete Control Station

Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.

Features & Benefits

• Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
• 1 flush push button
• Comprised of a polycarbonate material
• Cable entry - 1 knock-out for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm
• Ambient air temperature for storage and operation -40...70 °C
• Mechanical durability - 10000000 cycles

What is the Harmony Series?

The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.

Schneider Electric Enclosed Push Button, AC/DC Operating Voltage, 10A Short-Circuit Protection - Harmony XALD Series - XALD102

Looking for a hassle-free way to control power to your industrial equipment? Pick this enclosed push button from Schneider Electric. To turn a connected component on or off, you simply press on the green actuator, which activates the contacts to instantly make or break the circuit. The spring return actuation type returns to the start position as soon as you stop pressing, so you have momentary control. Thanks to its IP66 rating, you can be sure this unit's dust-tight and resists high-pressure water jets from any direction. A low weight of 135g means your system stays strain-free.

Features & Benefits

• Suitable for harsh environments thanks to a broad operating temperature range between -40°C and +70°C
• Mechanical durability rating of 10 million cycles, so it's highly reliable
• Polycarbonate body resists impact and scratches
• Tightening torque of 0.8 to 1.2Nm means it's simple to install by hand
• Bright green colour with | symbol for easy identification as a start button

Applications

• Production lines
• Textile manufacturing
• Packaging industry
• Smoke extraction vents

Can this product withstand impulse voltages?

Yes, it withstands impulse voltages up to 6kV for electrical safety.

Attribute	Value
Series	XALD
Number of Cutouts	1
Push Button Marking	I
Push Button Colour	Green
Push Button Material	Polycarbonate
Enclosure Colour	Dark Grey/Light Grey
Contact Configuration	SPST
Enclosure Material	Polycarbonate
IP Rating	IP66, IP67, IP69(IP69K)
Cutout Diameter	22mm
Push Button Actuation	Spring Return
Length	68mm
Width	68mm
Depth	53mm
Better World Verification	Green Premium
Better World Product	Yes
Maximum Current	10A
Minimum Operating Temperature	-40°C
Maximum AC Voltage	600V
Maximum DC Voltage	600V
Maximum Operating Temperature	+70°C
Terminal Type	Screw
