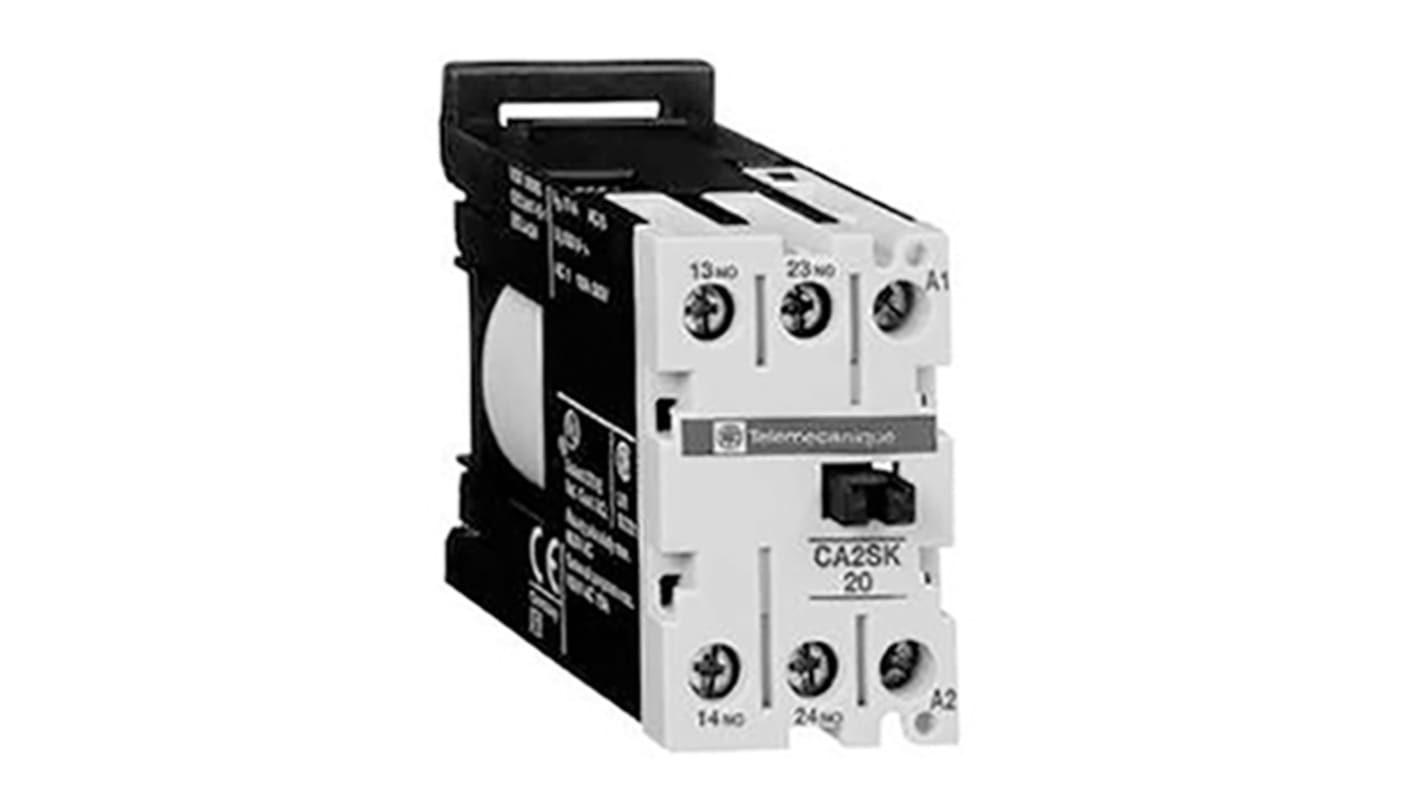

Schneider Electric CA2S Contactor Relay, 110V ac Coil, 2-Pole, 10 A, 2 NO, 690V ac
- RS stock no.:
- 824-2710
- Mfr. Part No.:
- CA2SK20G7
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 1 019,20
(exc. VAT)
R 1 172,08
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,019.20 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS stock no.:
- 824-2710
- Mfr. Part No.:
- CA2SK20G7
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor Relay | |
| Coil Voltage | 110V ac | |
| Number of Poles | 2 | |
| Contact Voltage | 690V ac | |
| Contact Current | 10A | |
| Series | CA2S | |
| Mount Type | Plate | |
| Normal State Configuration | 2 NO | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 27mm | |
| Standards/Approvals | BS 5424, cULus, IEC 60947, NF C 63-110, VDE 0660 | |
| Depth | 55.5mm | |
| Length | 56mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor Relay | ||
Coil Voltage 110V ac | ||
Number of Poles 2 | ||
Contact Voltage 690V ac | ||
Contact Current 10A | ||
Series CA2S | ||
Mount Type Plate | ||
Normal State Configuration 2 NO | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Width 27mm | ||
Standards/Approvals BS 5424, cULus, IEC 60947, NF C 63-110, VDE 0660 | ||
Depth 55.5mm | ||
Length 56mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Exempt
CA2K and CA3K Series
K relays are usually mounted on 35 mm DIN 3 track, but can also be mounted directly to a panel. One version of this relay can be printed circuit board mounted. A low power consumption version of this relay is available for use with low level dc signals from a computer or a PLC. The fixed contacts in these relays have a NEMA A600 and Q600 ratings, in addition to make it up to an 8-pole relay. The serrated silver-nickel contacts with wiping action, provide excellent reliability in 12 or 24 volt control circuits. An electronic timer attachment is available for these relays.
NEMA A600, Q600
Screw clamp terminals
Suitable for different applications such as material handling, HVAC, packaging, oil and gas, crane and hoist, etc.
