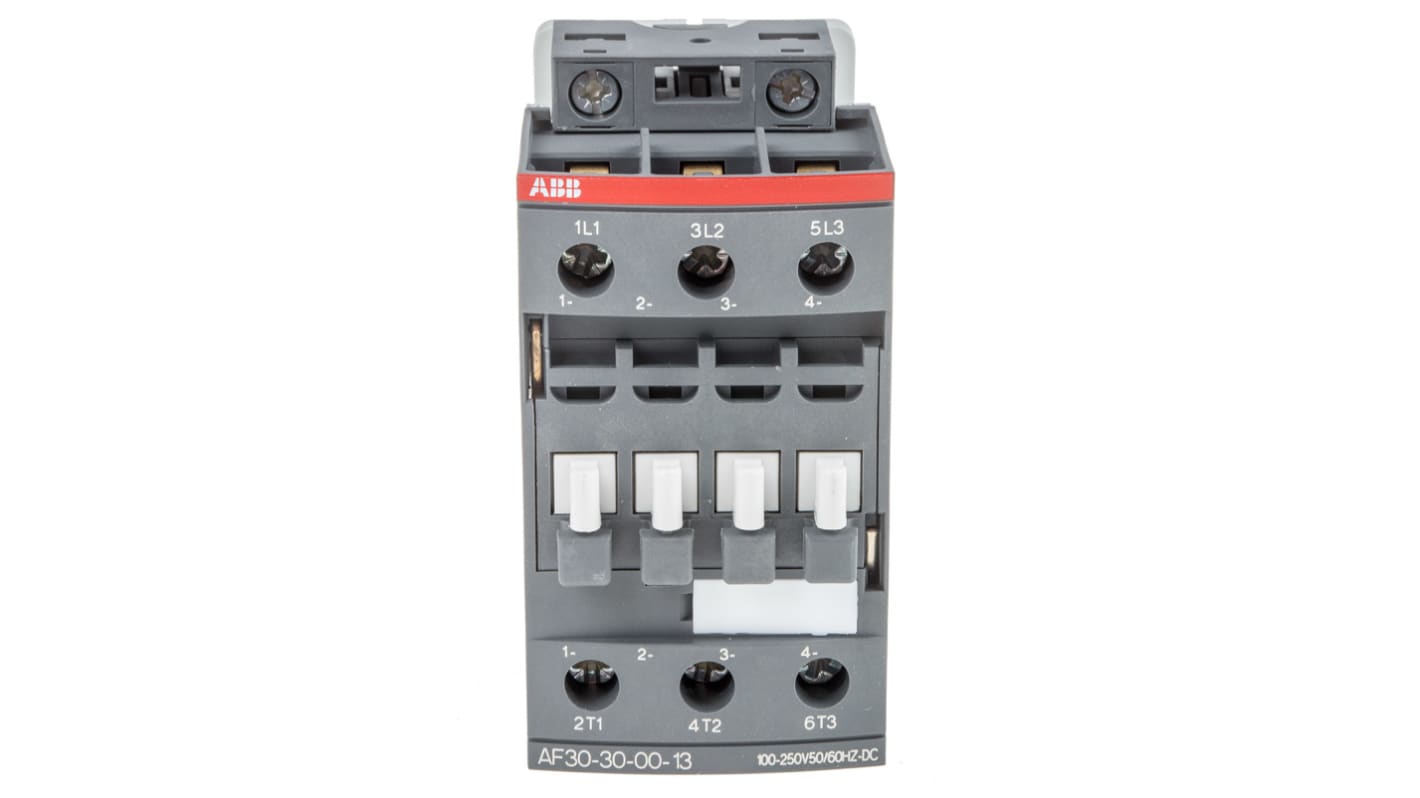

ABB AF30 Contactor, 230 V dc Coil, 3-Pole, 21 A, 15 kW 250 V, 3 NO, 690V ac

RS stock no.:: 711-6127
Mfr. Part No.:: 1SBL277001R1300 AF30-30-00-13
Manufacturer:: ABB

ABB AF30 Contactor, 230 V dc Coil, 3-Pole, 21 A, 15 kW 250 V, 3 NO, 690V ac

View all Contactors

Subtotal (1 unit)*

R 2 786,68

(exc. VAT)

R 3 204,68

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

34 unit(s) ready to ship from another location
Plus 14 unit(s) shipping from 24 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 2,786.68

*price indicative

RS stock no.:: 711-6127
Mfr. Part No.:: 1SBL277001R1300 AF30-30-00-13
Manufacturer:: ABB

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor
	Coil Voltage	230 V dc
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	21A
	Power Rating	15kW
	Series	AF30
	Function	Motor Control
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Terminal Type	Screw
	Operational Current Ie	5kA
	Control Circuit Voltage Uc	250 V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Length	86mm
	Width	45 mm
	Standards/Approvals	UL/CSA, IEC, NEMA
	Depth	86mm
	Pole and Throw Configuration	3

	Select all
	Brand ABB
	Product Type Contactor
	Coil Voltage 230 V dc
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 21A
	Power Rating 15kW
	Series AF30
	Function Motor Control
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Terminal Type Screw
	Operational Current Ie 5kA
	Control Circuit Voltage Uc 250 V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Length 86mm
	Width 45 mm
	Standards/Approvals UL/CSA, IEC, NEMA
	Depth 86mm
	Pole and Throw Configuration 3

ABB Contactor, 690V AC Contact Voltage Rating, 6kV Rated Impulse Withstand Voltage - AF Series - 1SBL277001R1300

Switching your electrical circuit on and off is all in a day's work for this contactor from ABB. When its electromagnetic coil receives current, the internal contacts open or close to control the flow of power. As it has a current rating of 21A and a power rating of 15kW, the unit keeps up with the demands of your heavy-duty equipment. A mechanical switching frequency of 3,600 cycles/hr means you can use it constantly without the risk of breakdowns.

Features & Benefits

• Integrated resistance to shock and vibration for stability in demanding operations

• Screw terminals for a secure wire connection

• Compact external dimensions of 86 (H) x 45 (W) x 86mm (D) to save space in your setup

Applications

• Lighting fixtures

• Telecommunications networks

• Construction equipment

• Mining and quarrying industry

How do I mount this contactor?

It's easy to mount this contactor by simply clipping it onto a DIN rail, eliminating the need for complex tools.

What's the ambient operating temperature range of this contactor?

This contactor has a wide operating temperature range between -40°C and +70°C, which means it gets the job done in challenging settings.
