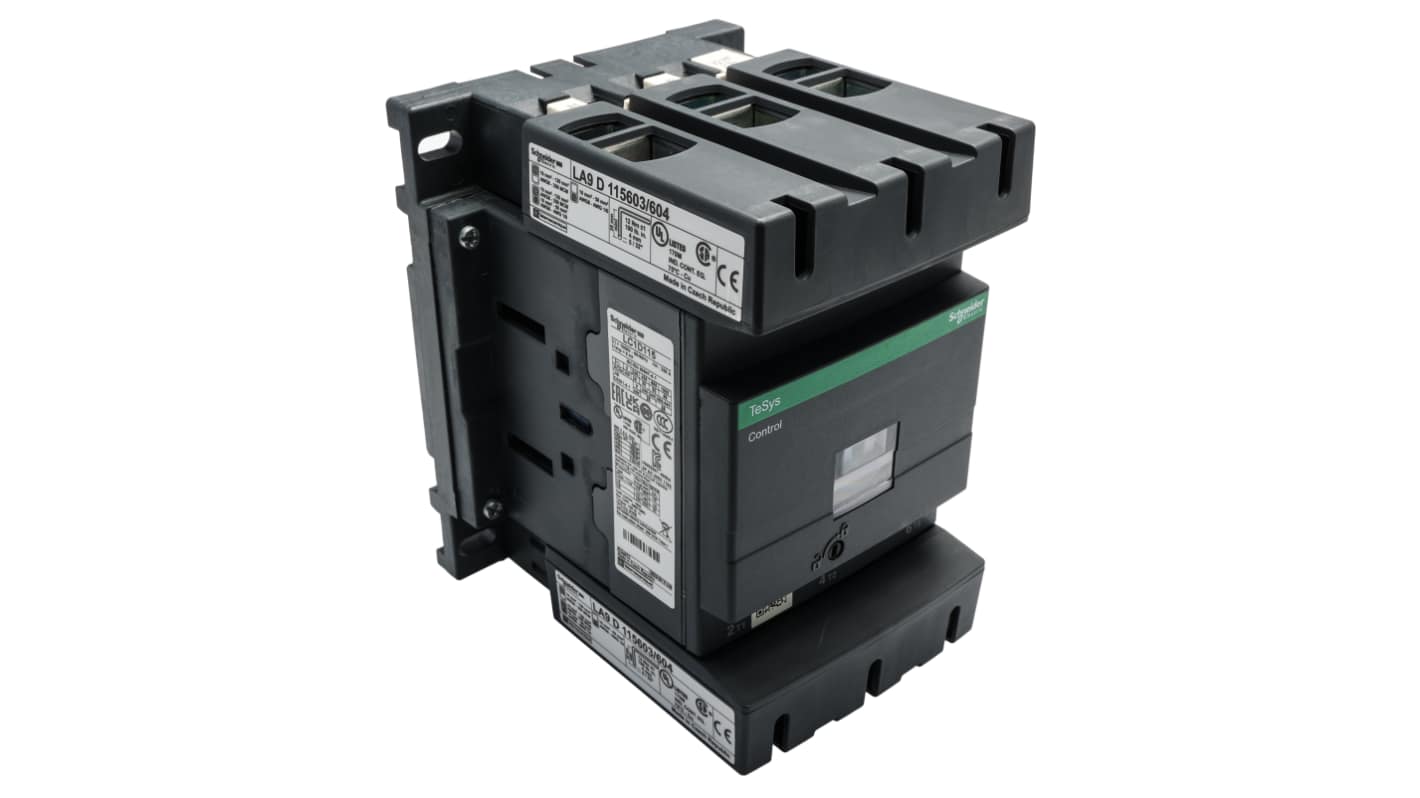

Schneider Electric TeSyS D Contactor, 115V ac Coil, 3-Pole, 115 A, 55 kW 115V ac, 3 NO, 1kV ac

RS stock no.:: 608-9403
Mfr. Part No.:: LC1D115FE7
Manufacturer:: Schneider Electric

Schneider Electric TeSyS D Contactor, 115V ac Coil, 3-Pole, 115 A, 55 kW 115V ac, 3 NO, 1kV ac

Subtotal (1 unit)*

R 12 542,54

(exc. VAT)

R 14 423,92

(inc. VAT)

FREE delivery for orders over R 1,500.00

Stocked by manufacturer

Ready to ship from 02 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 12,542.54

*price indicative

RS stock no.:: 608-9403
Mfr. Part No.:: LC1D115FE7
Manufacturer:: Schneider Electric

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Contactor
	Coil Voltage	115V ac
	Number of Poles	3
	Contact Voltage	1kV ac
	Contact Current	115A
	Power Rating	55kW
	Series	TeSyS D
	Mount Type	DIN Rail
	Function	Motor Control, Resistive Load
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO/1 NC
	Number of Auxiliary Contacts	2
	Terminal Type	Screw
	Contactor Application	Motor Control, Resistive Load
	Control Circuit Voltage Uc	115V ac
	Minimum Operating Temperature	-40°C
	Operational Current Ie	115A
	Maximum Operating Temperature	60°C
	Depth	136mm
	Length	158mm
	Standards/Approvals	CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL
	Width	120mm
	Pole and Throw Configuration	3

	Select all
	Brand Schneider Electric
	Product Type Contactor
	Coil Voltage 115V ac
	Number of Poles 3
	Contact Voltage 1kV ac
	Contact Current 115A
	Power Rating 55kW
	Series TeSyS D
	Mount Type DIN Rail
	Function Motor Control, Resistive Load
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO/1 NC
	Number of Auxiliary Contacts 2
	Terminal Type Screw
	Contactor Application Motor Control, Resistive Load
	Control Circuit Voltage Uc 115V ac
	Minimum Operating Temperature -40°C
	Operational Current Ie 115A
	Maximum Operating Temperature 60°C
	Depth 136mm
	Length 158mm
	Standards/Approvals CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL
	Width 120mm
	Pole and Throw Configuration 3

Schneider Electric LC1D Series Contactor, 3 Poles, 115A Contact Current Rating - LC1D115FE7

This contactor is a versatile component designed for motor and load control applications within the TeSys range. It operates with an input coil voltage of 115V AC, suitable for both resistive and motor control requirements. The compact design includes dimensions of 158mm in length, 120mm in width, and 136mm in depth, making it ideal for various installations.

Features & Benefits

• Three-pole configuration facilitates effective power distribution

• Rated operational current up to 115A supports high-performance applications

• Maximum load voltage of 440V AC enhances versatility

• Designed for DIN rail mounting ensures easy installation

• Includes two auxiliary contacts for expanded functionality

• Capable of operating in temperatures from -40°C to +60°C

Applications

• Designed for motor control in industrial machinery

• Ideal for load control in automation systems

• Suitable for use in HVAC equipment for effective management

• Compatible with PLC integration for enhanced automation

• Utilised in power distribution for commercial electrical setups

What is the maximum current this device can handle?

The device can manage a maximum operational current of 115A under AC-3 conditions.

How does the insulation rating affect its application?

The rated insulation voltage of 600V ensures safe operation in various industrial settings, allowing for robust applications.

What type of auxiliary contacts does this contactor feature?

It features a configuration of 1 normally open and 1 normally closed auxiliary contact, allowing flexible control options.

Can this contactor operate effectively in extreme temperatures?

Yes, it is designed to function within a temperature range of -40°C to +60°C, making it suitable for challenging environments.
