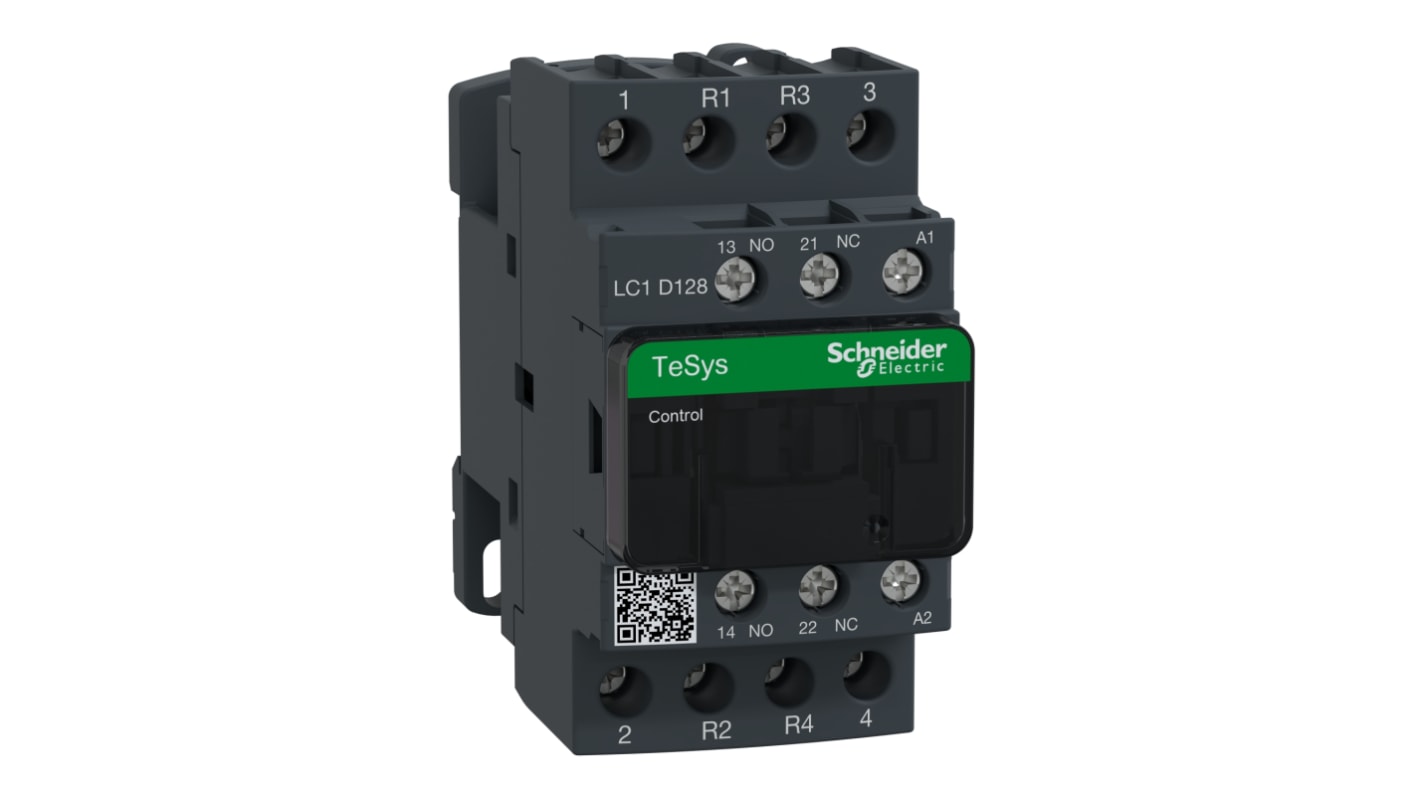

Schneider Electric TeSyS D Contactor, 110V ac Coil, 4-Pole, 12 A, 1.56 W 110V ac, 2 NO/2 NC, 690V ac
- RS stock no.:
- 454-7935
- Mfr. Part No.:
- LC1D128F7
- Manufacturer:
- Schneider Electric
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 160,45
(exc. VAT)
R 1 334,52
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,160.45 |
| 5 - 9 | R 1,131.44 |
| 10 + | R 1,097.50 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS stock no.:
- 454-7935
- Mfr. Part No.:
- LC1D128F7
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 110V ac | |
| Number of Poles | 4 | |
| Contact Voltage | 690V ac | |
| Contact Current | 12A | |
| Power Rating | 1.56W | |
| Series | TeSyS D | |
| Mount Type | DIN Rail | |
| Function | Motor Control, Resistive Load | |
| Normal State Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 2 | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -5°C | |
| Operational Current Ie | 25A | |
| Contactor Application | Resistive Load | |
| Control Circuit Voltage Uc | 110V ac | |
| Maximum Operating Temperature | 60°C | |
| Depth | 90mm | |
| Length | 85mm | |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL | |
| Width | 45mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 110V ac | ||
Number of Poles 4 | ||
Contact Voltage 690V ac | ||
Contact Current 12A | ||
Power Rating 1.56W | ||
Series TeSyS D | ||
Mount Type DIN Rail | ||
Function Motor Control, Resistive Load | ||
Normal State Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 2 | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Minimum Operating Temperature -5°C | ||
Operational Current Ie 25A | ||
Contactor Application Resistive Load | ||
Control Circuit Voltage Uc 110V ac | ||
Maximum Operating Temperature 60°C | ||
Depth 90mm | ||
Length 85mm | ||
Standards/Approvals CCC, CSA, EAC, IEC, RoHS, UL | ||
Width 45mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Pole and Throw Configuration 4 | ||
Exempt
Schneider Electric LC1D Series Contactor, 110V AC Coil, 12A Contact Current Rating - LC1D128F7
This contactor is an essential element in electrical systems, designed to effectively control power circuits. Its 4-pole configuration is suitable for managing resistive loads and lowering operating costs across various applications. The inclusion of a 110V AC coil ensures compatibility with standard voltages and offers a broad operational range.
Features & Benefits
• Compact 4-pole design for efficient load management
• Voltage rating of 690V AC for versatility
• 12A contact rating for adequate operational capacity
• Easy installation on DIN rail for quick setup
• Green Premium certification highlights environmental performance
• Auxiliary contact configuration to enhance functionality
Applications
• Control of motors in industrial processes
• Switching of resistive loads in automation systems
• Common use in HV AC systems for effective operation
• Utilised in control panels for streamlined power management
What types of loads is it suitable for?
This unit manages resistive loads, making it ideal for industrial and automation applications.
How to install it?
Installation is straightforward; it can be mounted on a DIN rail for accessibility.
What is the operating temperature range?
The device functions effectively between -5°C and +60°C, accommodating diverse environmental conditions.
Does it come with protective features?
Yes, it includes an integrated cover for added safety during operation.
Is it compatible with other auxiliary devices?
It supports auxiliary contact configurations, allowing for enhanced control and additional functionalities.
