Durakool CHV800 Contactor, 24V dc Coil, 1-Pole, 800 A, 9 kW, NO, 1kV dc

RS stock no.:: 276-5941
Mfr. Part No.:: CHV-801
Manufacturer:: Durakool

Durakool CHV800 Contactor, 24V dc Coil, 1-Pole, 800 A, 9 kW, NO, 1kV dc

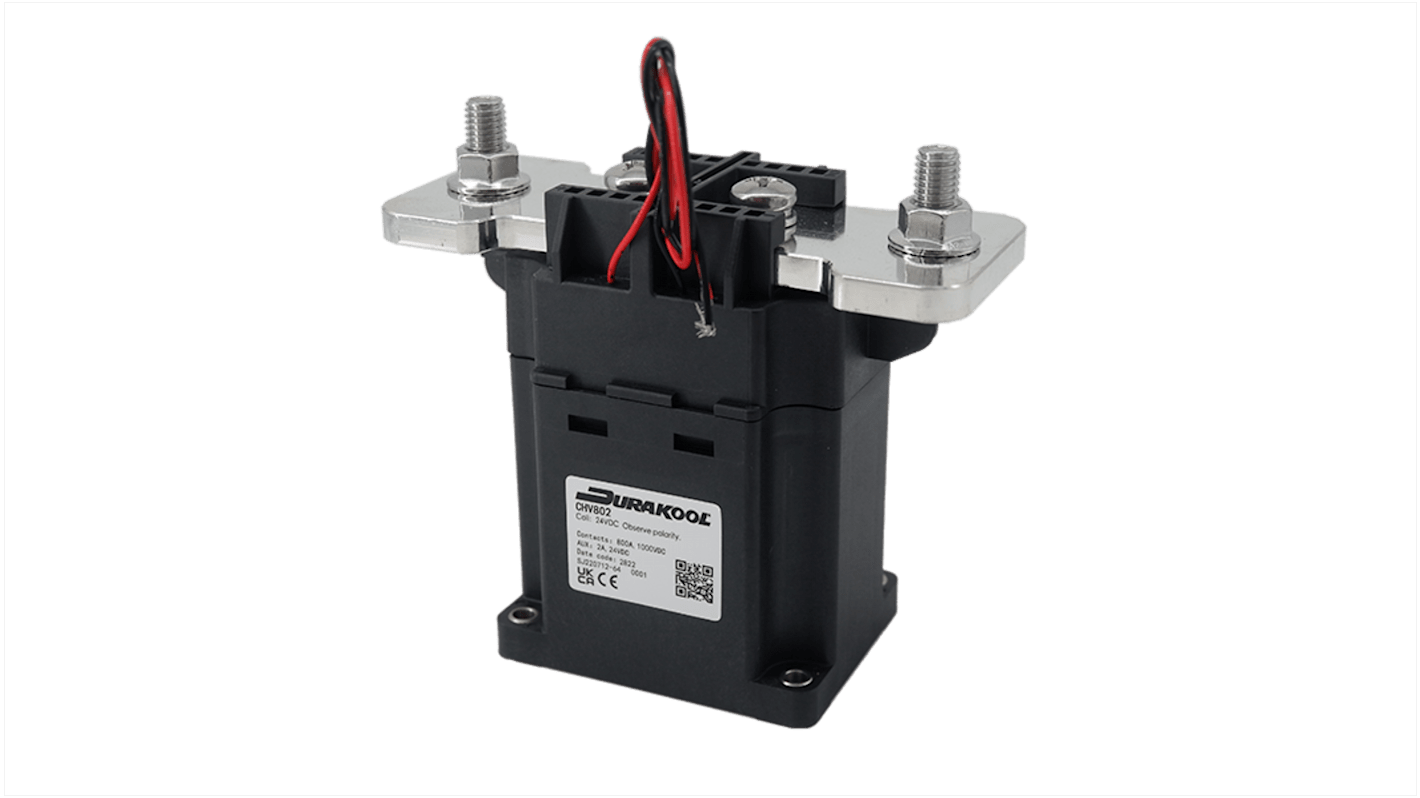

Image representative of range

Subtotal (1 box of 2 units)*

R 25 277,94

(exc. VAT)

R 29 069,63

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box	Per unit*
1 +	R 25,277.94	R 12,638.97

*price indicative

RS stock no.:: 276-5941
Mfr. Part No.:: CHV-801
Manufacturer:: Durakool

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Durakool
	Coil Voltage	24V dc
	Product Type	Contactor
	Number of Poles	1
	Contact Voltage	1kV dc
	Contact Current	800A
	Series	CHV800
	Power Rating	9kW
	Normal State Configuration	NO
	Minimum Operating Temperature	-40°C
	Operational Current Ie	800A
	Maximum Operating Temperature	85°C
	Standards/Approvals	UKCA, RoHS, cULus, CE
	Depth	67mm
	Length	146mm
	Width	67mm
	Pole and Throw Configuration	SPST

	Select all
	Brand Durakool
	Coil Voltage 24V dc
	Product Type Contactor
	Number of Poles 1
	Contact Voltage 1kV dc
	Contact Current 800A
	Series CHV800
	Power Rating 9kW
	Normal State Configuration NO
	Minimum Operating Temperature -40°C
	Operational Current Ie 800A
	Maximum Operating Temperature 85°C
	Standards/Approvals UKCA, RoHS, cULus, CE
	Depth 67mm
	Length 146mm
	Width 67mm
	Pole and Throw Configuration SPST

Datasheet - CHV-801

COO (Country of Origin):: CN

The Durakool HVDC contactors has contacts sealed in inert gas with ceramic arc chamber.

Magnet arc blowout

Dual coil economiser as standard

Durakool CHV800 Contactor, 24V dc Coil, 1-Pole, 800 A, 9 kW, NO, 1kV dc
