Durakool CHV400 Contactor, 12V dc Coil, 1-Pole, 400 A, 5 kW, NO, 1.5kV dc

RS stock no.:: 276-5933
Mfr. Part No.:: CHV-401
Manufacturer:: Durakool

Durakool CHV400 Contactor, 12V dc Coil, 1-Pole, 400 A, 5 kW, NO, 1.5kV dc

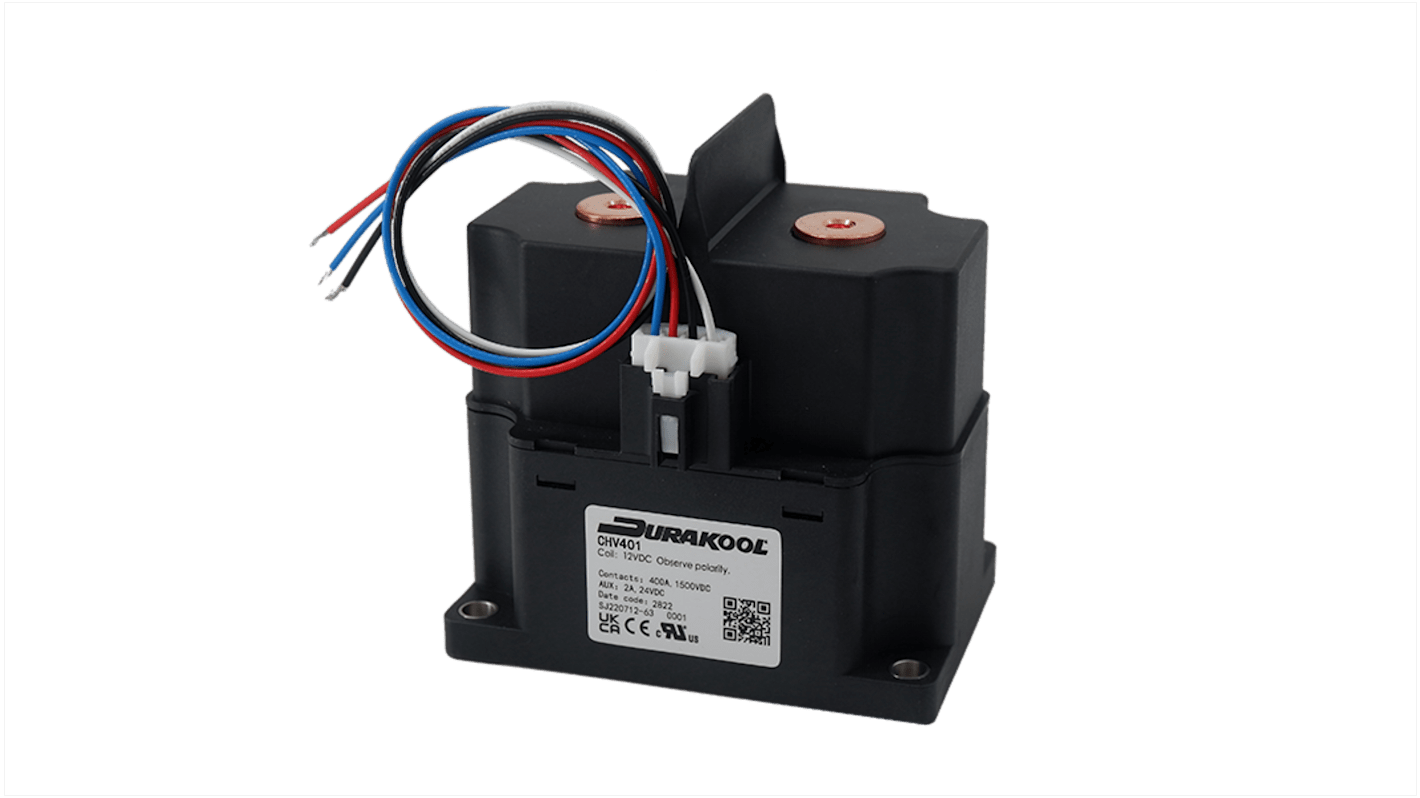

Image representative of range

Subtotal (1 box of 2 units)*

R 18 262,19

(exc. VAT)

R 21 001,52

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

Shipping from 24 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box	Per unit*
1 +	R 18,262.19	R 9,131.095

*price indicative

RS stock no.:: 276-5933
Mfr. Part No.:: CHV-401
Manufacturer:: Durakool

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Durakool
	Coil Voltage	12V dc
	Product Type	Contactor
	Number of Poles	1
	Contact Voltage	1.5kV dc
	Contact Current	400A
	Power Rating	5kW
	Series	CHV400
	Normal State Configuration	NO
	Minimum Operating Temperature	-40°C
	Operational Current Ie	400A
	Maximum Operating Temperature	85°C
	Length	104mm
	Depth	109mm
	Width	70mm
	Standards/Approvals	UKCA, RoHS, cULus, CE
	Pole and Throw Configuration	SPST

	Select all
	Brand Durakool
	Coil Voltage 12V dc
	Product Type Contactor
	Number of Poles 1
	Contact Voltage 1.5kV dc
	Contact Current 400A
	Power Rating 5kW
	Series CHV400
	Normal State Configuration NO
	Minimum Operating Temperature -40°C
	Operational Current Ie 400A
	Maximum Operating Temperature 85°C
	Length 104mm
	Depth 109mm
	Width 70mm
	Standards/Approvals UKCA, RoHS, cULus, CE
	Pole and Throw Configuration SPST

Datasheet - CHV-401

COO (Country of Origin):: CN

The Durakool HVDC contactors has contacts sealed in inert gas with ceramic arc chamber.

Magnet arc blowout

Dual coil economiser as standard
