Lovato Electric BFA018 Reversing Contactor, 400V Coil, 3-Pole, 18 A, 7.5 kW, 1 NC, 690V
- RS stock no.:
- 273-9134
- Mfr. Part No.:
- BFA01842400
- Manufacturer:
- Lovato Electric
Subtotal (1 unit)*
R 5 654,96
(exc. VAT)
R 6 503,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 13 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 5,654.96 |
*price indicative
- RS stock no.:
- 273-9134
- Mfr. Part No.:
- BFA01842400
- Manufacturer:
- Lovato Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Coil Voltage | 400V | |
| Product Type | Reversing Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 18A | |
| Power Rating | 7.5kW | |
| Series | BFA018 | |
| Function | Reversing | |
| Normal State Configuration | 1 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Contactor Application | Reversing | |
| Operational Current Ie | 18A | |
| Depth | 90mm | |
| Length | 83mm | |
| Standards/Approvals | CSA, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | |
| Width | 90mm | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Coil Voltage 400V | ||
Product Type Reversing Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 18A | ||
Power Rating 7.5kW | ||
Series BFA018 | ||
Function Reversing | ||
Normal State Configuration 1 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Contactor Application Reversing | ||
Operational Current Ie 18A | ||
Depth 90mm | ||
Length 83mm | ||
Standards/Approvals CSA, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 | ||
Width 90mm | ||
- COO (Country of Origin):
- IT

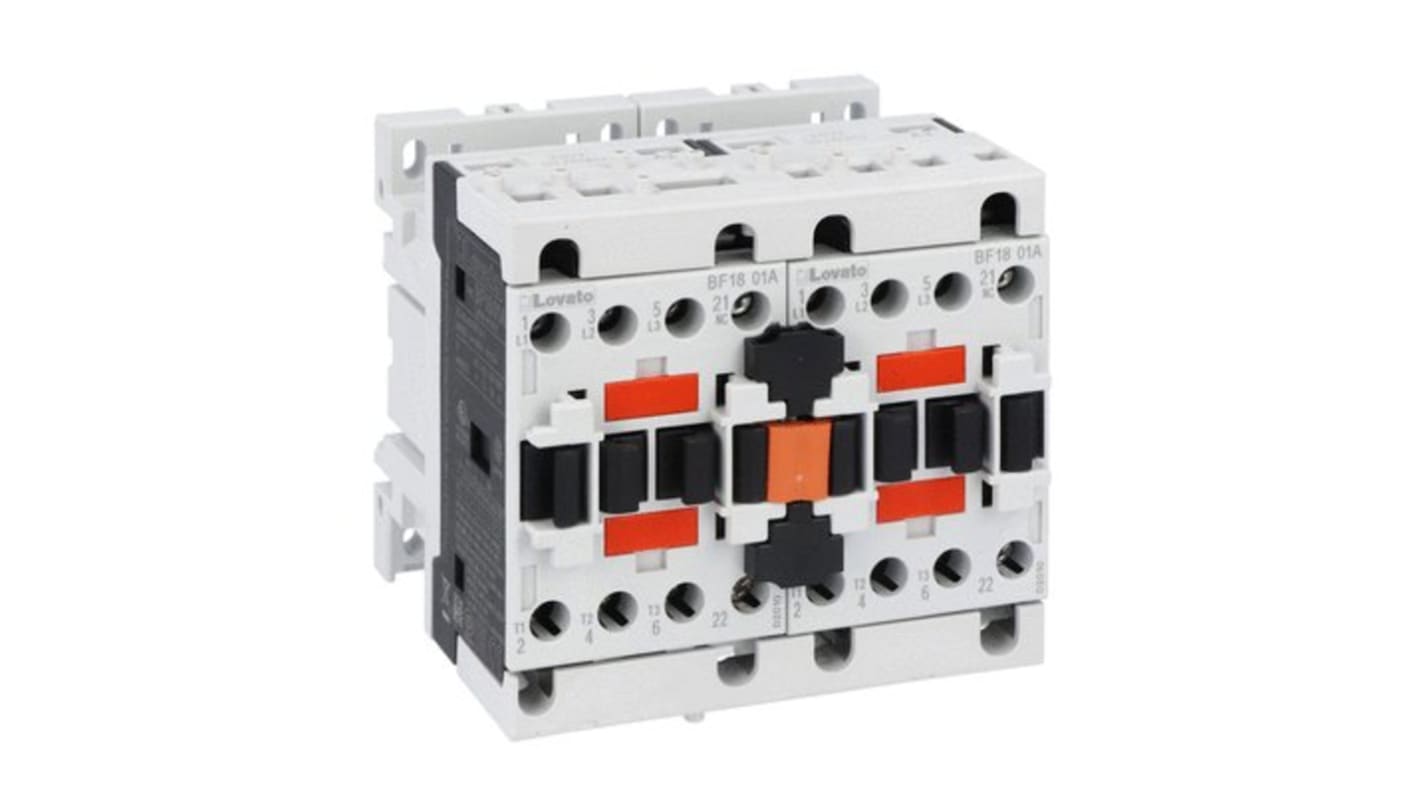

The Lovato reversing contactor assembly with ac coil, it has an external interlock with power and auxiliary wiring. It has built in one normally closed auxiliary contacts.
cULus certified
