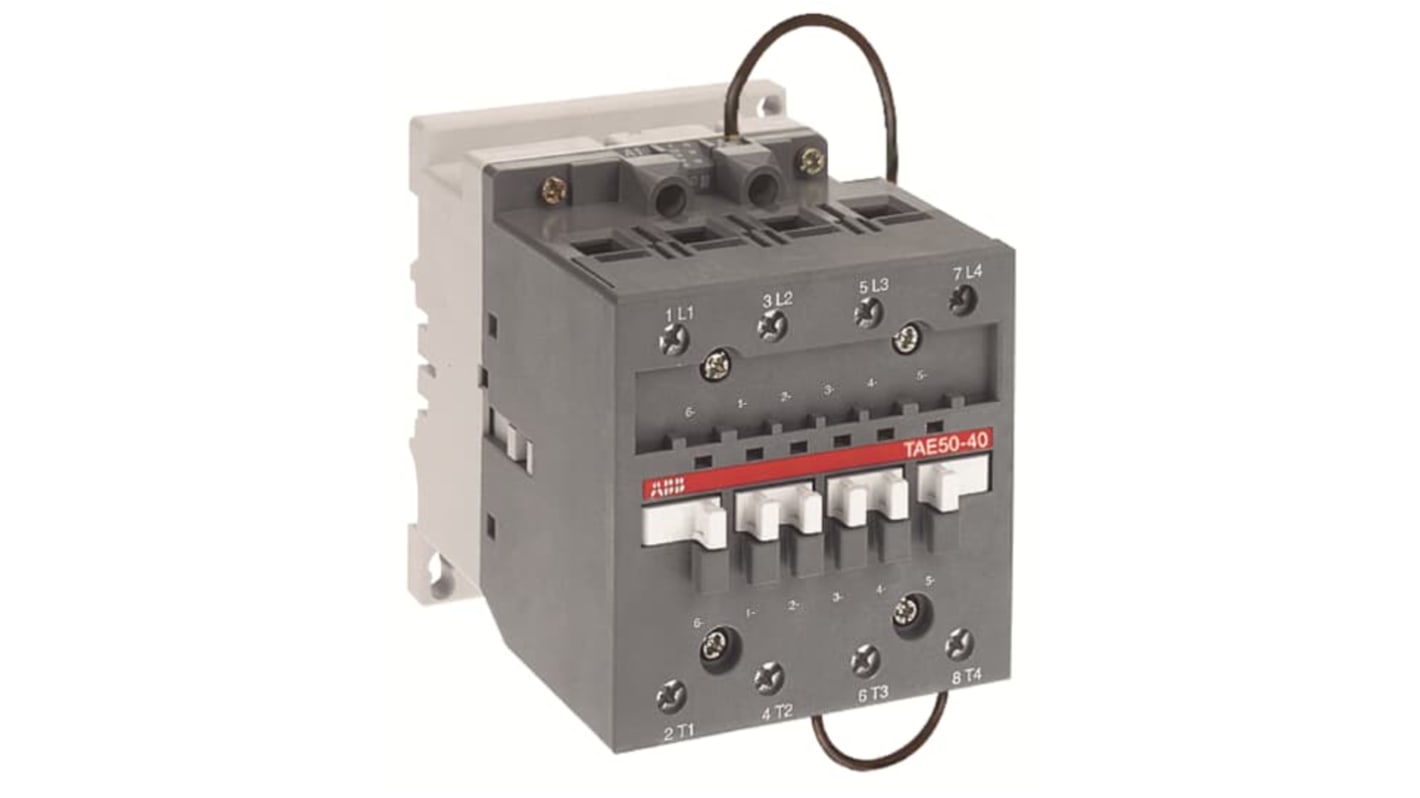

ABB TAE Contactor, 143V dc, 77 V dc Coil, 4-Pole, 100 A, 30 kW 143V dc, 77 V dc, 4 NO, 1kV
- RS stock no.:
- 258-9556
- Mfr. Part No.:
- 1SBL359261R6200
- Manufacturer:
- ABB
Subtotal (1 unit)*
R 8 989,13
(exc. VAT)
R 10 337,50
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 8,989.13 |
*price indicative
- RS stock no.:
- 258-9556
- Mfr. Part No.:
- 1SBL359261R6200
- Manufacturer:
- ABB
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 143, 77V dc | |
| Number of Poles | 4 | |
| Contact Voltage | 1kV | |
| Contact Current | 100A | |
| Series | TAE | |
| Power Rating | 30kW | |
| Function | Power Controller | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Terminal Type | Screw | |
| Contactor Application | Controlling non-inductive, slightly inductive Loads | |
| Operational Current Ie | 100A | |
| Minimum Operating Temperature | -40°C | |
| Control Circuit Voltage Uc | 143, 77V dc | |
| Maximum Operating Temperature | 70°C | |
| Width | 104mm | |
| Standards/Approvals | IEC 60947-4-1, UL/CSA | |
| Length | 120mm | |
| Depth | 110mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 143, 77V dc | ||
Number of Poles 4 | ||
Contact Voltage 1kV | ||
Contact Current 100A | ||
Series TAE | ||
Power Rating 30kW | ||
Function Power Controller | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Terminal Type Screw | ||
Contactor Application Controlling non-inductive, slightly inductive Loads | ||
Operational Current Ie 100A | ||
Minimum Operating Temperature -40°C | ||
Control Circuit Voltage Uc 143, 77V dc | ||
Maximum Operating Temperature 70°C | ||
Width 104mm | ||
Standards/Approvals IEC 60947-4-1, UL/CSA | ||
Length 120mm | ||
Depth 110mm | ||
- COO (Country of Origin):
- FR
1SBL359261R6200
The ABB contactor with 1 built-in auxiliary contact and screw terminals, managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. TAE contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Close to contactor fitted with thermal O/L relay
Screw terminals
