Allen Bradley 100-E Contactor, 100V dc, 250 V dc Coil, 3-Pole, 146 A, 75 kW 250V dc, 1 NO/1 NC, 400V ac

View all Contactors

Subtotal (1 unit)*

R 12 817,02

(exc. VAT)

R 14 739,57

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 12,817.02

*price indicative

RS stock no.:
183-4550
Distrelec Article No.:
302-27-081
Mfr. Part No.:
100-E146ED11
Manufacturer:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Product Type

Contactor

Coil Voltage

100, 250V dc

Number of Poles

3

Contact Voltage

400V ac

Contact Current

146A

Power Rating

75kW

Series

100-E

Mount Type

DIN Rail

Function

Motor Control

Normal State Configuration

1 NO/1 NC

Number of Auxiliary Contacts

2

Auxiliary Contact Configuration

1 NO/1 NC

Terminal Type

Bar Connections

Minimum Operating Temperature

-40°C

Operational Current Ie

146A

Control Circuit Voltage Uc

250V dc

Contactor Application

Direct-on-Line (DoL)

Maximum Operating Temperature

70°C

Standards/Approvals

EN/IEC

Width

143mm

Length

90mm

Depth

150mm

Pole and Throw Configuration

3

COO (Country of Origin):
SE

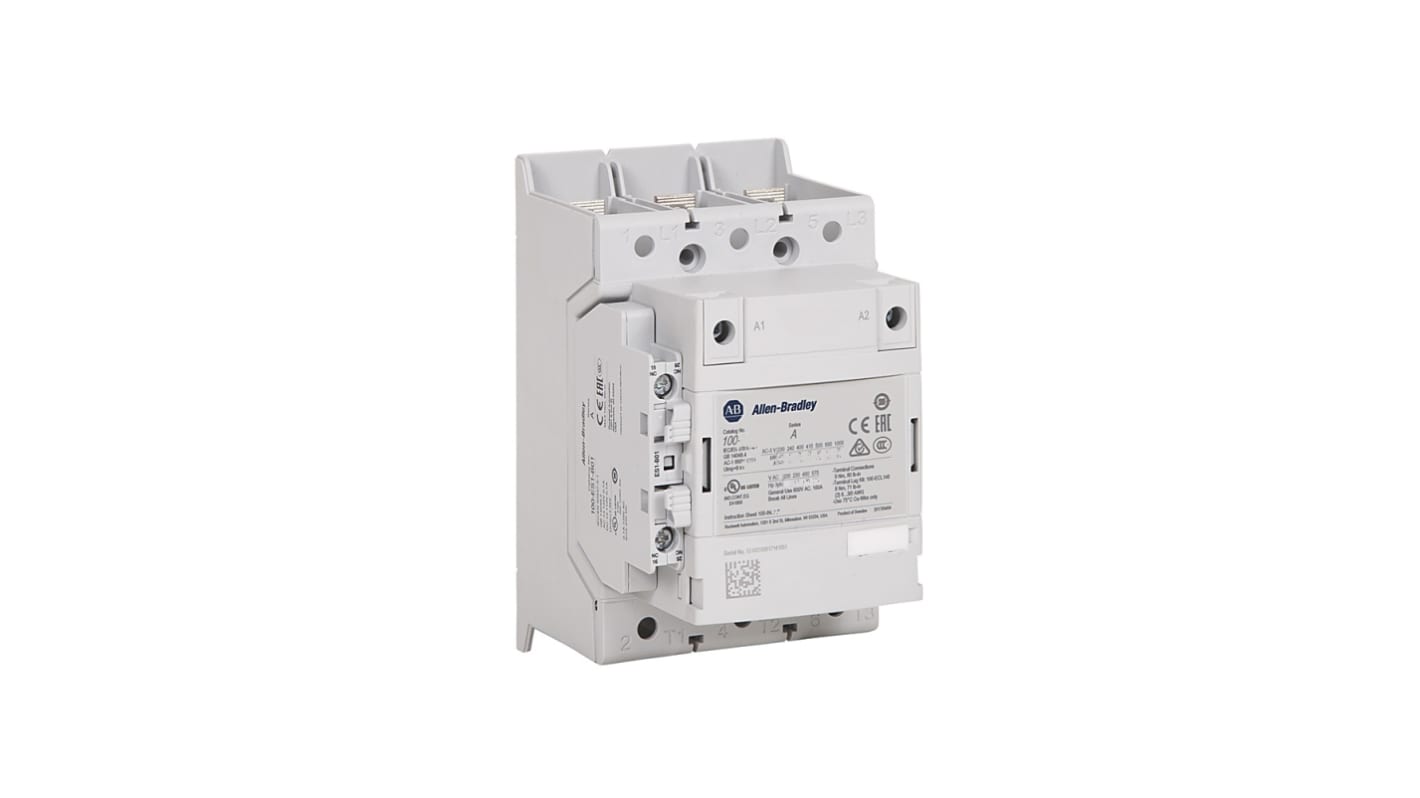

Allen Bradley Contactor, DOL, 2 Auxiliary Contacts - 100-E146ED11


For reliable motor control in high-voltage applications, opt for this DOL contactor from Rockwell Automation's Allen Bradley range. It's specifically designed to turn a motor on and off with rapidly switching contacts that help to prevent electrical arcs from causing damage to attached equipment. You can directly mount up to two auxiliary contacts onto this device, which saves you space in your control cabinet. This versatile contactor has a wide coil voltage range of 100 to 250V DC for wide compatibility with your systems.

• Operating temperature range of -40°C to +70°C for use in demanding conditions

• Includes a PLC interface for easy connection to a logic controller

• Space-saving dimensions of 90 (L) x 142.5 (W) x 150mm (D), so suitable for compact control panels

• Made from environmentally-friendly materials for a reduced carbon footprint

Standards and Certifications


• IEC

• EN

• UL

• CCC

• EAC

• KC

100-E MCS-E Contactor ,146A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil w/ PLC Interface , 1 N.O. 1 N.C.

How does a contactor work?


A contactor has an electromagnetic coil that creates a magnetic field when a current passes through it. This causes the armature of the contactor to move, which then either opens or closes its electrical contacts.
