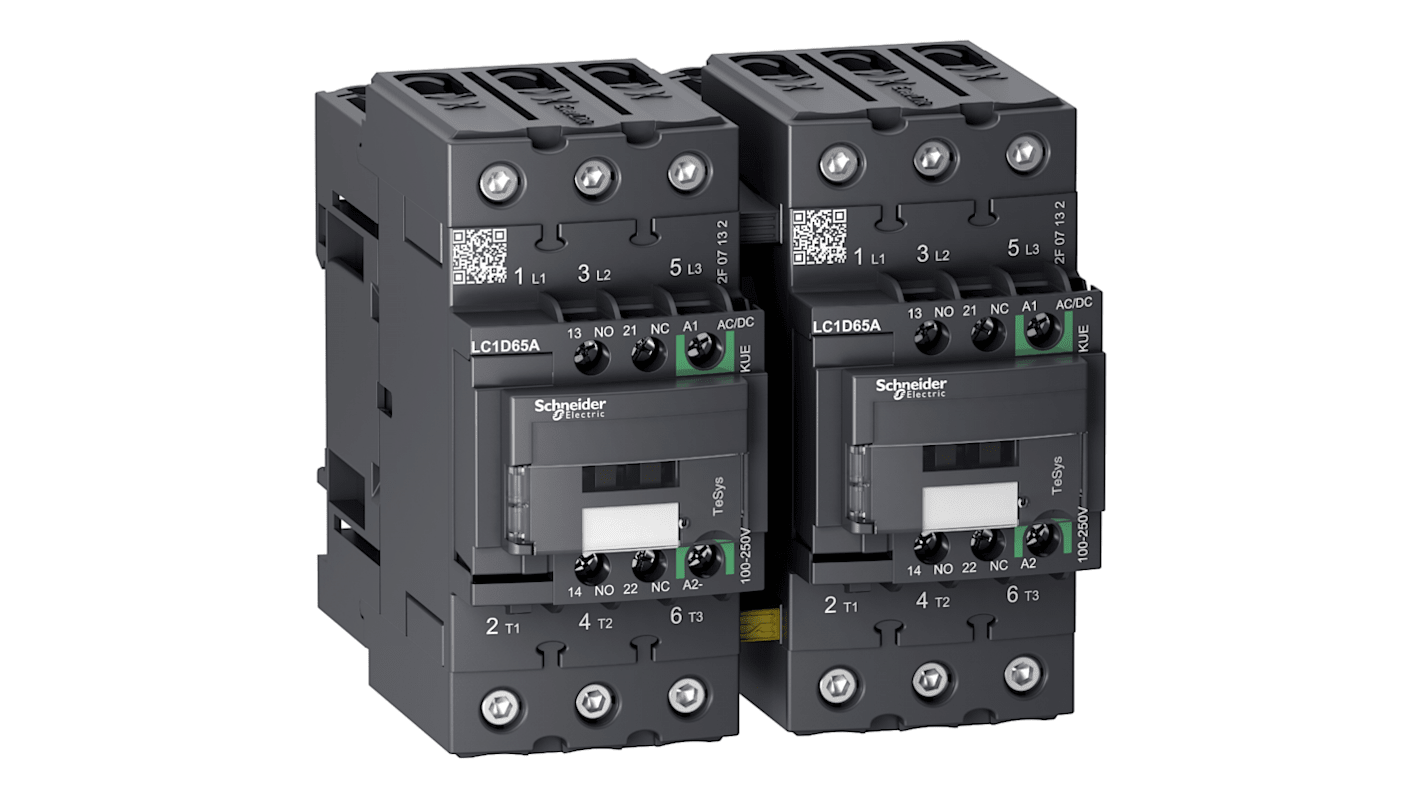

Schneider Electric TeSys D LC2D Reversing Contactor, 230 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac

RS stock no.:: 135-3998
Mfr. Part No.:: LC2D65AKUE
Manufacturer:: Schneider Electric

Schneider Electric TeSys D LC2D Reversing Contactor, 230 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 690 V ac

Price Each**

R 25 659,75

(exc. VAT)

R 29 508,71

(inc. VAT)

On back order for despatch 2025/03/11*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Not Available for premium delivery

Units	Per unit
1 +	R 25 659,75

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:: 135-3998
Mfr. Part No.:: LC2D65AKUE
Manufacturer:: Schneider Electric

Schneider Electric LC2D TeSys D Reversing Contactors.

TeSys D reversing Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LC2D series is preassembled with reversing power busbar and has been designed for motor control or resistive load applications. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

Built-in auxiliary contacts for added switching capability

Pre-installed interlock

Screw connections: IP20 finger-safe terminals with both North American and International terminal markings

Can be panel mounted with screws or DIN Rail mounted

Easily installed accessories

Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.

Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What is a reversing contactor?

A reversing contactor is an assembly of two of standard contactors, with a mechanical and electrical interlock connecting them. The interlocks allow only one contactor to be closed (giving power supply to the motor) at any time.

Is the TeSys D range a double break pole type contactor?

Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

LC2D65AKUE LCD2 TeSys D Green Reversing Contactor.

Reversing Contactor.

Motor Control, Resistive load applications.

AC-1, AC-3 Category.

Preassembled with reversing power busbar.

Ue Rated voltage <= 690 V AC 25...400 Hz for power circuit

Rated current 80 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit, 65 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit.

Circuit Voltage 100...250 V, DC 100...250 V AC 50/60 Hz.

1 NO + 1 NC Auxiliary contact.

Overvoltage category III.

Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947.

Complete with a protective cover.

Mechanical interlocking.

Plate and Rail mounting.

Screw clamp terminals, screw connectors.

IP20 front face conforming to IEC 60529.

Standards

EN/IEC 60947-4-1, EN/IEC 60947-5-1.

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	65 A
Range	TeSys D
Power Rating	30 kW
Series	LC2D
Function	Reversing
Normal State Configuration	3NO
Auxiliary Contact Configuration	1NO + 1NC
Number Of Auxiliary Contacts	2
Terminal Type	Screw
Width	120mm
Length	119mm
Depth	122mm
Better World Verification	Green Premium
Better World Product	Yes
Maximum Operating Temperature	+60°C
Pole and Throw Configuration	3PST
Mounting Style	DIN Rail Mount
Minimum Operating Temperature	-25°C
