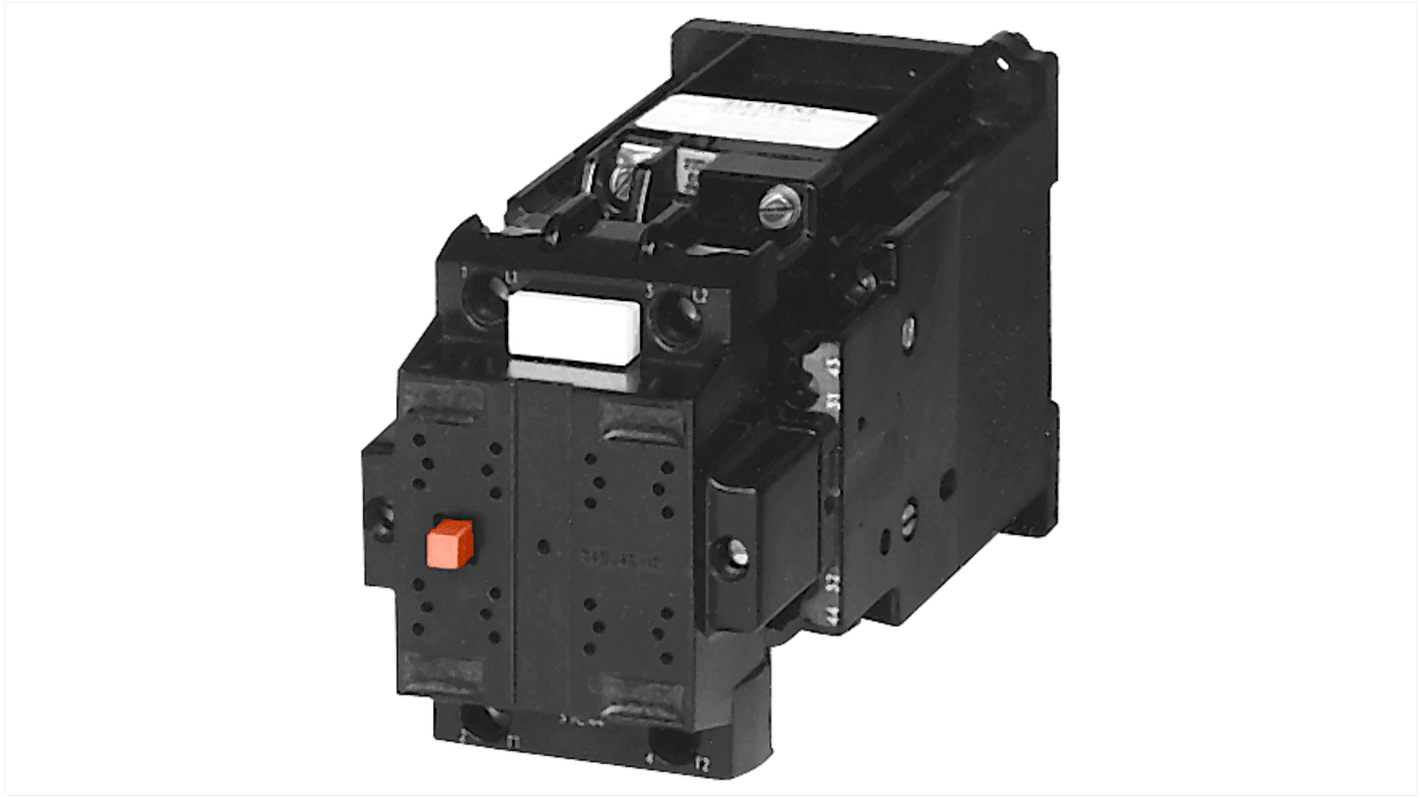

Siemens 3TC4 Contactor, 24 V dc Coil, 2-Pole, 32 A, 24 kW 24 V dc, 2 NC/2 NO, 750V
- RS stock no.:
- 154-464
- Mfr. Part No.:
- 3TC4417-0AL8
- Manufacturer:
- Siemens
Subtotal (1 unit)*
R 7 386,58
(exc. VAT)
R 8 494,57
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 7,386.58 |
*price indicative
- RS stock no.:
- 154-464
- Mfr. Part No.:
- 3TC4417-0AL8
- Manufacturer:
- Siemens
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Contactor | |
| Coil Voltage | 24 V dc | |
| Number of Poles | 2 | |
| Contact Voltage | 750V | |
| Contact Current | 32A | |
| Series | 3TC4 | |
| Power Rating | 24kW | |
| Mount Type | DIN Rail | |
| Function | Mirror Contact | |
| Normal State Configuration | 2 NC/2 NO | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Operational Current Ie | 32A | |
| Contactor Application | DC Operation | |
| Control Circuit Voltage Uc | 24 V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 145mm | |
| Length | 85mm | |
| Width | 70 mm | |
| Standards/Approvals | CCC, CE, CSA, EAC, IEC 60947-1, UKCA, UL A600/P600 | |
| Pole and Throw Configuration | 2P | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Contactor | ||
Coil Voltage 24 V dc | ||
Number of Poles 2 | ||
Contact Voltage 750V | ||
Contact Current 32A | ||
Series 3TC4 | ||
Power Rating 24kW | ||
Mount Type DIN Rail | ||
Function Mirror Contact | ||
Normal State Configuration 2 NC/2 NO | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Operational Current Ie 32A | ||
Contactor Application DC Operation | ||
Control Circuit Voltage Uc 24 V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Depth 145mm | ||
Length 85mm | ||
Width 70 mm | ||
Standards/Approvals CCC, CE, CSA, EAC, IEC 60947-1, UKCA, UL A600/P600 | ||
Pole and Throw Configuration 2P | ||
- COO (Country of Origin):
- DE
The Siemens advanced contactor offers a robust solution for controlling electrical circuits with precision and reliability. Designed to operate efficiently in demanding environments, it supports a wide voltage range and high operational currents, making it suitable for both DC-3 and DC-5 applications. With an operating temperature range spanning from -25 to +55 °C, it ensures superior performance across various conditions. The inclusion of auxiliary contacts enhances its functionality, providing additional control capabilities. This contactor is tailored for seamless integration into industrial systems, ensuring safety and efficiency while upholding the highest standards of technical excellence.
Designed with a compact footprint for confined spaces
Equipped with multiple auxiliary contacts for operational versatility
Features substantial shock resistance for industrial durability
Utilises screw terminals for easy and reliable connections
