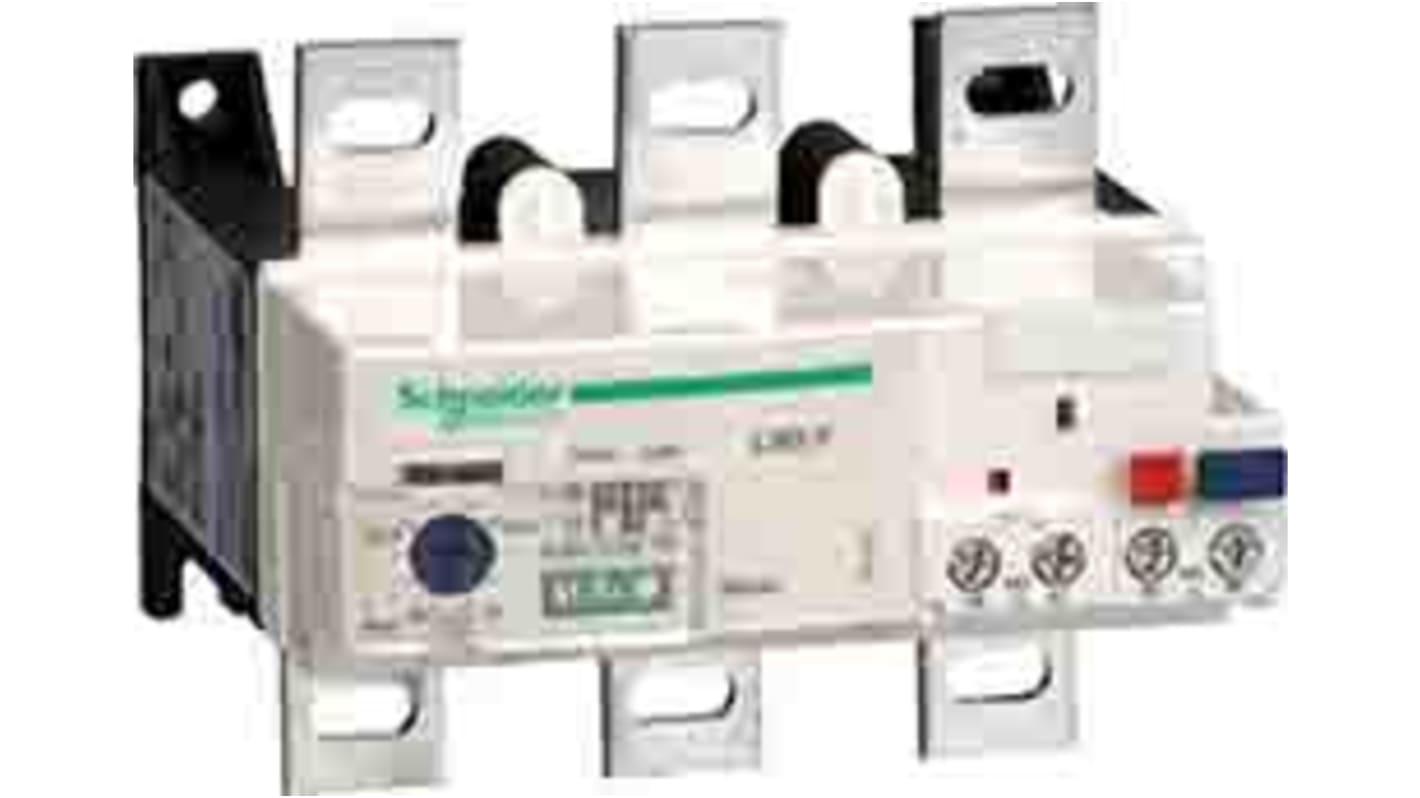

Schneider Electric, LR9F Thermal Overload Relay 1 NO/1 NC, 220A F.L.C, 5A Contact Rating, 110 kW, 32V
- RS stock no.:
- 211-1792
- Mfr. Part No.:
- LR9F5571
- Manufacturer:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
R 7,827.79
(exc. VAT)
R 9,001.96
(inc. VAT)
- RS stock no.:
- 211-1792
- Mfr. Part No.:
- LR9F5571
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 220A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 5A | |
| Series | LR9F | |
| Mount Type | Direct | |
| Power Rating | 110kW | |
| Terminal Type | Screw Clamp | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Manual | |
| IP Rating | IP20 | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 132 → 220 A | |
| Width | 115mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 101mm | |
| Maximum Operating Temperature | 70°C | |
| Contact Voltage | 1kV | |
| Depth | 123.5mm | |
| Standards/Approvals | VDE 0660, EN 60947-4-1, IEC 60255-8, IEC 60255-17, CSA, IEC 60947-4-1, UKCA, UL | |
| Control Voltage | 32V | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 220A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 5A | ||
Series LR9F | ||
Mount Type Direct | ||
Power Rating 110kW | ||
Terminal Type Screw Clamp | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Manual | ||
IP Rating IP20 | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 132 → 220 A | ||
Width 115mm | ||
Minimum Operating Temperature -20°C | ||
Length 101mm | ||
Maximum Operating Temperature 70°C | ||
Contact Voltage 1kV | ||
Depth 123.5mm | ||
Standards/Approvals VDE 0660, EN 60947-4-1, IEC 60255-8, IEC 60255-17, CSA, IEC 60947-4-1, UKCA, UL | ||
Control Voltage 32V | ||
- COO (Country of Origin):
- FR
The Schneider Electric TeSys Series is best suited for applications involving Motor Control and Starting of Motor. The Schneider Electric series is known for providing a better compatibility which makes it The Schneider Electric best choice for this application.
Easy maintenance checks, check The Schnieder Electric's tightening of cables through conducting thermographic testing and checking The Schnieder Electric's mechanical operation of The Schnieder Electric's product through manually operating The Schnieder E
