DiodesZetex 150 mA Constant Current Diode 2-Pin PDI123 60 V
- RS stock no.:
- 133-3334P
- Mfr. Part No.:
- AL5809-30QP1-7
- Manufacturer:
- DiodesZetex

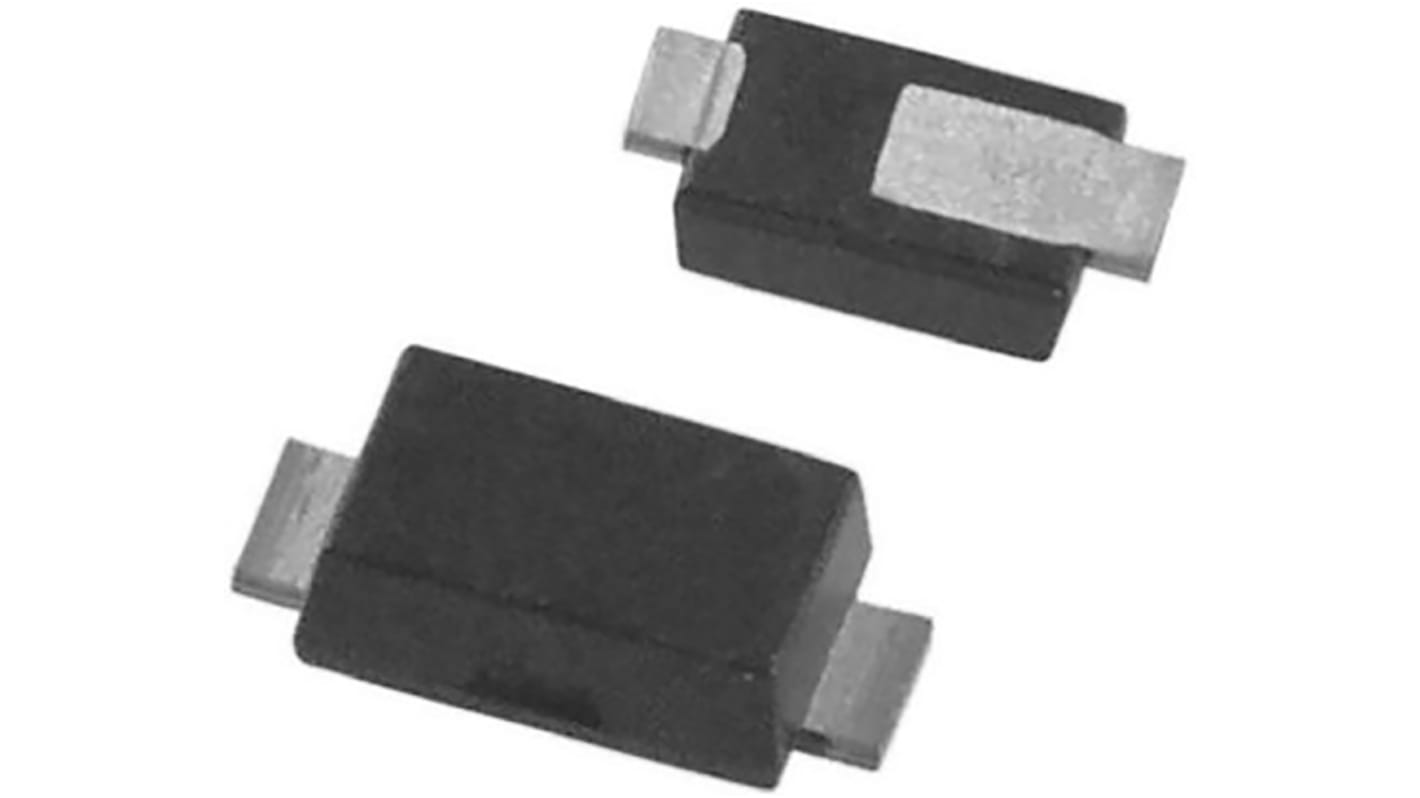

Image representative of range
Bulk discount available
View bulk pricing optionSubtotal 100 units (supplied on a continuous strip)*
R 491,40
(exc. VAT)
R 565,10
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 5,260 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 480 | R 4.914 |
| 500 - 980 | R 4.767 |
| 1000 - 2980 | R 4.576 |
| 3000 + | R 4.393 |
*price indicative
- RS stock no.:
- 133-3334P
- Mfr. Part No.:
- AL5809-30QP1-7
- Manufacturer:
- DiodesZetex
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Constant Current Diode | |
| Sub Type | 2-Terminal Constant Current LED Driver | |
| Accuracy | ±5 % | |
| Mount Type | Surface | |
| Package Type | PDI123 | |
| Pin Count | 2 | |
| Minimum Supply Voltage | 2.5V | |
| Maximum Supply Voltage | 60V | |
| Sensing Method | Low Side, High Side | |
| Series | AL5809 | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 150°C | |
| Length | 3mm | |
| Minimum Operating Temperature | -40°C | |
| Supply Current | 150mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Constant Current Diode | ||
Sub Type 2-Terminal Constant Current LED Driver | ||
Accuracy ±5 % | ||
Mount Type Surface | ||
Package Type PDI123 | ||
Pin Count 2 | ||
Minimum Supply Voltage 2.5V | ||
Maximum Supply Voltage 60V | ||
Sensing Method Low Side, High Side | ||
Series AL5809 | ||
Height 1mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 150°C | ||
Length 3mm | ||
Minimum Operating Temperature -40°C | ||
Supply Current 150mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Linear LED Drivers, Diodes Inc
The Linear LED Drivers provide a simple and effective solution to driving low-current, high-brightness LEDs.
LED Drivers, Diodes Inc
