TS3021ILT STMicroelectronics 1-Channel Comparator Push Pull O/P, 5.5 V 5.5 V 5-Pin SOT-23-5
- RS stock no.:
- 152-024
- Mfr. Part No.:
- TS3021ILT
- Manufacturer:
- STMicroelectronics

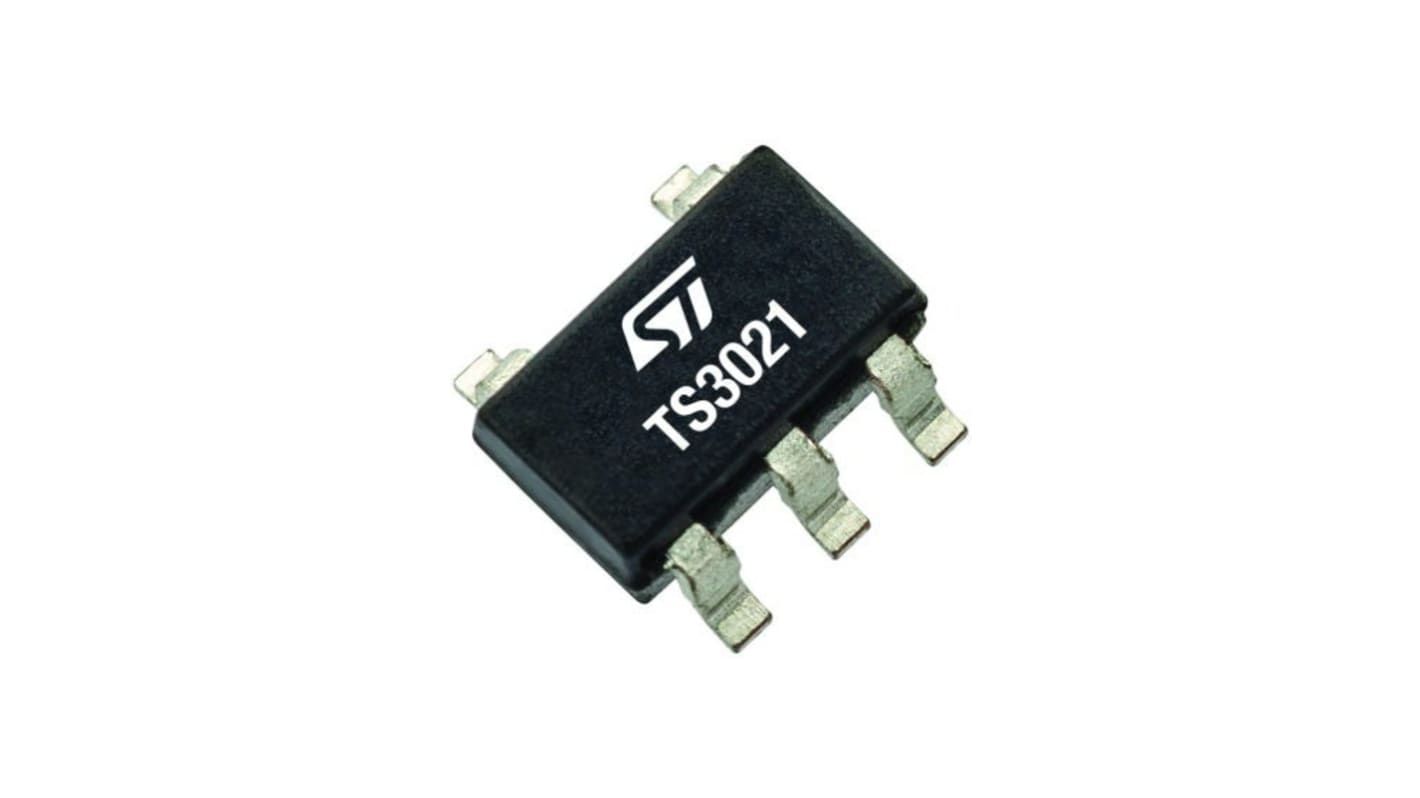

Image representative of range
Bulk discount available
Subtotal (1 tape of 5 units)*
R 102,09
(exc. VAT)
R 117,405
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 2,855 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | R 20.418 | R 102.09 |
| 50 - 95 | R 19.908 | R 99.54 |
| 100 - 495 | R 19.31 | R 96.55 |
| 500 - 995 | R 18.538 | R 92.69 |
| 1000 + | R 17.796 | R 88.98 |
*price indicative
- RS stock no.:
- 152-024
- Mfr. Part No.:
- TS3021ILT
- Manufacturer:
- STMicroelectronics
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Comparator Type | High Speed | |
| Product Type | Comparator | |
| Mount Type | Surface | |
| Package Type | SOT-23-5 | |
| Output Type | Push Pull | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | 40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Height | 3mm | |
| Series | TS3021 | |
| Length | 3mm | |
| Width | 1.45 mm | |
| Supply Current | 105μA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Comparator Type High Speed | ||
Product Type Comparator | ||
Mount Type Surface | ||
Package Type SOT-23-5 | ||
Output Type Push Pull | ||
Number of Channels 1 | ||
Pin Count 5 | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature 40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Height 3mm | ||
Series TS3021 | ||
Length 3mm | ||
Width 1.45 mm | ||
Supply Current 105μA | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics Single comparator features high-speed response time with rail-to-rail inputs. With a supply voltage specified from 2 to 5 V, this comparator can operate over a wide temperature range -40 °C to 125 °C. This comparator offers micro power consumption as low as a few tens of microamperes thus providing an excellent ratio of power consumption current versus response time.
SMD packages
Automotive qualification
Rail-to-rail inputs
Push-pull outputs
