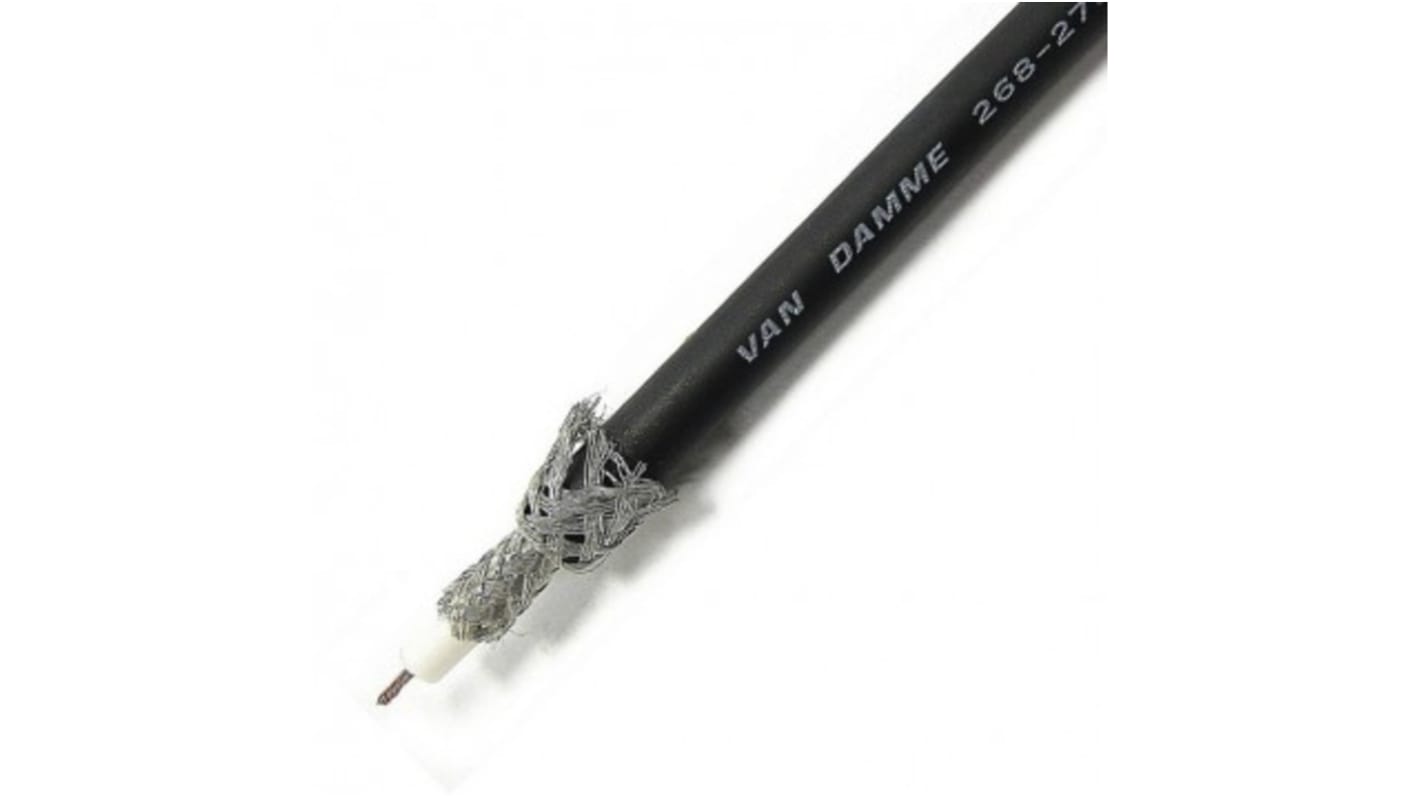

Van Damme HD Vision Series, 100 m, RG59/U Coaxial SDI Coaxial Cable 75 Ω, Black, Unterminated
- RS stock no.:
- 768-2145
- Mfr. Part No.:
- 268-275-000
- Manufacturer:
- Van Damme
Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
R 13 693,56
(exc. VAT)
R 15 747,59
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 3 | R 13,693.56 | R 136.936 |
| 4 - 7 | R 13,351.22 | R 133.512 |
| 8 - 11 | R 12,950.68 | R 129.507 |
| 12 + | R 12,432.65 | R 124.327 |
*price indicative
- RS stock no.:
- 768-2145
- Mfr. Part No.:
- 268-275-000
- Manufacturer:
- Van Damme
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Product Type | SDI Coaxial Cable | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG59/U | |
| American Wire Gauge | 22AWG | |
| Voltage | 1000V | |
| Outside Diameter | 7mm | |
| Characteristic Impedance | 75Ω | |
| Minimum Operating Temperature | -15°C | |
| Conductor Type | Stranded | |
| Cable Length | 100m | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, IEC, REACH | |
| Jacket Colour | Black | |
| Conductor Material | Bare Copper | |
| Series | HD Vision | |
| Jacket Material | Polyethylene | |
| Core Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Van Damme | ||
Product Type SDI Coaxial Cable | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG59/U | ||
American Wire Gauge 22AWG | ||
Voltage 1000V | ||
Outside Diameter 7mm | ||
Characteristic Impedance 75Ω | ||
Minimum Operating Temperature -15°C | ||
Conductor Type Stranded | ||
Cable Length 100m | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, IEC, REACH | ||
Jacket Colour Black | ||
Conductor Material Bare Copper | ||
Series HD Vision | ||
Jacket Material Polyethylene | ||
Core Strands 19 | ||
- COO (Country of Origin):
- TW
HD Vision Flexible Digital coaxial cables
These two single coaxial cables suitable for analogue, SDI and HD-SDI trasmission are based around industry standard RG6/U and RG59/U with stranded centre conductor for flexible use and are ideal for use as patchcords, shorter HD-SDI cables and cable reel systems.
