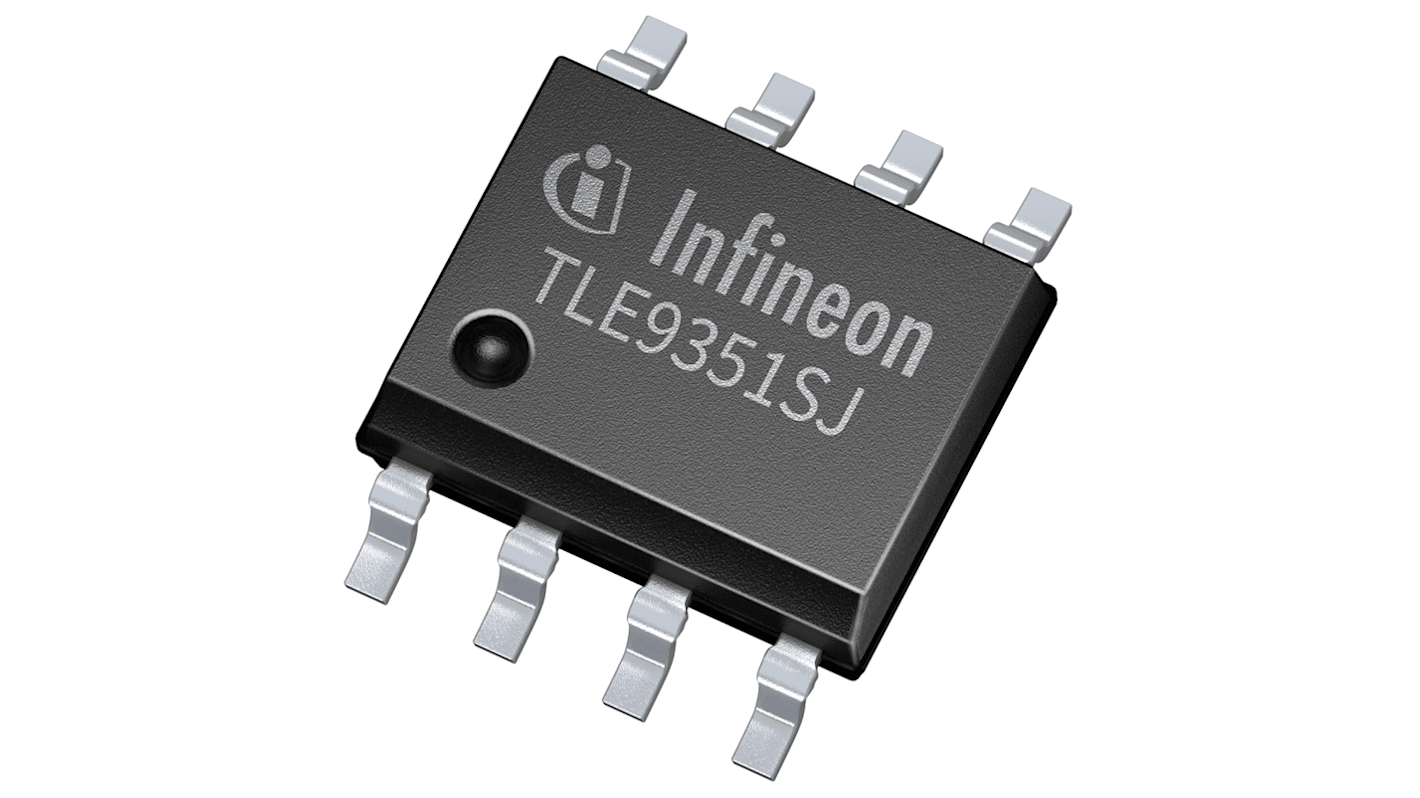

Infineon, CAN Caps 5 Mbps, 8-Pin PG-DSO-8
- RS stock no.:
- 273-7555
- Mfr. Part No.:
- TLE9351SJXTMA1
- Manufacturer:
- Infineon
Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
R 110,01
(exc. VAT)
R 126,51
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 2,500 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | R 22.002 | R 110.01 |
| 50 - 95 | R 21.452 | R 107.26 |
| 100 - 245 | R 20.808 | R 104.04 |
| 250 - 995 | R 19.976 | R 99.88 |
| 1000 + | R 19.176 | R 95.88 |
*price indicative
- RS stock no.:
- 273-7555
- Mfr. Part No.:
- TLE9351SJXTMA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | CAN Caps | |
| Maximum Data Rate | 5Mbps | |
| Number of Transceivers | 1 | |
| Sub Type | 1/1 Half-Duplex CAN Transceiver | |
| Power Down Mode | Yes | |
| Supply Current | 5mA | |
| Mount Type | Surface | |
| Package Type | PG-DSO-8 | |
| Interface Type | ISO 7637 | |
| Pin Count | 8 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | ISO 7637, AEC‑Q100, SAE J1939, RoHS, ISO 11898‑2/‑5 | |
| Width | 3.9mm | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Series | TLE9351SJ | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type CAN Caps | ||
Maximum Data Rate 5Mbps | ||
Number of Transceivers 1 | ||
Sub Type 1/1 Half-Duplex CAN Transceiver | ||
Power Down Mode Yes | ||
Supply Current 5mA | ||
Mount Type Surface | ||
Package Type PG-DSO-8 | ||
Interface Type ISO 7637 | ||
Pin Count 8 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals ISO 7637, AEC‑Q100, SAE J1939, RoHS, ISO 11898‑2/‑5 | ||
Width 3.9mm | ||
Height 1.75mm | ||
Length 4.9mm | ||
Series TLE9351SJ | ||
Automotive Standard AEC-Q100 | ||
The Infineon High speed CAN transceiver used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfil the requirements of ISO 11898 2 2016 physical layer specification as well as SAE J1939 and SAE J2284. As an interface between the physical bus layer and the HS CAN protocol controller, the CAN transceiver is designed to protect the microcontroller against interferences generated inside the network. A very high ESD robustness and the optimized RF immunity allows the use in automotive applications without additional protection devices, such as suppressor diodes or common mode chokes.
RoHS compliant
TxD time out function
Over temperature protection
Protected against automotive transients
Stand by mode with minimized quiescent current
