Infineon TLE9350VSJXTMA1, CAN Transceiver 5 Mbps, 8-Pin DSO-8

RS stock no.:: 258-4151
Mfr. Part No.:: TLE9350VSJXTMA1
Manufacturer:: Infineon

Infineon TLE9350VSJXTMA1, CAN Transceiver 5 Mbps, 8-Pin DSO-8

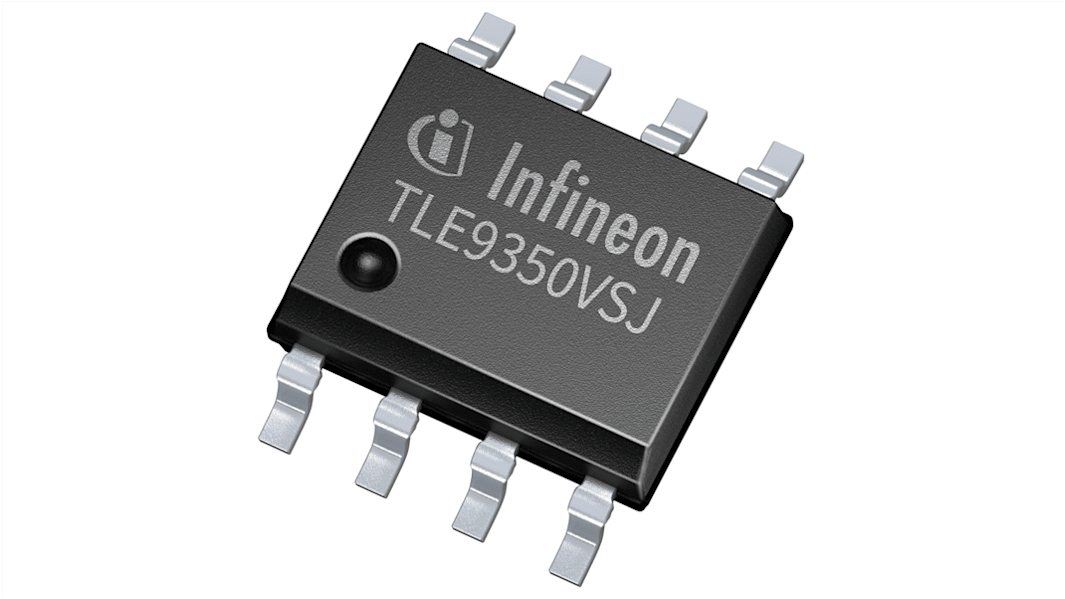

Image representative of range

Bulk discount available

Subtotal (1 pack of 5 units)*

R 109,55

(exc. VAT)

R 126,00

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

2,250 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 5	R 21.91	R 109.55
10 - 95	R 21.362	R 106.81
100 - 245	R 20.722	R 103.61
250 - 495	R 19.894	R 99.47
500 +	R 19.098	R 95.49

*price indicative

RS stock no.:: 258-4151
Mfr. Part No.:: TLE9350VSJXTMA1
Manufacturer:: Infineon

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	CAN Transceiver
	Maximum Data Rate	5Mbps
	Number of Transceivers	1
	Sub Type	Interface IC
	Power Down Mode	High Speed
	Supply Current	34mA
	Mount Type	Surface
	Interface Type	CAN
	Package Type	DSO-8
	Pin Count	8
	Minimum Supply Voltage	4.75V
	Maximum Supply Voltage	5.25V
	Minimum Operating Temperature	-40°C
	ESD Protection	Yes
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Series	TLE
	Automotive Standard	AEC-Q100

	Select all
	Brand Infineon
	Product Type CAN Transceiver
	Maximum Data Rate 5Mbps
	Number of Transceivers 1
	Sub Type Interface IC
	Power Down Mode High Speed
	Supply Current 34mA
	Mount Type Surface
	Interface Type CAN
	Package Type DSO-8
	Pin Count 8
	Minimum Supply Voltage 4.75V
	Maximum Supply Voltage 5.25V
	Minimum Operating Temperature -40°C
	ESD Protection Yes
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Series TLE
	Automotive Standard AEC-Q100

Datasheet - TLE9350VSJXTMA1

The Infineon high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfil the requirements of ISO 11898-2:2016 physical layer specification as well as SAE J1939 and SAE J2284. The high speed CAN transceiver is available in a RoHS compliant, halogen free PG-DSO-8 package. As an interface between the physical bus layer and the HS CAN protocol controller, the high speed CAN transceiver is designed to protect the microcontroller against interferences generated inside the network. A very high ESD robustness and the optimized RF immunity allows the use in automotive applications without additional protection devices, such as suppressor diodes or common mode chokes.

TxD time-out function

Very low CAN bus leakage current in power-down state

Over temperature protection

Protected against automotive transients according to ISO 7637 and SAE J2962-2

Power-save mode

Green Product (RoHS compliant)
