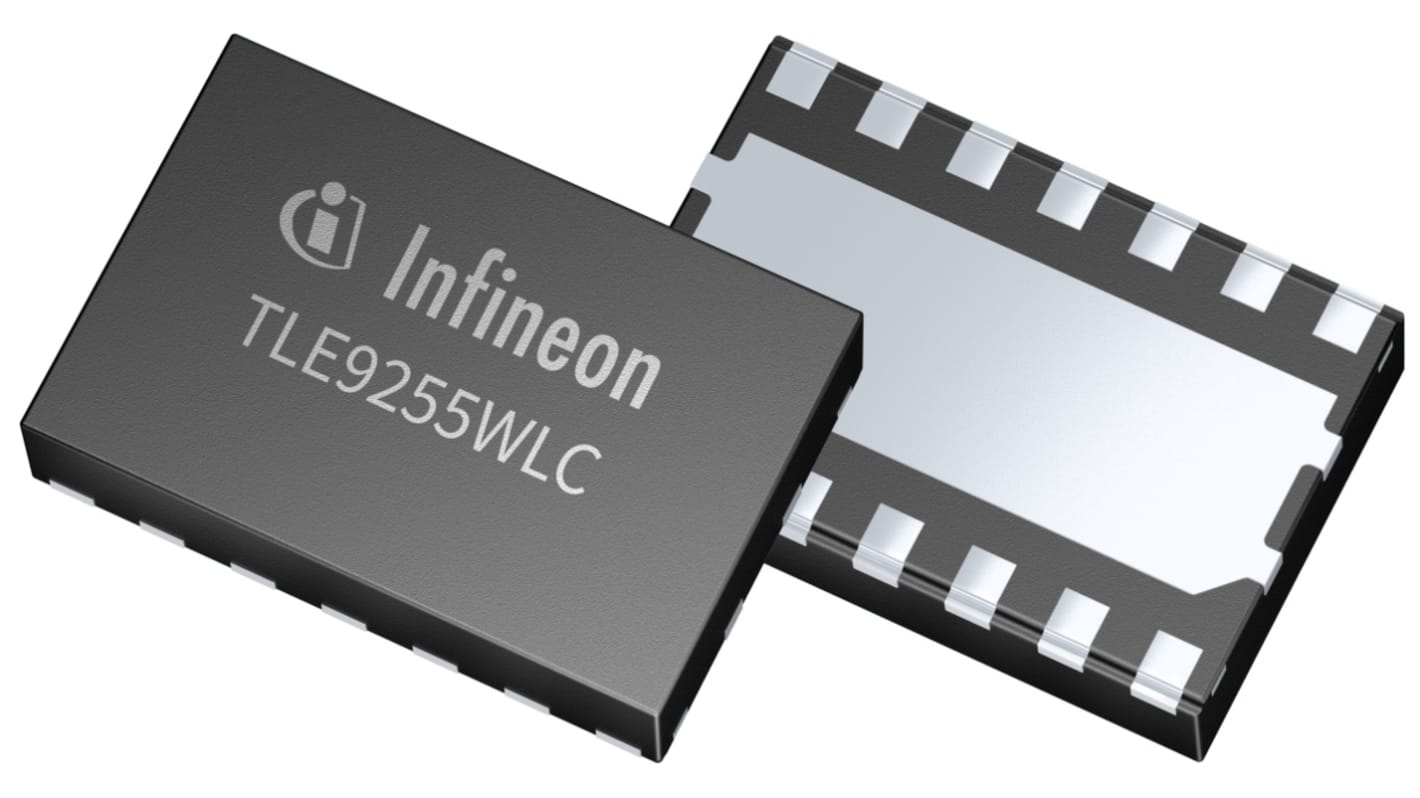

Infineon TLE9255WLCXUMA1, Transceiver 5 Mbps, 14-Pin TSON
- RS stock no.:
- 242-0309
- Mfr. Part No.:
- TLE9255WLCXUMA1
- Manufacturer:
- Infineon
Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
R 90,65
(exc. VAT)
R 104,248
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 4,958 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | R 45.325 | R 90.65 |
| 10 - 98 | R 44.19 | R 88.38 |
| 100 - 248 | R 42.865 | R 85.73 |
| 250 - 498 | R 41.15 | R 82.30 |
| 500 + | R 39.505 | R 79.01 |
*price indicative
- RS stock no.:
- 242-0309
- Mfr. Part No.:
- TLE9255WLCXUMA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Data Rate | 5Mbps | |
| Product Type | Transceiver | |
| Number of Transceivers | 1 | |
| Sub Type | Interface IC | |
| Power Down Mode | Normal, Sleep, Standby | |
| Supply Current | 500μA | |
| Mount Type | PCB | |
| Interface Type | CAN | |
| Package Type | TSON | |
| Pin Count | 14 | |
| Minimum Supply Voltage | 4.75V | |
| Maximum Supply Voltage | 5.25V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | TLE9255W | |
| Width | 4mm | |
| Standards/Approvals | ISO 11898-2, IEC 61000-4-2, RoHS | |
| Height | 1.75mm | |
| Length | 8.75mm | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Data Rate 5Mbps | ||
Product Type Transceiver | ||
Number of Transceivers 1 | ||
Sub Type Interface IC | ||
Power Down Mode Normal, Sleep, Standby | ||
Supply Current 500μA | ||
Mount Type PCB | ||
Interface Type CAN | ||
Package Type TSON | ||
Pin Count 14 | ||
Minimum Supply Voltage 4.75V | ||
Maximum Supply Voltage 5.25V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series TLE9255W | ||
Width 4mm | ||
Standards/Approvals ISO 11898-2, IEC 61000-4-2, RoHS | ||
Height 1.75mm | ||
Length 8.75mm | ||
Automotive Standard AEC-Q100 | ||
The Infineon HS CAN Transceiver with Partial Networking is used in industrial and automotive applications. It is Fully compliant to ISO 11898-2. It has wide common mode range for electromagnetic immunity (EMI).
HS CAN standard data rates up to 1MBit/s
Very low electromagnetic emission (EME)
Overtemperature protection
