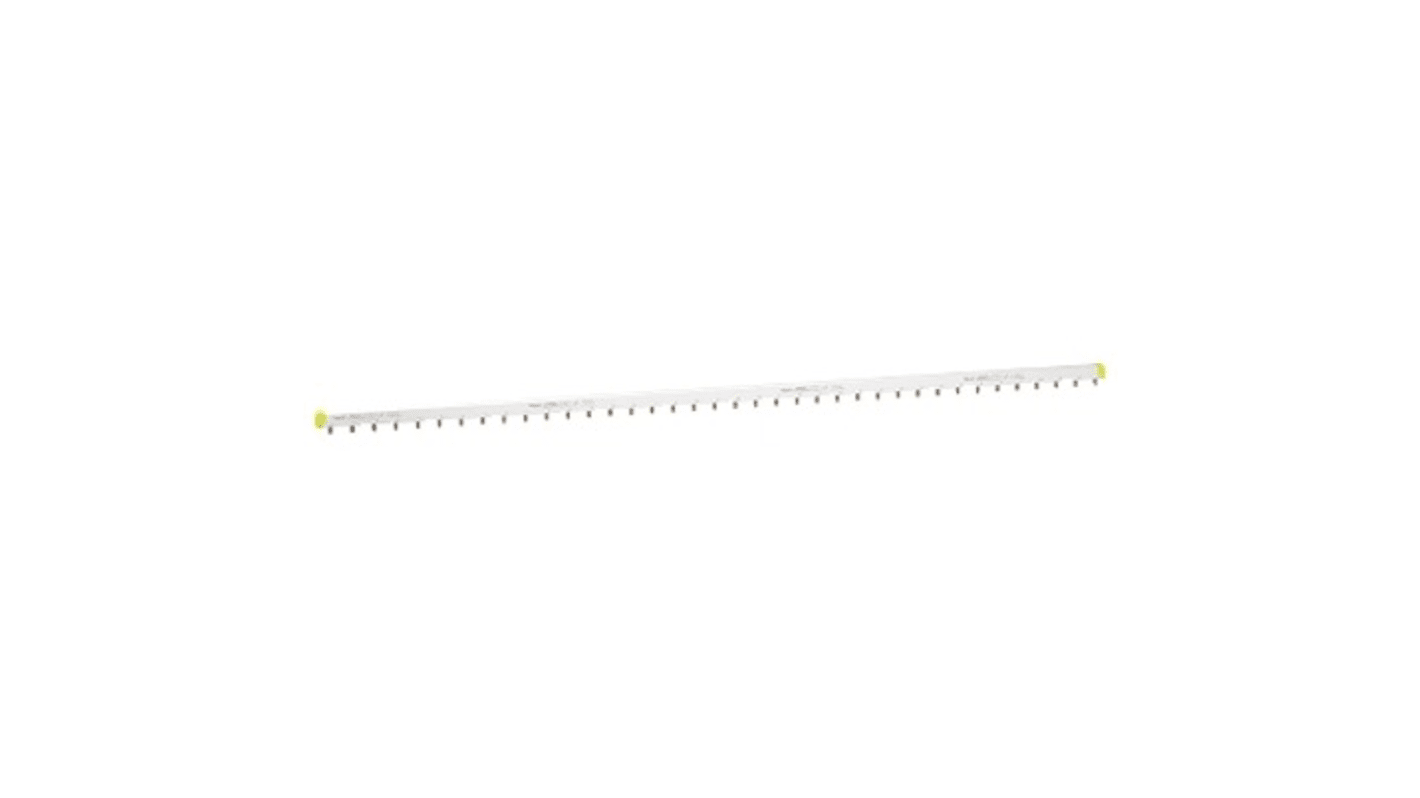

Schneider Electric Acti9 Acti9 Accessoires 3 Phase Busbar, 415 V ac, 18 mm Pitch

View all Busbars

Subtotal (1 unit)*

R 2 099,29

(exc. VAT)

R 2 414,18

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 2,099.29

*price indicative

RS stock no.:
207-178
Mfr. Part No.:
A9XAH657
Manufacturer:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Rated Operational Voltage

415 V ac

Product Type

Busbar

Range

Acti9

Electrical Phase

3

Number of Poles

1

Standards/Approvals

EN/IEC 61439-1 EU RoHS directive

Series

Acti9 Accessoires

Pitch

18mm

Current Rating

100 A

Colour

White

Number of Modules

57

COO (Country of Origin):
DE
The Schneider Electric Cuttable horizontal comb busbar 57 modules with 9mm auxiliary for Acti9 C60. It is suitable for 38 devices 3P+N with associated auxiliaries. The length is 1000mm. The total number of modules of 18mm is 57. The pin cross section is 16mm². The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A.

RoHS compliant

Mercury free

IP20 rated
