Nexperia 74LVC2G17GW,125, 2-Channel Non-Inverting Schmitt Trigger Input Single Ended Buffer, 6-Pin SC-88
- RS stock no.:
- 816-8823
- Mfr. Part No.:
- 74LVC2G17GW,125
- Manufacturer:
- Nexperia

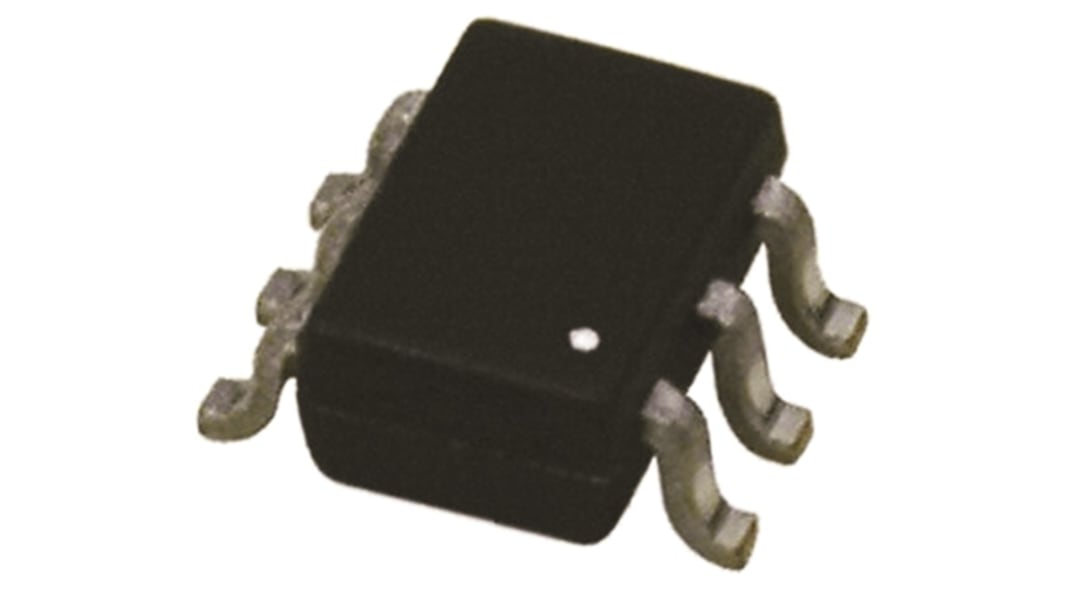

Image representative of range
Bulk discount available
Subtotal (1 pack of 40 units)*
R 108,76
(exc. VAT)
R 125,08
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 120 unit(s) ready to ship from another location
- Plus 2,880 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 40 - 80 | R 2.719 | R 108.76 |
| 120 - 480 | R 2.651 | R 106.04 |
| 520 - 960 | R 2.572 | R 102.88 |
| 1000 - 2960 | R 2.469 | R 98.76 |
| 3000 + | R 2.37 | R 94.80 |
*price indicative
- RS stock no.:
- 816-8823
- Mfr. Part No.:
- 74LVC2G17GW,125
- Manufacturer:
- Nexperia
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Buffer | |
| Logic Family | LVC | |
| Logic Function | Buffer | |
| Number of Channels | 2 | |
| Schmitt Trigger Input | Yes | |
| Input Type | Schmitt Trigger | |
| Output Type | Single Ended | |
| Mount Type | Surface | |
| Polarity | Non-Inverting | |
| Package Type | SC-88 | |
| Minimum Supply Voltage | 1.65V | |
| Pin Count | 6 | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Propagation Delay Time @ CL | 13.1ns | |
| Maximum High Level Output Current | -32mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Maximum Low Level Output Current | 32mA | |
| Series | 74LVC2G17 | |
| Width | 1.35 mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Length | 2.2mm | |
| Supply Current | 4μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Buffer | ||
Logic Family LVC | ||
Logic Function Buffer | ||
Number of Channels 2 | ||
Schmitt Trigger Input Yes | ||
Input Type Schmitt Trigger | ||
Output Type Single Ended | ||
Mount Type Surface | ||
Polarity Non-Inverting | ||
Package Type SC-88 | ||
Minimum Supply Voltage 1.65V | ||
Pin Count 6 | ||
Maximum Supply Voltage 5.5V | ||
Maximum Propagation Delay Time @ CL 13.1ns | ||
Maximum High Level Output Current -32mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Maximum Low Level Output Current 32mA | ||
Series 74LVC2G17 | ||
Width 1.35 mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Length 2.2mm | ||
Supply Current 4μA | ||
Automotive Standard No | ||
74LVC Family Inverters & Buffers
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
