Texas Instruments CD74HC4050PWR, 6-Channel Non-Inverting CMOS Buffer & Converter Combination Circuit, 16-Pin TSSOP
- RS stock no.:
- 662-7131
- Mfr. Part No.:
- CD74HC4050PWR
- Manufacturer:
- Texas Instruments

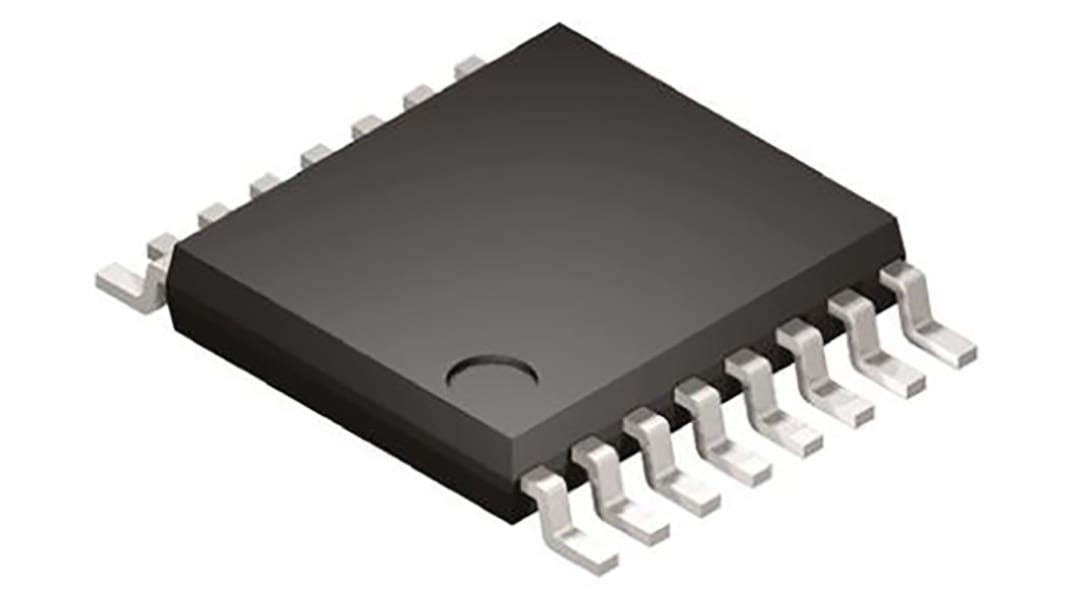

Image representative of range
Bulk discount available
Subtotal (1 pack of 10 units)*
R 131,01
(exc. VAT)
R 150,66
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 90 unit(s) shipping from 23 March 2026
- Plus 520 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | R 13.101 | R 131.01 |
| 250 - 990 | R 12.773 | R 127.73 |
| 1000 - 2490 | R 12.39 | R 123.90 |
| 2500 - 4990 | R 11.894 | R 118.94 |
| 5000 + | R 11.418 | R 114.18 |
*price indicative
- RS stock no.:
- 662-7131
- Mfr. Part No.:
- CD74HC4050PWR
- Manufacturer:
- Texas Instruments
Specification
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | HC | |
| Product Type | Buffer & Converter Combination Circuit | |
| Logic Function | Buffer, Converter | |
| Number of Channels | 6 | |
| Schmitt Trigger Input | No | |
| Input Type | Single Ended | |
| Mount Type | Surface | |
| Output Type | CMOS | |
| Polarity | Non-Inverting | |
| Package Type | TSSOP | |
| Minimum Supply Voltage | 2V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -55°C | |
| Maximum High Level Output Current | -5.2mA | |
| Maximum Propagation Delay Time @ CL | 130ns | |
| Maximum Operating Temperature | 125°C | |
| Maximum Low Level Output Current | 5.2mA | |
| Height | 1.15mm | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Series | CD | |
| Width | 4.4 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family HC | ||
Product Type Buffer & Converter Combination Circuit | ||
Logic Function Buffer, Converter | ||
Number of Channels 6 | ||
Schmitt Trigger Input No | ||
Input Type Single Ended | ||
Mount Type Surface | ||
Output Type CMOS | ||
Polarity Non-Inverting | ||
Package Type TSSOP | ||
Minimum Supply Voltage 2V | ||
Pin Count 16 | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -55°C | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Propagation Delay Time @ CL 130ns | ||
Maximum Operating Temperature 125°C | ||
Maximum Low Level Output Current 5.2mA | ||
Height 1.15mm | ||
Length 5mm | ||
Standards/Approvals No | ||
Series CD | ||
Width 4.4 mm | ||
Automotive Standard No | ||
74HC4000 Series, Texas Instruments
Standard logic ICs using CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of CMOS integrated circuits. The 74HC4000 logic family is functionally and pin-compatible with the standard LS logic family, and all devices have the ability to drive 10 LSTTL loads.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
