Nexperia, 1-Channel Inverting Single Ended Buffer, 16-Pin SO
- RS stock no.:
- 136-4820P
- Mfr. Part No.:
- HEF4049BT,653
- Manufacturer:
- Nexperia

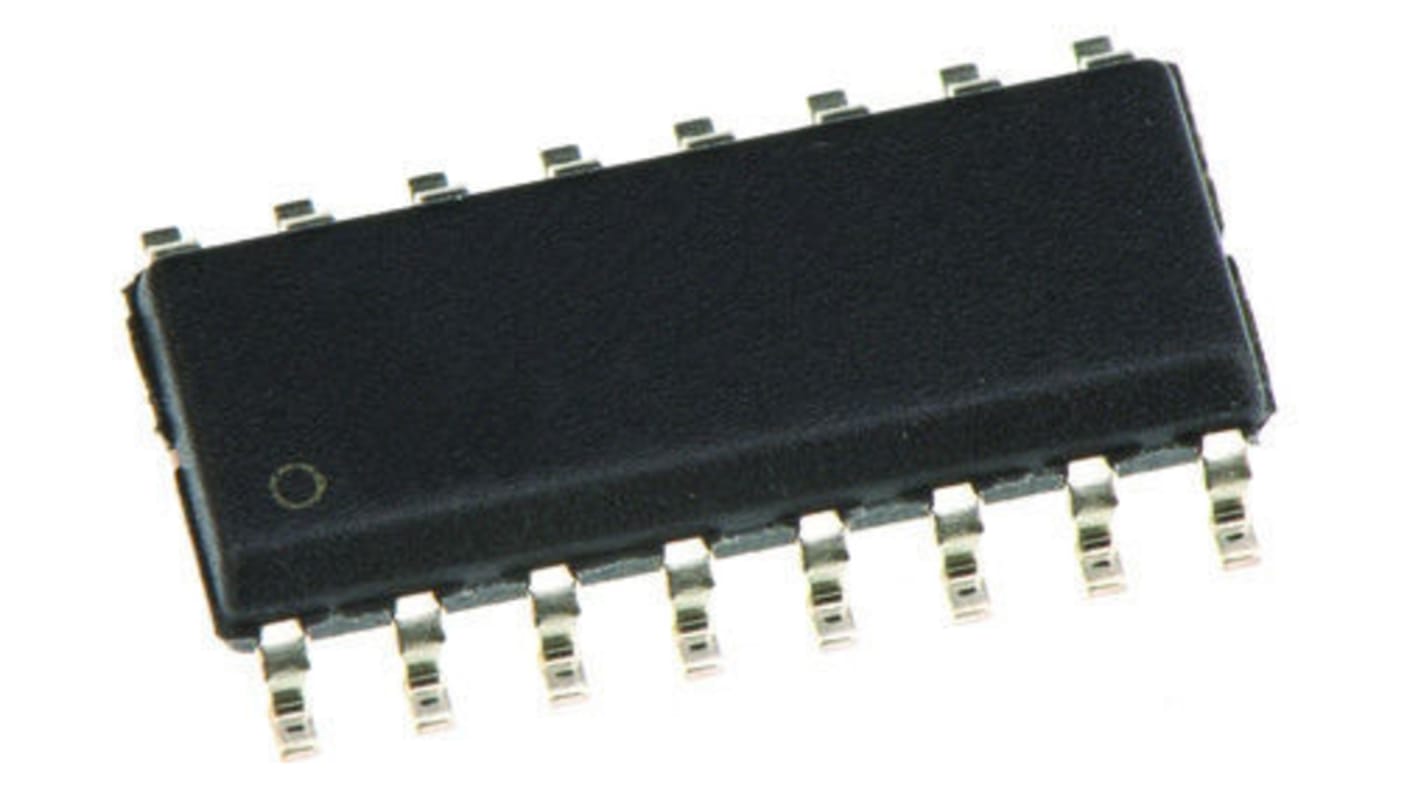

Image representative of range
Bulk discount available
Subtotal 500 units (supplied on a reel)*
R 1 491,50
(exc. VAT)
R 1 715,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 4,800 unit(s) shipping from 03 June 2026
- Plus 7,500 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 500 - 900 | R 2.983 |
| 1000 - 1400 | R 2.893 |
| 1500 + | R 2.777 |
*price indicative
- RS stock no.:
- 136-4820P
- Mfr. Part No.:
- HEF4049BT,653
- Manufacturer:
- Nexperia
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Family | HEF | |
| Product Type | Buffer | |
| Logic Function | Buffer | |
| Number of Channels | 1 | |
| Schmitt Trigger Input | No | |
| Input Type | TTL, CMOS | |
| Output Type | Single Ended | |
| Mount Type | Surface | |
| Polarity | Inverting | |
| Package Type | SO | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 15V | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 70ns | |
| Maximum High Level Output Current | -3.6mA | |
| Maximum Low Level Output Current | 24mA | |
| Maximum Operating Temperature | 85°C | |
| Series | HEF4049B | |
| Width | 4 mm | |
| Length | 10mm | |
| Height | 1.45mm | |
| Standards/Approvals | No | |
| Supply Current | 50mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Family HEF | ||
Product Type Buffer | ||
Logic Function Buffer | ||
Number of Channels 1 | ||
Schmitt Trigger Input No | ||
Input Type TTL, CMOS | ||
Output Type Single Ended | ||
Mount Type Surface | ||
Polarity Inverting | ||
Package Type SO | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 15V | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 70ns | ||
Maximum High Level Output Current -3.6mA | ||
Maximum Low Level Output Current 24mA | ||
Maximum Operating Temperature 85°C | ||
Series HEF4049B | ||
Width 4 mm | ||
Length 10mm | ||
Height 1.45mm | ||
Standards/Approvals No | ||
Supply Current 50mA | ||
Automotive Standard No | ||
4000 Series Inverters & Buffers, Nexperia
4000 CMOS Logic Family, Nexperia
CMOS Family devices
Wide operating voltage range: 3 to 18V
