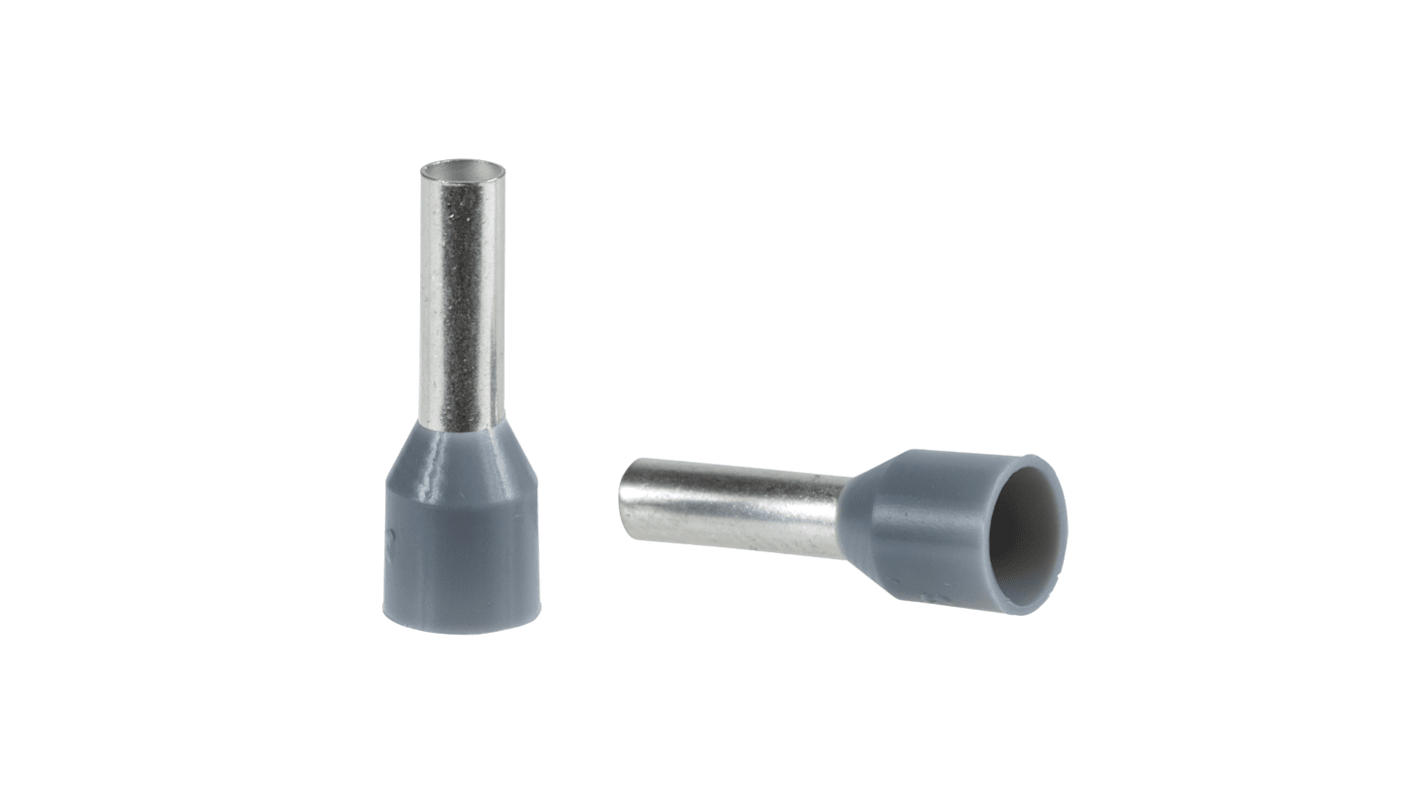

    Schneider Electric, DZ5CE Insulated Crimp Bootlace Ferrule, 8.2mm Pin Length, 2.7mm Pin Diameter, 2.5mm² Wire Size, Grey

    RS stock no.:
    254-6441
    Mfr. Part No.:
    DZ5CE025
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Bootlace Ferrules
    399 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    Box(es)

    Not Available for premium delivery

    Added

    Price (Excl VAT) 1 Box of 100

    R 327.11

    (exc. VAT)

    R 376.18

    (inc. VAT)

    Box(es)Per BoxPer unit*
    1 - 4R 327.11R 3.271
    5 - 24R 318.93R 3.189
    25 - 49R 309.36R 3.094
    50 - 99R 296.99R 2.97
    100 +R 285.11R 2.851
    *price indicative
    RS stock no.:
    254-6441
    Mfr. Part No.:
    DZ5CE025
    Manufacturer:
    Schneider Electric
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Schneider Electric Cable Ends


    Schneider Electrics cable ends are commonly referred to as a crimp bootlace ferrule, they are comprised of tin-plated copper tubes that have been crimped (compressed for joining) over a standard wire to accomplish a reliable connection. This range of bootlace ferrules features a variety that has a colour coded insulation collar, this helps to protect the connection from contacts.

    • Facilitates introduction unto the terminals
    • Ends are packaged in small boxes of 100 pieces.
    • Any bootlace ferrule that is colour coded allows the user to easily identify and access them

    What is a Bootlace Ferrule?


    These bootlace ferrules are moulded with a colour-coded insulating collar which is made up of plastic. The ferrule is slipped over the end of a multi-stranded wire or cable, crimped and then inserted into a screw or spring clamp connection. When a multi-stranded wire has been stripped and placed under a screw terminal, the strands of wire will naturally fan out due to the pressure of the screw, with some of the strands going completely astray - this dramatically reduces the quality of an electrical connection, it could also result in an electrical short. This is when a bootlace ferrule comes in to play, their flared design and insulated funnel restricts all the fanned-out strands. Once a bootlace ferrule has been applied, it is then crimped together with a crimp tool and inserted into a terminal to create the electrical connection.


    Specification

    AttributeValue
    Maximum Wire Size mm²2.5mm²
    Pin Diameter2.7mm
    Insulation MaterialPlastic
    Number of Entries1
    ColourGrey
    Pin Length8.2mm
    InsulationInsulated
    Maximum Wire Size AWG14AWG
    Overall Length14.5mm
    SeriesDZ5CE
    Better World ProductYes
    Better World VerificationGreen Premium
