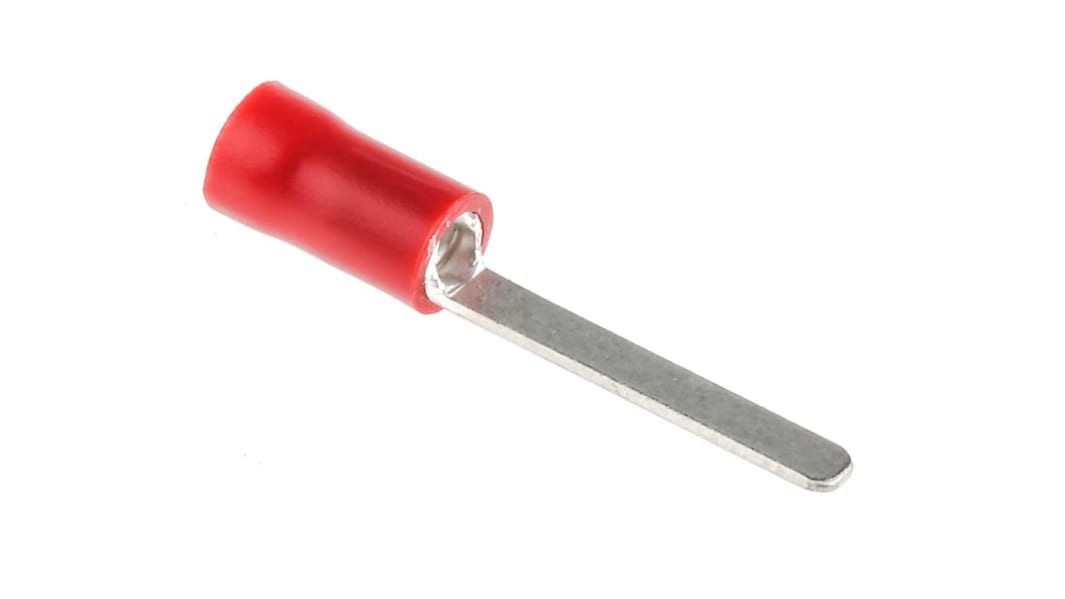

RS PRO Insulated Crimp Blade Terminal 17.6 mm Blade Length, 22 AWG to 16 AWG, Red
- RS stock no.:
- 534-294
- Manufacturer:
- RS PRO
Image representative of range
Bulk discount available
Subtotal (1 pack of 100 units)*
R 569,10
(exc. VAT)
R 654,50
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 51,200 unit(s) shipping from 04 May 2026
- Plus 10,000 unit(s) shipping from 14 July 2026
- Plus 9,800 unit(s) shipping from 08 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | R 5.691 | R 569.10 |
| 1000 - 2400 | R 5.549 | R 554.90 |
| 2500 - 4900 | R 5.382 | R 538.20 |
| 5000 - 9900 | R 5.167 | R 516.70 |
| 10000 + | R 4.96 | R 496.00 |
*price indicative
- RS stock no.:
- 534-294
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Crimp Blade Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Overall Length | 28mm | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.5mm² | |
| Blade Length | 17.6mm | |
| Blade Width | 2.5mm | |
| Inside Diameter | 4.3mm | |
| Blade Thickness | 0.8mm | |
| Hooked | No | |
| Colour | Red | |
| Standards/Approvals | No | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Crimp Blade Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Overall Length 28mm | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.5mm² | ||
Blade Length 17.6mm | ||
Blade Width 2.5mm | ||
Inside Diameter 4.3mm | ||
Blade Thickness 0.8mm | ||
Hooked No | ||
Colour Red | ||
Standards/Approvals No | ||
Contact Plating Tin | ||
Contact Material Copper | ||
RS PRO Insulated Crimp Blade Terminal 17.6 mm Blade Length, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, Red
This crimp Terminal blade from the RS PRO range allows you to terminate your stranded single-wire electrical connections without needing to solder them. It has a tight-fitting design that protects the metal interior from corrosion, making it a long-lasting choice.
Thanks to its tin-plated copper material, the crimp blade guarantees you a Durable and reliable electrical connection. The blade is insulated with flared vinyl to protect the connection against damage. The insulation is colour-coded in red, so you can quickly and easily identify different wire sizes. A crimp Terminal blade like this one is commonly used by electricians for its versatility and ease of use.
Features and Benefits
• Blade length of 17.6 mm
• Blade thickness of 0.8 mm
• Blade width of 2.5 mm
• Overall length of 28 mm
• Inner diameter of 4.3 mm
• Red colour
• Copper contact material
• Tin contact plating
• Male gender
• Not hooked
• Insulated
• Vinyl insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 22 AWG (American Wire Gauge)
• Maximum wire size of 1.5 mm²
• Minimum wire size of 0.5 mm²
• Unshrouded
