Arduino, Uno Rev 3

RS stock no.:: 715-4081
Mfr. Part No.:: A000066
Manufacturer:: Arduino

63 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

3897 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

Added

Price (Excl VAT) Each

R 426.16

(exc. VAT)

R 490.08

(inc. VAT)

units	Per unit
1 - 9	R 426.16
10 - 49	R 415.51
50 +	R 403.04

RS stock no.:: 715-4081
Mfr. Part No.:: A000066
Manufacturer:: Arduino

COO (Country of Origin):: IT

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

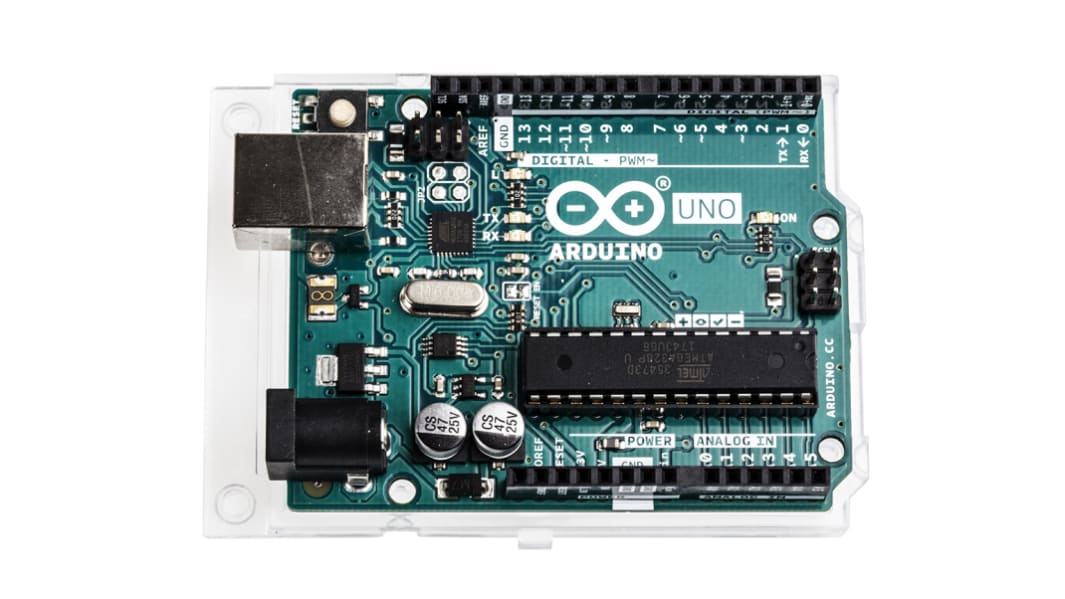

Arduino Uno Rev3

Arduino Uno Rev3 versions:

A000066 (715-4081) - DIP Packages

A000073 (769-7409) - SMD Packages

The Arduino UNO is a development board which features the ATmega328P microcontroller (MCU). It is a perfect introduction to electronics and coding. The UNO also demonstrates the basics on sensors and actuators.

The UNO is the ideal, entry-level board for those who are new to developing on the Arduino platform. It’s a popular board as it is really robust when it comes to tinkering. For those more experienced, it’s still the perfect board for rapid prototyping.

How simple is it?

Very. The board contains everything it needs to support the ATmega328P MCU. Just connect it to PC via USB cable or connect it to an AC-to-DC battery.

The Arduino Software (IDE) is there to help but the UNO is a sturdy board. You can tinker to your heart’s content without having to worry too much about breaking it. And, if something does go wrong, you can always replace the chip.

There is also a community surrounding Arduino which is there with lots of support. So, if you’re ever stuck, just reach out for help. There is also tonnes of resource to help inspire you with your next project. https://www.arduino.cc/

What else is on-board?

ATmega328P Microcontroller

14 x digital I/O pins (6 can be used as PWM outputs)

6 x Analogue inputs

16MHz quartz crystal

1 x USB

1 x power jack

1 x ICSP header

1 x reset button

Operating voltage: 5 V

FLASH memory: 32 KB

SRAM: 2 K

EEPROM: 1 K

Size: 68.6 x 53.4 mm

What is Arduino?

Arduino is an open-source electronics platform consisting of hardware and software. Every aspect is designed to be straightforward so you can learn to code or design a project, quickly and easily. It’s designed for students, programmers, designers, hobbyists and tinkerers.

The Arduino open-source software (IDE) is there to help too. It makes is much easier to write code and transfer it to your board.

Note

USB Cable and battery are not included.

Arduino Uno Development Boards

Here at RS we have 3 versions of the Arduino Uno Development Board:

715-4081 Revision 3 for DIP package types

769-7409 Revision 3 for SMD package types

847-4897 Revision 3 with long pins for DIP package types

The Uno board is used to develop the AVR ATmega 328 microcontroller and can be powered by either connecting the board to a computer via a USB cable or with an AC to DC adaptor.

For Arduino resources: http://labs.arduino.org/

Features of the Arduino Uno

• ATmega 16U2 programmed as a USB to serial converter

• 14 digital I/O pins (6 can be used as Pulse Width Modulation (PWM) Outputs)

• 6 analogue inputs

• 16 MHz ceramic resonator

• USB connection

• Power jack

• ICSP header

• Reset button

Arduino AVR Development Boards

We have a range of Arduino boards at RS that feature an AVR ATmega microcontroller at the core. Most of the boards feature the 32u4 microcontroller with the Mega boards featuring the ATmega 2560 and the Uno/Nano boards featuring the ATmega328 microcontroller. These Arduino boards are designed to be used with Arduino IDE programming software.

Specification

Attribute	Value
Product Name	Uno Rev 3
Kit Classification	Development Board
Processor Part Number	ATmega328P
Revision	V3
