Ansmann 18W Plug-In AC/DC Adapter 3V dc Output, 1.5A Output
- RS stock no.:
- 735-0743
- Mfr. Part No.:
- 5111253
- Manufacturer:
- Ansmann
370 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 516,36
(exc. VAT)
R 593,81
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 516,36 |
| 5 - 9 | R 503,45 |
| 10 - 24 | R 488,35 |
| 25 - 49 | R 468,82 |
| 50 + | R 450,07 |
- RS stock no.:
- 735-0743
- Mfr. Part No.:
- 5111253
- Manufacturer:
- Ansmann
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Ansmann Power Supply

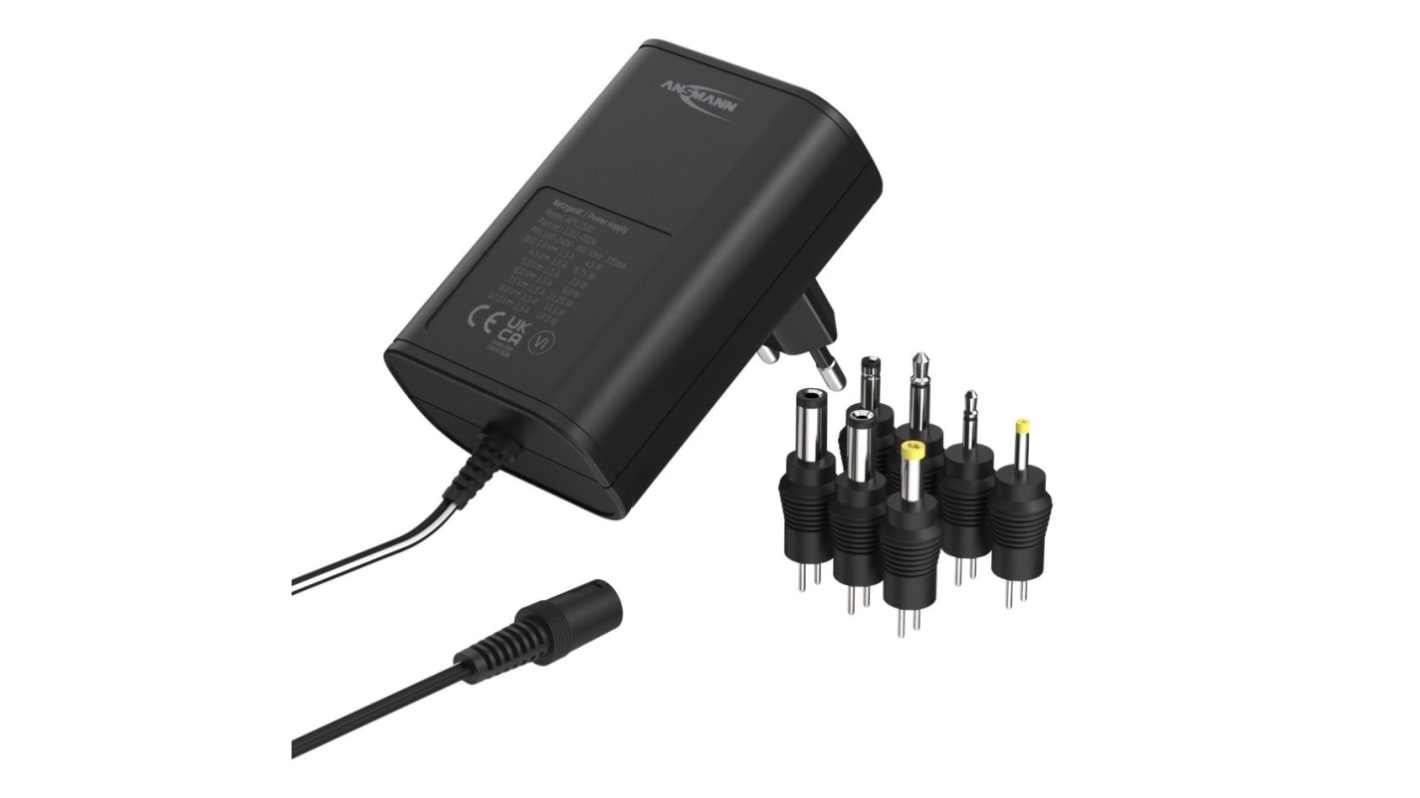

The Ansmann power supply is the latest invention from the APS 1500 series. It has a regulated output voltage within the range of 3V to 12V. This plug-top adapter power supply has a selectable output voltage along with 7 interchangeable output connectors. It supports numerous applications due to the wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for EU. It is a multi-voltage, plug-top adapter power supply with ErP level V compliance.
Note:
Conforms to energy-related product directive 2009/125/EC.
Note:
Conforms to energy-related product directive 2009/125/EC.
Features and Benefits
External switch mode plug-top power supplies
Class II- double insulated
Output voltages selectable from 3V, 4.5V, 6V, 7.5V, 9V and 12VDC
Output currents are 300mA, 400mA, 450mA and 600mA
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 18W
Output current is 1.5A
Plug directly into a 2-pin Euro socket
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Class II- double insulated
Output voltages selectable from 3V, 4.5V, 6V, 7.5V, 9V and 12VDC
Output currents are 300mA, 400mA, 450mA and 600mA
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 18W
Output current is 1.5A
Plug directly into a 2-pin Euro socket
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Certifications
ErP level VI compliance
Specification
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 1.5A |
| Maximum Temperature | +25°C |
| Output Connector | Interchangeable |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 18W |
| Cable Length | 1.8m |
| Standards Met | ErP Compliant |
| MTBF | 70000h |
| Type | AC/DC Adapter |
| Load Regulation | ±10% |
| Energy Efficiency Level | V |
| Minimum Temperature | 0°C |
| Depth | 32.5mm |
| Width | 54.5mm |
| Length | 79.5mm |
