RS PRO 90 W Linear Power Supply AC/DC Adapter C8 24V dc Output, 3.75 A
- RS stock no.:
- 731-6122
- Distrelec Article No.:
- 304-04-824
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
R 2 419,87
(exc. VAT)
R 2 782,85
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 42 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 2,419.87 |
| 5 - 9 | R 2,359.37 |
| 10 - 24 | R 2,288.59 |
| 25 - 49 | R 2,197.05 |
| 50 + | R 2,109.17 |
*price indicative
- RS stock no.:
- 731-6122
- Distrelec Article No.:
- 304-04-824
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | AC/DC Adapter | |
| Sub Type | Linear Power Supply | |
| Plug Type | C8 | |
| Output Voltage | 24V dc | |
| Output Connector Type | 1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug | |
| Power | 90W | |
| Cable Length | 1200mm | |
| Number of Outputs | 1 | |
| Input Connector Type | IEC 320-C8 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 3.75A | |
| Maximum Operating Temperature | 40°C | |
| Depth | 16.8mm | |
| Width | 64mm | |
| Standards/Approvals | ENIEC609501, FCC, GS, ULcUL, CB, CE, TUVSUD | |
| Length | 118mm | |
| Efficiency | 87% | |
| Maximum Input Voltage | 240V ac | |
| Energy Efficiency Level | V | |
| Load Regulation | ±5 % | |
| Series | EA10 | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type AC/DC Adapter | ||
Sub Type Linear Power Supply | ||
Plug Type C8 | ||
Output Voltage 24V dc | ||
Output Connector Type 1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug | ||
Power 90W | ||
Cable Length 1200mm | ||
Number of Outputs 1 | ||
Input Connector Type IEC 320-C8 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 3.75A | ||
Maximum Operating Temperature 40°C | ||
Depth 16.8mm | ||
Width 64mm | ||
Standards/Approvals ENIEC609501, FCC, GS, ULcUL, CB, CE, TUVSUD | ||
Length 118mm | ||
Efficiency 87% | ||
Maximum Input Voltage 240V ac | ||
Energy Efficiency Level V | ||
Load Regulation ±5 % | ||
Series EA10 | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- CN

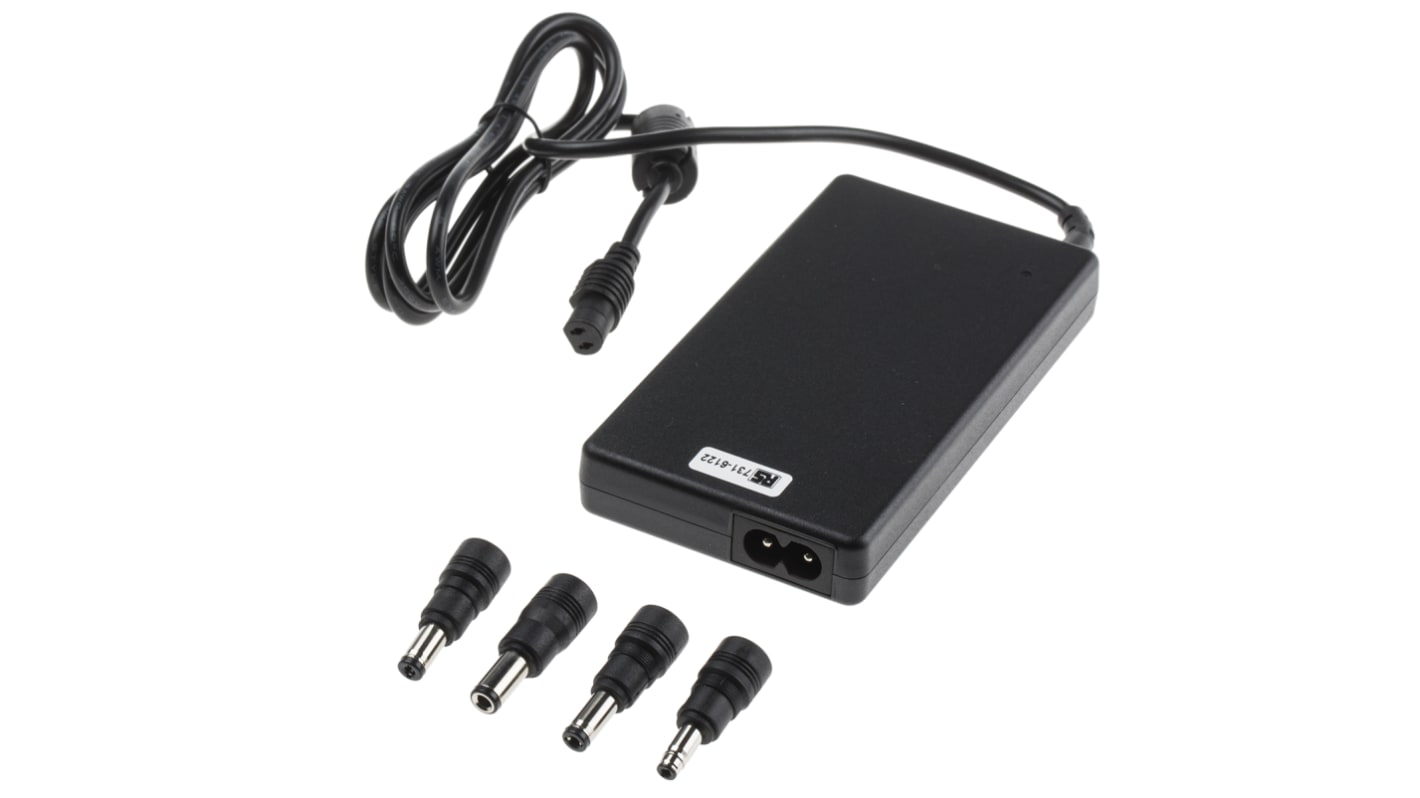

RS PRO 24 V DC Power Supply, 90 W, 3.75 A, C8 Connector
Use this 90 W RS PRO power supply to provide 24 V of DC current to compatible equipment from the mains AC. It comes with four interchangeable plugs and works with an input range of 100 to 240 V AC, making it suitable for use with a variety of devices.
The unit has a 1.2-metre cable and weighs only 450 g, so it's compact and portable. It also provides protection against overload, overvoltage and short-circuits, ensuring reliability.
This power supply meets the EU's ErP (Energy-related Products) energy efficiency requirements. It's an effective solution for powering laptops, TVs and gaming consoles.
Features and Benefits
• C8 plug type
• IEC320-C8 input connector
• One output
• Four centre positive female coaxial plugs (1.75 x 4.75 x 11 mm, 2.1 x 5.5 x 10.5 mm, 2.5 x 5.5 x 12.5 mm, 3 x 6.3 x 12 mm)
• Output current range of 3.75 A
• Input frequency range of 47 to 63 Hz
• Maximum input current of 500 mA
• Line regulation range of ±1%
• Load regulation range of ±5%
• Ripple and noise of 300 mV
• Efficiency of 87%
• Operating temperature range of 0°C to +40°C
• Dimensions of 118 (L) x 64 (W) x 16.8 mm (D)
• Mean time between failure (MTBF) of 50000 h
