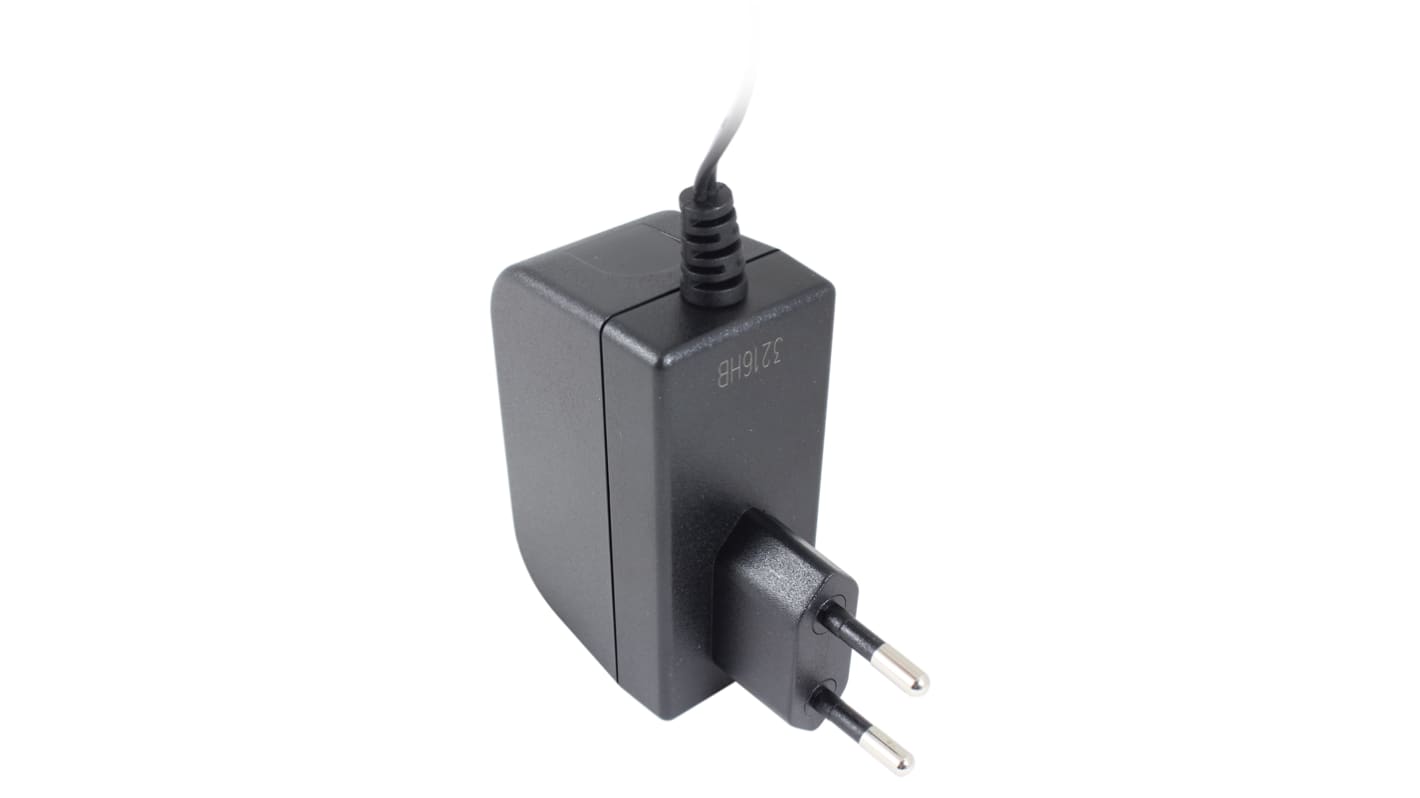

RS PRO 15 W AC/DC Adapter AC/DC Adapter Type C 7.5 V dc Output, 2 A
- RS stock no.:
- 175-3314
- Manufacturer:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS stock no.:
- 175-3314
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Type C | |
| Output Voltage | 7.5 V dc | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Power | 15W | |
| Number of Outputs | 1 | |
| Input Connector Type | EU Plug | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 2A | |
| Regulated/Unregulated | Regulated | |
| Maximum Operating Temperature | 40°C | |
| Length | 74.5mm | |
| Depth | 84.4mm | |
| Width | 50.9 mm | |
| Standards/Approvals | CE, EN 60950-1 | |
| Efficiency | 80.59% | |
| Maximum Input Voltage | 240V ac | |
| Minimum Input Voltage | 100V ac | |
| Series | T71 | |
| Load Regulation | ±2 % | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Type C | ||
Output Voltage 7.5 V dc | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Power 15W | ||
Number of Outputs 1 | ||
Input Connector Type EU Plug | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 2A | ||
Regulated/Unregulated Regulated | ||
Maximum Operating Temperature 40°C | ||
Length 74.5mm | ||
Depth 84.4mm | ||
Width 50.9 mm | ||
Standards/Approvals CE, EN 60950-1 | ||
Efficiency 80.59% | ||
Maximum Input Voltage 240V ac | ||
Minimum Input Voltage 100V ac | ||
Series T71 | ||
Load Regulation ±2 % | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
The RS Pro Range of Class II 15watt AC/DC European plug-in power supplies provide 15 watts of continuous power in a compact fixed wall plug enclosure suitable for use in many general power applications.
Features:
• United Kingdom Fixed AC Head
• 3 Year Warranty
• Level VI Efficiency
• CE Approved
