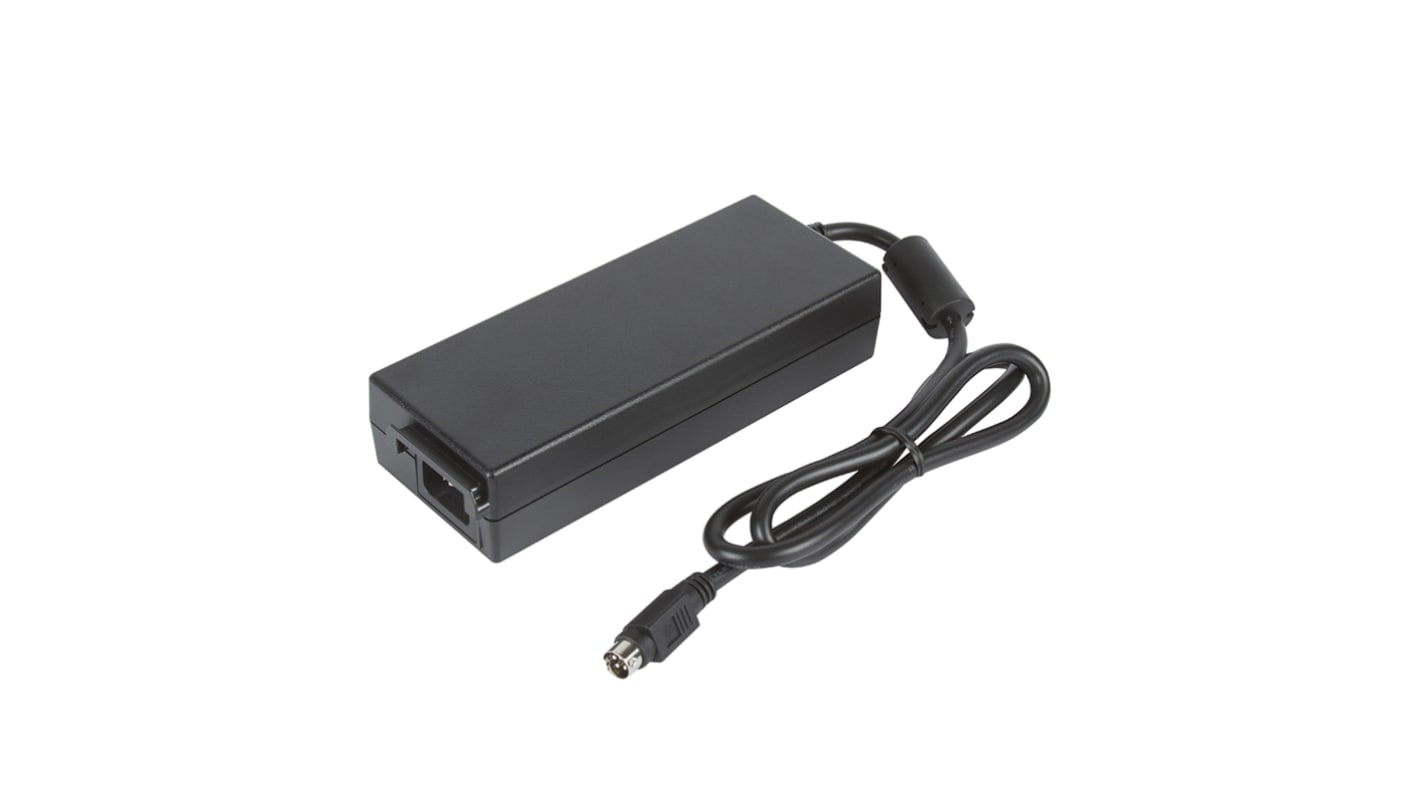

XP Power 120 W Medical External Power Supply AC/DC Adapter C8 12V dc Output, 10 A
- RS stock no.:
- 172-0772
- Mfr. Part No.:
- ALM120PS12C2-8
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)*
R 1 753,79
(exc. VAT)
R 2 016,86
(inc. VAT)
FREE delivery for orders over R 1,500.00
Limited stock
- 2 left, ready to ship from another location
- Plus 6 left, shipping from 29 April 2026
- Plus 7 left, shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,753.79 |
| 5 - 9 | R 1,709.95 |
| 10 - 24 | R 1,658.65 |
| 25 + | R 1,592.30 |
*price indicative
- RS stock no.:
- 172-0772
- Mfr. Part No.:
- ALM120PS12C2-8
- Manufacturer:
- XP Power
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | Medical External Power Supply | |
| Plug Type | C8 | |
| Output Voltage | 12V dc | |
| Power | 120W | |
| Output Connector Type | 4 Way DC Connector | |
| Cable Length | 900mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 10A | |
| Input Connector Type | IEC 320-C8 | |
| Maximum Operating Temperature | 60°C | |
| Width | 68mm | |
| Standards/Approvals | EN 609501, UL 609501 | |
| Length | 175.9mm | |
| Depth | 38mm | |
| Efficiency | 91% | |
| Maximum Input Voltage | 264V ac | |
| Load Regulation | ±5 % | |
| Series | ALM120 | |
| Minimum Input Voltage | 80V ac | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type Medical External Power Supply | ||
Plug Type C8 | ||
Output Voltage 12V dc | ||
Power 120W | ||
Output Connector Type 4 Way DC Connector | ||
Cable Length 900mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 10A | ||
Input Connector Type IEC 320-C8 | ||
Maximum Operating Temperature 60°C | ||
Width 68mm | ||
Standards/Approvals EN 609501, UL 609501 | ||
Length 175.9mm | ||
Depth 38mm | ||
Efficiency 91% | ||
Maximum Input Voltage 264V ac | ||
Load Regulation ±5 % | ||
Series ALM120 | ||
Minimum Input Voltage 80V ac | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- VN
The ALM120 series of medical external power supplies has been designed with very high efficiency and low standby power , enabling it to meet the latest environmental legislation. The unit has a fully sealed enclosure and a smooth surface finish making it easier to wipe down in a clinical setting.
Class I and Class II Versions
<0.15 W Standby Power
0 °C to 60 °C Operation
Low Earth Leakage Current
3 Year Warranty
