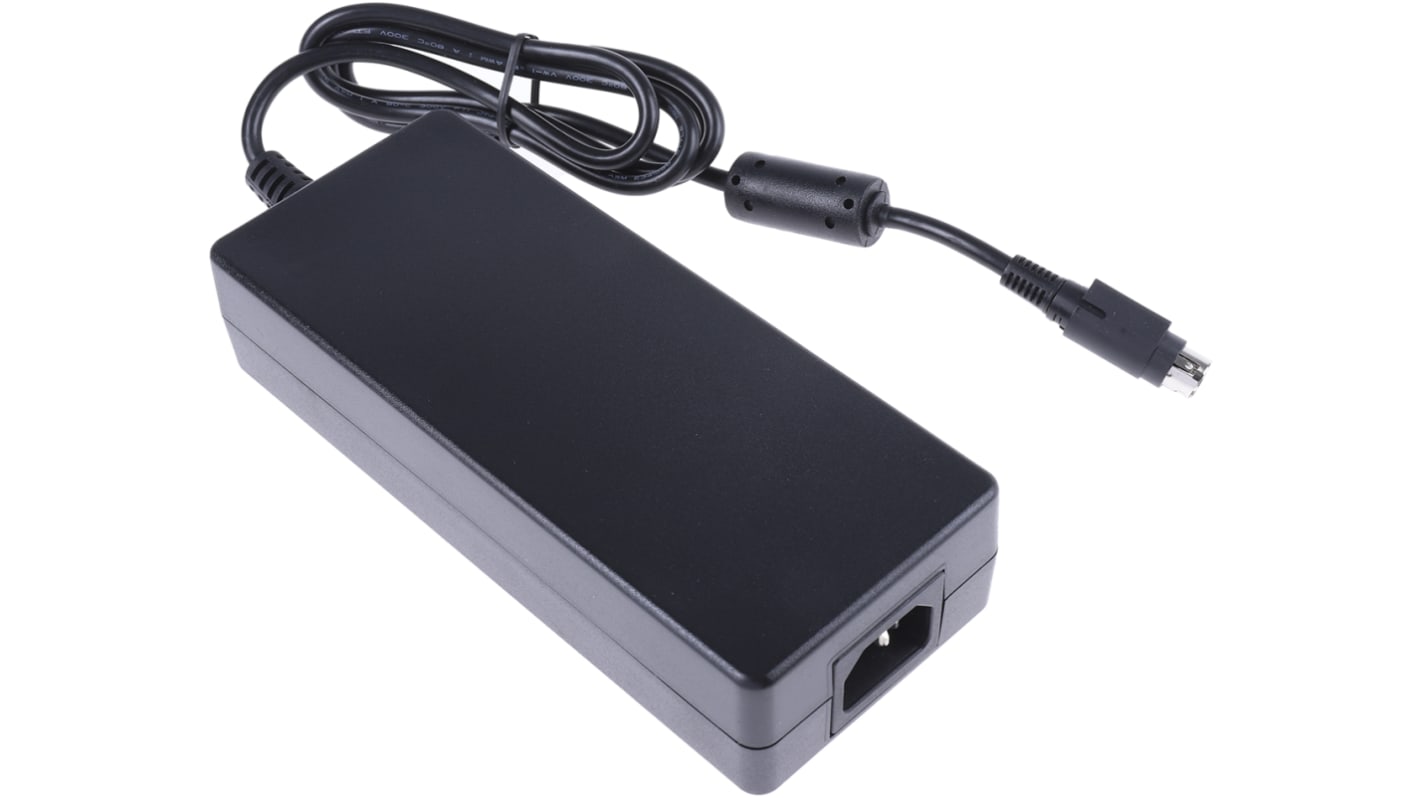

RS PRO 120 W Power Adapter AC/DC Adapter 3-Pin (IEC) 12V dc Output, 10 A

RS stock no.:: 144-0990
Distrelec Article No.:: 304-25-308
Manufacturer:: RS PRO

RS PRO 120 W Power Adapter AC/DC Adapter 3-Pin (IEC) 12V dc Output, 10 A

Bulk discount available

Subtotal (1 unit)*

R 1 995,56

(exc. VAT)

R 2 294,89

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 46 unit(s) shipping from 27 April 2026
Plus 120 unit(s) shipping from 30 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	R 1,995.56
5 - 9	R 1,945.67
10 - 24	R 1,887.30
25 - 49	R 1,811.81
50 +	R 1,739.34

*price indicative

RS stock no.:: 144-0990
Distrelec Article No.:: 304-25-308
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	AC/DC Adapter
	Sub Type	Power Adapter
	Plug Type	3-Pin (IEC)
	Output Voltage	12V dc
	Power	120W
	Output Connector Type	4-Pin Power DIN
	Cable Length	1.2m
	Number of Outputs	1
	Minimum Operating Temperature	0°C
	Adapter Current	10A
	Input Connector Type	IEC C14
	Maximum Operating Temperature	40°C
	Length	173mm
	Width	71mm
	Standards/Approvals	UL, TUV, FCC, cULus, CE, CCC
	Depth	71mm
	Efficiency	88%
	Maximum Input Voltage	264V ac
	Minimum Input Voltage	90V ac
	Load Regulation	±5 %
	Series	DYS6150
	Energy Efficiency Level	VI

	Select all
	Brand RS PRO
	Product Type AC/DC Adapter
	Sub Type Power Adapter
	Plug Type 3-Pin (IEC)
	Output Voltage 12V dc
	Power 120W
	Output Connector Type 4-Pin Power DIN
	Cable Length 1.2m
	Number of Outputs 1
	Minimum Operating Temperature 0°C
	Adapter Current 10A
	Input Connector Type IEC C14
	Maximum Operating Temperature 40°C
	Length 173mm
	Width 71mm
	Standards/Approvals UL, TUV, FCC, cULus, CE, CCC
	Depth 71mm
	Efficiency 88%
	Maximum Input Voltage 264V ac
	Minimum Input Voltage 90V ac
	Load Regulation ±5 %
	Series DYS6150
	Energy Efficiency Level VI

COO (Country of Origin):: CN

RS PRO DC Power Supply

The RS PRO is a 12V high-quality adapter. This range of switch-mode power supply provides 120W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage range is 85V to 264VAC (wide range). Its range of output current is 0A to 10A. It gives fully regulated output. Most importantly, it is short circuit protected. It is a reliable product due to high MTBF of 50000h. The plug type is 3-pin IEC. It has thermal protection of latching type. The PSU would be a suitable power source for a large range of PCs except for high tech desktop. The PC power supply units can be interchanged, provided the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Features and Benefits

• Universal AC input

• The desktop power supply complies with level VI energy regulations and have a high-efficiency rating

• No load power consumption is significantly less and low leakage current

• It complies with the relevant safety and EMC standards

• The power supply has a fully regulated output

• Overvoltage and short circuit protected

• Operating temperature ranges between 0°C and 40°C

Applications

• Information technology equipment (ITE) commercial

• Laptops and CCTV cameras

• Networking and peripherals

• Gaming machines

Certifications

• CCC

• CE

• CULus

• FCC

• TUV

• UL
