RS PRO 5W Plug-In AC/AC Adapter 12V ac Output, 400mA Output
- RS stock no.:
- 139-1764
- Manufacturer:
- RS PRO
183 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Price (Excl VAT) Each
R 271,02
(exc. VAT)
R 311,67
(inc. VAT)
| Units | Per unit |
| 1 + | R 271,02 |
- RS stock no.:
- 139-1764
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

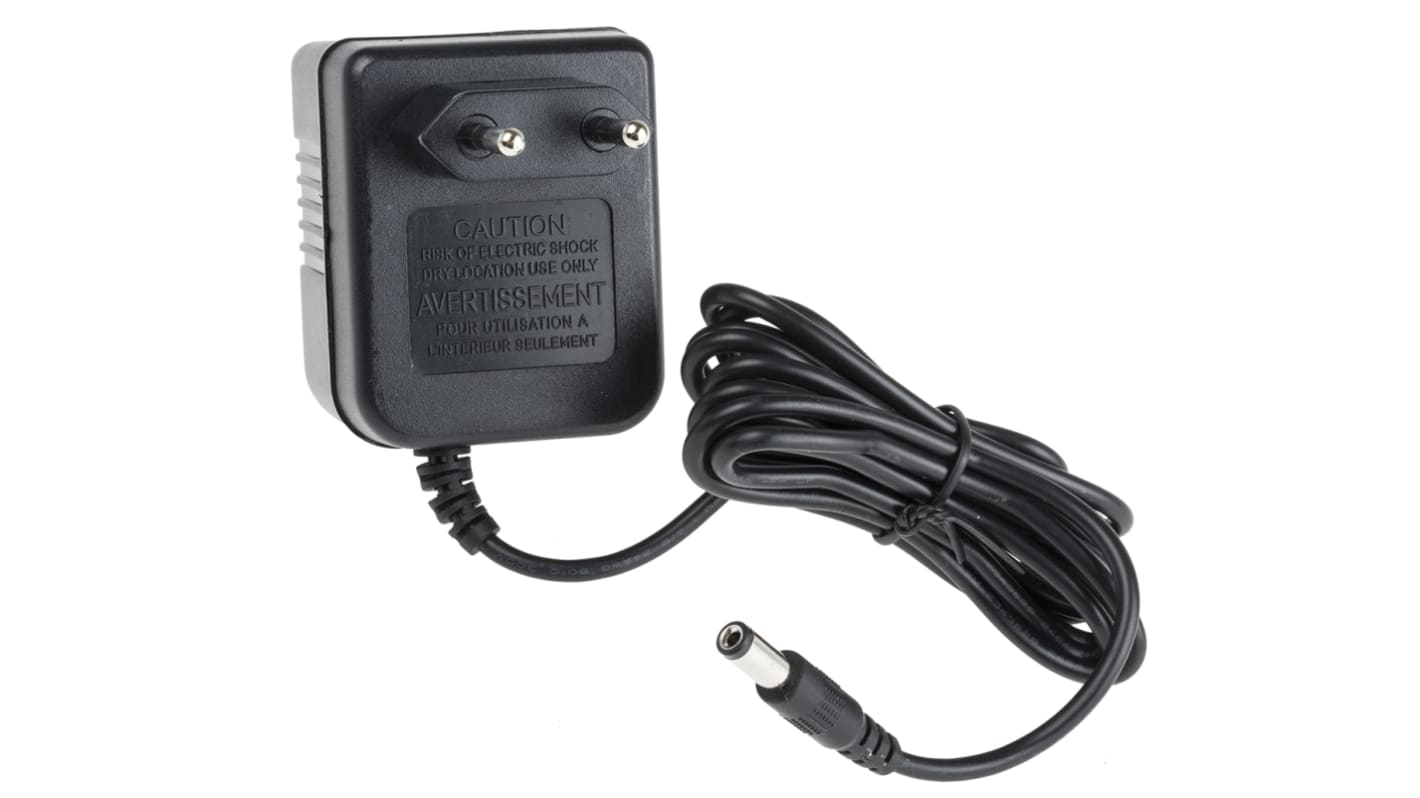

RS PRO 5 W Plug In Power Supply, 12 V AC, 400 mA, 1 Output AC/AC Adapter, 2-Pin Euro
This RS PRO AC/AC adapter converts 230 to 240 V AC to 12 V AC. It's a 2-pin Euro design and is ideal for charging 12-volt devices such as radios or GPS (Global Positioning Satellite) units.
This adapter has an IP20 (Ingress Protection) rating, so it's protected from touch and objects greater than 12 mm in size. Engineers have rigorously tested this product for safety and quality.
This adapter has an IP20 (Ingress Protection) rating, so it's protected from touch and objects greater than 12 mm in size. Engineers have rigorously tested this product for safety and quality.
Features and Benefits
- Cable length of 1.8 m
- Depth of 42 mm
- Width of 51 mm
- Length of 62 mm
- EU plug input connector
- Input frequency range of 50 to 60 Hz
- Input voltage of 230 V AC, 240 V AC
- Output current of 400 mA
- Output voltage of 12 V AC
- Maximum input current of 45 mA
- Operating temperature range of -20°C to +40°C
- Line regulation of ±1%
- Load regulation of ±5%
- Not medical approved
- MTBF (Mean Time Between Failures) of 50,000 hours at +25°C
- One output
- Centre positive output connector size of 2.1 mm x 5.5 mm x 12 mm
- 2-pin Euro plug type
- Power rating of 5 W
- AC-AC power signal conversion type
- Ripple and noise of 100 mV
- AC/AC adapter type
- Weight of 230 g
Specification
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 12V ac |
| Input Voltage | 230 V ac, 240V ac |
| Output Current | 400mA |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 5W |
| Cable Length | 1.8m |
| Medical Approved | No |
| MTBF | 50k |
| Minimum Temperature | -20°C |
| Load Regulation | ±5% |
| Length | 62mm |
| Width | 51mm |
| Type | AC/AC Adapter |
| Depth | 42mm |
