RS PRO 24 W AC/DC Adapter Type C 24V dc Output, 1 A

View all AC/DC Adapters
Bulk discount available

Subtotal (1 unit)*

R 450,32

(exc. VAT)

R 517,87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 182 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4R 450.32
5 - 9R 439.06
10 - 24R 425.89
25 - 49R 408.85
50 +R 392.50

*price indicative

RS stock no.:
124-2206
Distrelec Article No.:
304-03-886
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

AC/DC Adapter

Plug Type

Type C

Output Voltage

24V dc

Output Connector Type

2.1 x 5.5 x 10 mm Centre Positive

Power

24W

Cable Length

69.3mm

Number of Outputs

1

Adapter Current

1A

Input Connector Type

EU Plug

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

40°C

Depth

46mm

Length

69.3mm

Width

46mm

Standards/Approvals

CE, EN 55013, EN 55014-1, EN 55014-2, EN 55020, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EU CoC V5, TUV/GS EN 60950-1, UL 60065

Minimum Input Voltage

100V ac

Series

HNP24

Energy Efficiency Level

VI

COO (Country of Origin):
CN

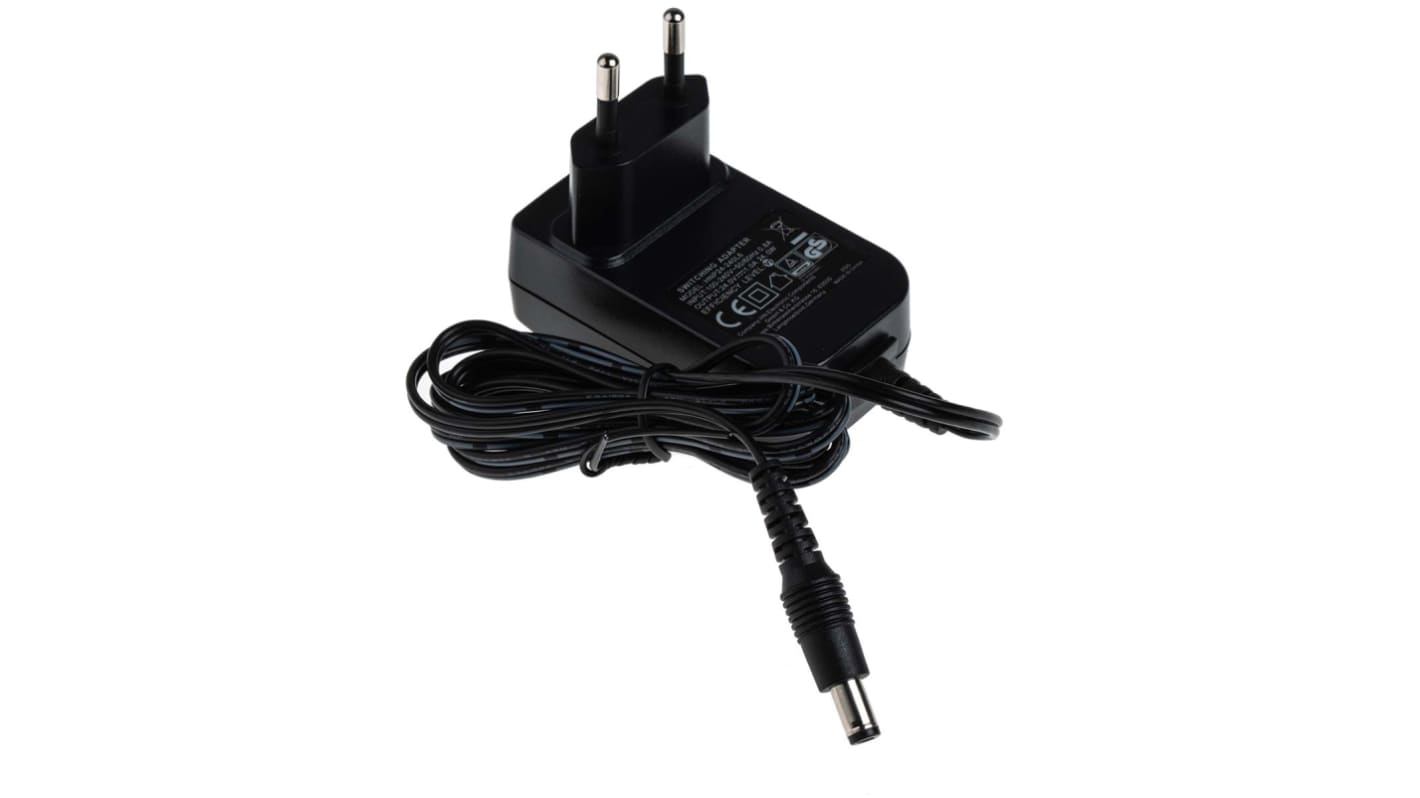

RS PRO, 24 W AC DC Adapter 24 V DC, 1 A, Level VI Efficiency, 1 Output Power Adapter, Type C


Stay connected and keep your mobile devices charged with the RS PRO 2-pin Europlug. The AC/DC adaptor fits into domestic sockets used across Europe and will charge laptops, tablets or other portable electronic equipment.

The plug converts AC current into DC voltage, which then powers your electrical appliances. It's supplied in a low-profile, compact casing with a 1.5 m cable. The unit is double insulated to ensure the output wires are separated from the AC input and it consumes just 0.075 W in standby mode, so it won't waste power. It's also protected from short circuits and power overload for added safety.

This small, lightweight, adaptor won’t take up much space and is energy-efficient, meeting the EU CoC (European Union Certificate of Conformity) Tier 2 efficiency standard and EnergyStar DOE (Department of Energy) VI specifications. It can also be used to charge smartphones, single board computers and telecommunications equipment.

Features and Benefits


• Double insulated AC/DC adaptor

• Small, low-profile plug-in switching adaptor

• Low standby power consumption

• Type C plug

• Input frequency range of 47 Hz to 63 Hz

• Energy efficiency level of VI

• Power rating of 24 W

• Power adapter with EU plug

• Applications include networking, peripherals, portable equipment, single board computers, tablets and smartphones, telecommunications and wireless communication

• Output connector of 2.1 mm x 5.5 mm x 10 mm centre positive

• Output voltage of 24 V DC

• Minimum input current of 800 mA

• Output current of 1 A

• Input voltage of 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC, 220 V AC, 230 V AC, 240 V AC

• Holdup time of 20 ms

• One output

• Includes over-current, over-voltage, overload, and short-circuit protection

• Cable length of 1.5 m

• Power signal conversion type of AC-DC

• Operating temperature range of -10°C to +40°C

• Dimensions of 69.3 mm x 41.4 mm x 46 mm

• CE certified and meets the EN 55013, EN 55014-1, EN 55014-2, EN 55020, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EU CoC V5, TUV/GS EN 60950-1 and UL 60065 standards for radio signal disturbance and immunity and electromagnetic compatibility

• RoHS (Restriction of Hazardous Substances) compliant
