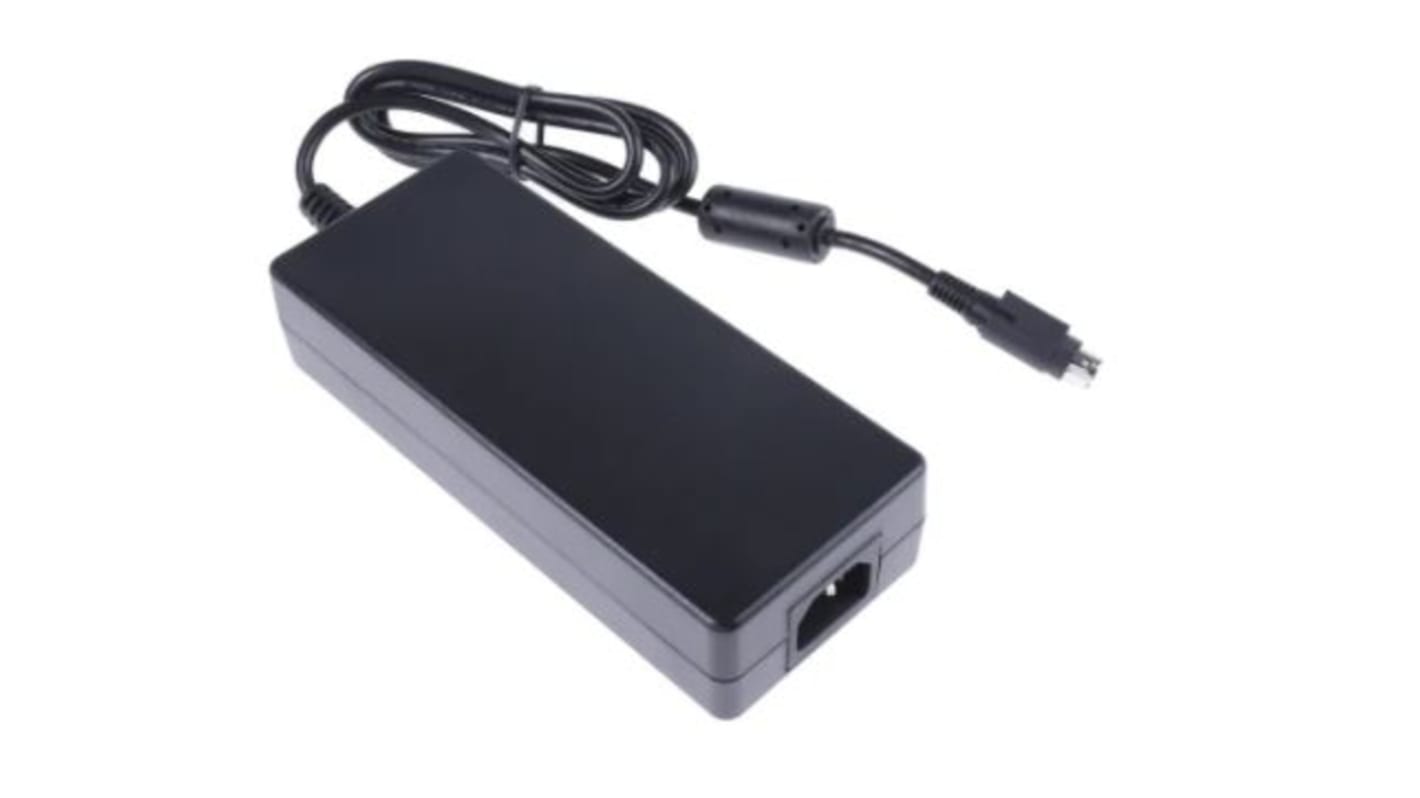

Phihong 120 W AC-DC Converter Power Supplies AC/DC Adapter 12V dc Output, 9 A
- RS stock no.:
- 124-2108
- Mfr. Part No.:
- PSA120U-120L6(RS)
- Manufacturer:
- Phihong
Bulk discount available
Subtotal (1 unit)*
R 2 232,78
(exc. VAT)
R 2 567,70
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 2,232.78 |
| 5 - 9 | R 2,176.96 |
| 10 - 24 | R 2,111.65 |
| 25 - 49 | R 2,027.18 |
| 50 + | R 1,946.09 |
*price indicative
- RS stock no.:
- 124-2108
- Mfr. Part No.:
- PSA120U-120L6(RS)
- Manufacturer:
- Phihong
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phihong | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC-DC Converter Power Supplies | |
| Output Voltage | 12V dc | |
| Power | 120W | |
| Output Connector Type | DC Jack | |
| Cable Length | 152mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | 3 Wire IEC 320 C14 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 9A | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | TUVFCC Class B, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, UL 60950-1, CSA 22.2 60950-1, EN 55022 Class B, EN 61000-3-2 Class D, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2 | |
| Length | 152mm | |
| Width | 73mm | |
| Depth | 37mm | |
| Maximum Input Voltage | 240V ac | |
| Energy Efficiency Level | VI | |
| Series | PSA120U | |
| Minimum Input Voltage | 90V ac | |
| Load Regulation | ±5 % | |
| Select all | ||
|---|---|---|
Brand Phihong | ||
Product Type AC/DC Adapter | ||
Sub Type AC-DC Converter Power Supplies | ||
Output Voltage 12V dc | ||
Power 120W | ||
Output Connector Type DC Jack | ||
Cable Length 152mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Input Connector Type 3 Wire IEC 320 C14 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 9A | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals TUVFCC Class B, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, UL 60950-1, CSA 22.2 60950-1, EN 55022 Class B, EN 61000-3-2 Class D, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2 | ||
Length 152mm | ||
Width 73mm | ||
Depth 37mm | ||
Maximum Input Voltage 240V ac | ||
Energy Efficiency Level VI | ||
Series PSA120U | ||
Minimum Input Voltage 90V ac | ||
Load Regulation ±5 % | ||
- COO (Country of Origin):
- CN
Phihong PSA Series Desktop Power Supply
PSA series of desktop power adapter with ErP level V compliance and a wide AC input voltage range of 90 to 264 Vac. This low profile, compact, two wire input desktop power adapter has a low no load power draw of less than 0.5W and a leakage current of maximum 3.5mA. Typical applications for these desktop power adapters include portable equipment, networking, peripherals and terminals and gaming machines.
Features and Benefits
Low cost.
ErP level VI compliance.
Class B EMI.
Ecodesign ErP directive compliant.
Non-vented and spill proof case.
No load power consumption less than 0.5W.
Low profile design.
Various IEC320 connectors available.
EISA compliant.
Note
These power supplies are not supplied with a power plug. A suitable UK power plug can be found at 873-2418.
