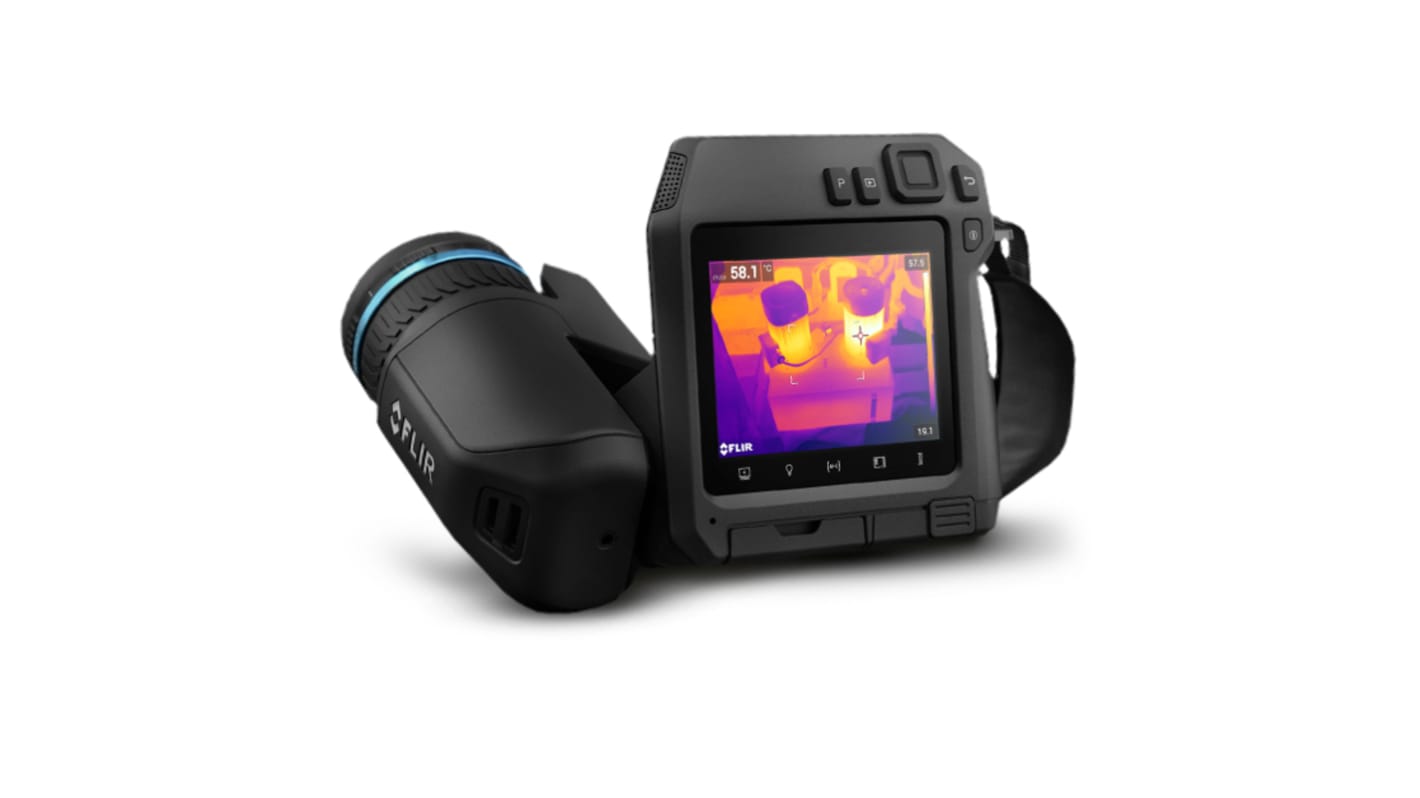

FLIR FLIR T560 T560-24-42 USB Type C Thermal Imaging Camera, 1500 °C 640 x 480 pixel Detector Resolution
- RS stock no.:
- 206-7270
- Mfr. Part No.:
- FLIR T560 24°+42°
- Manufacturer:
- FLIR
Image representative of range
Subtotal (1 unit)*
R 416 057,75
(exc. VAT)
R 478 466,41
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 416,057.75 |
*price indicative
- RS stock no.:
- 206-7270
- Mfr. Part No.:
- FLIR T560 24°+42°
- Manufacturer:
- FLIR
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FLIR | |
| Maximum Temperature Measurement | 1500°C | |
| Product Type | Thermal Imaging Camera | |
| Battery Type | Charged in camera or on separate Lithium-ion battery | |
| Detector Resolution | 640 x 480 pixel | |
| Display Resolution | 640 x 480 pixel | |
| Interface Type | USB Type C | |
| Horizontal Angle of View | 53° | |
| Thermal Sensitivity | 30mK | |
| Vertical Angle of View | 41° | |
| Focus Type | Continuous | |
| Power Source | Lithium-ion Battery | |
| Refresh Rate | 30Hz | |
| Battery Life | 4h | |
| Minimum Focus Distance | 150mm | |
| Weight | 1.4kg | |
| Standards/Approvals | No | |
| Series | FLIR T560 | |
| Emissivity | 0.01 to 1 | |
| Accuracy | ±2.0 °C | |
| Image Storage | SD card | |
| Width | 201mm | |
| Hazardous Area Certification | No | |
| Voice Recorder | Yes | |
| Length | 140mm | |
| Model Number | T560-24-42 | |
| Visual Camera | Yes | |
| Radiometric Video on Camera | No | |
| Auto Capture on Camera | Yes | |
| Image Enhancement | Yes | |
| IR/Visual Image Combination | Picture-in-Picture | |
| Spatial Resolution IFOV | 0.7mrad | |
| Battery Level Indicator | Yes | |
| Select all | ||
|---|---|---|
Brand FLIR | ||
Maximum Temperature Measurement 1500°C | ||
Product Type Thermal Imaging Camera | ||
Battery Type Charged in camera or on separate Lithium-ion battery | ||
Detector Resolution 640 x 480 pixel | ||
Display Resolution 640 x 480 pixel | ||
Interface Type USB Type C | ||
Horizontal Angle of View 53° | ||
Thermal Sensitivity 30mK | ||
Vertical Angle of View 41° | ||
Focus Type Continuous | ||
Power Source Lithium-ion Battery | ||
Refresh Rate 30Hz | ||
Battery Life 4h | ||
Minimum Focus Distance 150mm | ||
Weight 1.4kg | ||
Standards/Approvals No | ||
Series FLIR T560 | ||
Emissivity 0.01 to 1 | ||
Accuracy ±2.0 °C | ||
Image Storage SD card | ||
Width 201mm | ||
Hazardous Area Certification No | ||
Voice Recorder Yes | ||
Length 140mm | ||
Model Number T560-24-42 | ||
Visual Camera Yes | ||
Radiometric Video on Camera No | ||
Auto Capture on Camera Yes | ||
Image Enhancement Yes | ||
IR/Visual Image Combination Picture-in-Picture | ||
Spatial Resolution IFOV 0.7mrad | ||
Battery Level Indicator Yes | ||
- COO (Country of Origin):
- SE
FLIR Thermal Imaging Camera, 640 x 480 pixel Detector Resolution, 30Hz Refresh - FLIR T560-24-42
This thermal imaging Camera provides professionals in fields of different industries with the Advanced features needed to troubleshoot issues efficiently. With a focus on precision and accuracy, this Camera allows users to diagnose electrical or mechanical faults, find hidden faults, and confirm repairs in power generation, electrical transmission, and manufacturing equipment.
Features & Benefits
• Offers a resolution of 640 x 480 pixels for clear thermal imaging
• Advanced on-camera measurement tools such as 1-Touch Level/Span ensure accurate temperature recording
• Laser-assisted autofocus for precise measurements
• 180° rotating lens platform for easy and comfortable usage
• Bright 4” LCD display for clear viewing even in hard-to-reach areas
• FLIR Vision Processing technology provides industry-leading image clarity
• GPS location data automatically added to every still image
• Removable SD card for image storage
Applications
• Troubleshooting hot spots in power generation equipment
• Diagnosing electrical faults in transmission and distribution systems
• Confirming repairs in manufacturing equipment
Can it provide accurate temperature measurements in a range of -20°C to +1500°C?
Yes, it offers precise temperature measurement in this wide range.
Will it assist in identifying hidden faults in electrical systems?
Yes, the Advanced features of this Camera help in finding hidden faults in electrical systems effectively.
Is it suitable for professionals in the automation industry?
Yes, this thermal Camera is designed to meet the needs of professionals in automation, electronics, electrical, and mechanical industries.
Software Options:
2441681 Thermal Studio Pro Perpetual
2441680 Thermal Studio Pro 1 year
2441684 Thermal Studio Standard Perpetual
2441682 Thermal Studio Standard 1 year
