Abracon, AISC-0603F Unshielded Surface Mount Inductor with a Ferrite Core, 470 nH 5 % 470 mA Idc
- RS stock no.:
- 240-0865
- Mfr. Part No.:
- AISC-0603F-R47J-T
- Manufacturer:
- Abracon

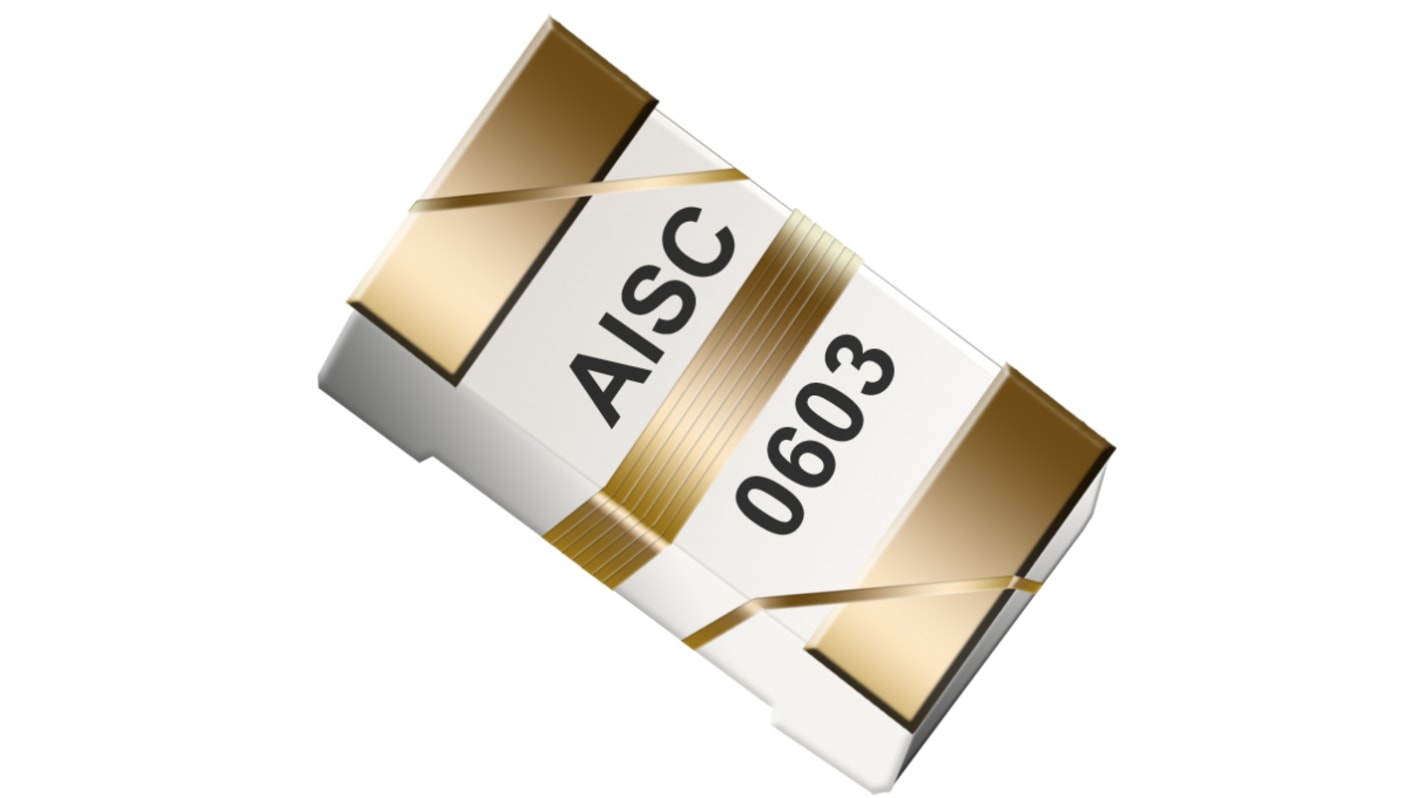

Image representative of range
Bulk discount available
Subtotal (1 pack of 25 units)*
R 101,45
(exc. VAT)
R 116,675
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | R 4.058 | R 101.45 |
| 50 - 75 | R 3.956 | R 98.90 |
| 100 - 225 | R 3.837 | R 95.93 |
| 250 - 975 | R 3.684 | R 92.10 |
| 1000 + | R 3.536 | R 88.40 |
*price indicative
- RS stock no.:
- 240-0865
- Mfr. Part No.:
- AISC-0603F-R47J-T
- Manufacturer:
- Abracon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Inductance | 470nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 470mA | |
| Package/Case | Surface Mount | |
| Packaging | Tape & Reel | |
| Length | 1.6mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.37Ω | |
| Pin Count | 2 | |
| Inductance Tolerance | 5 % | |
| Series | AISC-0603F | |
| Maximum Operating Temperature | 85°C | |
| Core Material | Ferrite | |
| Height | 1mm | |
| Standards/Approvals | Pb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 :2008 | |
| Depth | 1mm | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Inductance 470nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 470mA | ||
Package/Case Surface Mount | ||
Packaging Tape & Reel | ||
Length 1.6mm | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.37Ω | ||
Pin Count 2 | ||
Inductance Tolerance 5 % | ||
Series AISC-0603F | ||
Maximum Operating Temperature 85°C | ||
Core Material Ferrite | ||
Height 1mm | ||
Standards/Approvals Pb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 :2008 | ||
Depth 1mm | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
The Abracon Ferrite wire wound inductors is Suitable for wide range of application such as Camcorders, LED TVs and other electronic devices.
Higher inductance values
Ferrite construction for high current rating
Inductance values: 47 nH – 22 μH; 5% tolerance available
