Phoenix Contact PLC-OPT-5DC/24DC/2/ACT Series Solid State Interface Relay, 6 V ac/dc Control, DIN Rail Mount
- RS stock no.:
- 711-4759
- Mfr. Part No.:
- 2900375
- Manufacturer:
- Phoenix Contact
Temporarily out of stock - back order for despatch when stock is available
Added
Price (Excl VAT) Each
R 796,53
(exc. VAT)
R 916,01
(inc. VAT)
Units | Per unit |
1 - 4 | R 796,53 |
5 - 9 | R 776,62 |
10 + | R 757,20 |
- RS stock no.:
- 711-4759
- Mfr. Part No.:
- 2900375
- Manufacturer:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

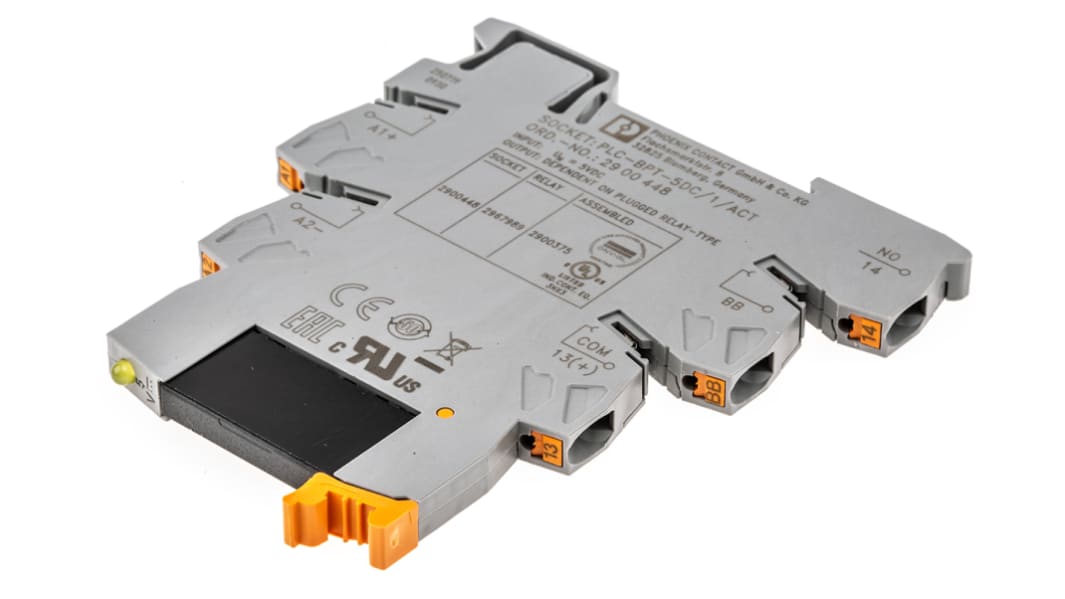

Phoenix Contact Solid State Interface Relay, 5V DC Coil Voltage, 9.5mA Input Current - PLC-OPT- 5DC/ 24DC/2/ACT - 2900375
Switch circuits quickly and without electrical noise using this solid state interface relay from Phoenix Contact. It uses a small electrical charge to open or close the circuit, so, unlike a mechanical relay, there are no moving parts that will wear out. This means you get a long-lasting switching solution that works faster than is possible with physical movement – expect a turn-on time of just 20μs.
This relay has an input voltage range between 4 and 6V DC. This makes it well-suited to low-power switching applications, such as small-scale lighting systems, industrial sensors and production lines. Thanks to compact dimensions of 80 (H) x 6.2 (W) x 94mm (D), it's a good choice when you don't have a lot of space to work with. Quick and simple DIN-rail mounting makes it easy to install or swap between setups. An operating temperature range between -25°C and +60°C means it stands up well to any challenging conditions you throw at it.
This relay has an input voltage range between 4 and 6V DC. This makes it well-suited to low-power switching applications, such as small-scale lighting systems, industrial sensors and production lines. Thanks to compact dimensions of 80 (H) x 6.2 (W) x 94mm (D), it's a good choice when you don't have a lot of space to work with. Quick and simple DIN-rail mounting makes it easy to install or swap between setups. An operating temperature range between -25°C and +60°C means it stands up well to any challenging conditions you throw at it.
Features & Benefits
All-in-one solution with no additional modules required
Protected against surges and polarity to safeguard your equipment
Protected against surges and polarity to safeguard your equipment
Specification
Attribute | Value |
---|---|
Maximum Control Voltage | 6 V ac/dc |
Mounting Type | DIN Rail |
Control Voltage Range | 4 → 6 V ac/dc |
Contact Configuration | SPST |
Terminal Type | Surface Mount |
Input Current | 9.5mA |
Length | 94mm |
Depth | 6.2mm |
Series | PLC-OPT-5DC/24DC/2/ACT |
Height | 80mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -25°C |
Dimensions | 94 x 6.2 x 80mm |
Operating Temperature Range | -25 → +60°C |
Manufacturer Part No. | 2900375 |
