RS PRO PCB Signal Relay, 12 V dc Coil, 2 A, 4PDT
- RS stock no.:
- 193-5849
- Manufacturer:
- RS PRO
Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 670,95
(exc. VAT)
R 771,59
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 47 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 9 | R 670.95 |
| 10 - 24 | R 654.18 |
| 25 - 49 | R 634.55 |
| 50 + | R 609.17 |
*price indicative
- RS stock no.:
- 193-5849
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Signal Relay | |
| Coil Voltage | 12 V dc | |
| Contact Configuration | 4PDT | |
| Mount Type | PCB | |
| Switching Current | 2 A | |
| Switching AC Voltage | 250 V ac | |
| Switching DC Voltage | 220 V dc | |
| Series | TX2 | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 62.5VA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 8.4mm | |
| Terminal Type | Surface Mount | |
| Width | 9.4 mm | |
| Length | 15mm | |
| Coil Power | 280mW | |
| Contact Material | Gold Plated | |
| Contact Resistance | 100mΩ | |
| Coil Resistance | 178Ω | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Signal Relay | ||
Coil Voltage 12 V dc | ||
Contact Configuration 4PDT | ||
Mount Type PCB | ||
Switching Current 2 A | ||
Switching AC Voltage 250 V ac | ||
Switching DC Voltage 220 V dc | ||
Series TX2 | ||
Minimum Operating Temperature -40°C | ||
Switching Power 62.5VA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 8.4mm | ||
Terminal Type Surface Mount | ||
Width 9.4 mm | ||
Length 15mm | ||
Coil Power 280mW | ||
Contact Material Gold Plated | ||
Contact Resistance 100mΩ | ||
Coil Resistance 178Ω | ||
- COO (Country of Origin):
- GB

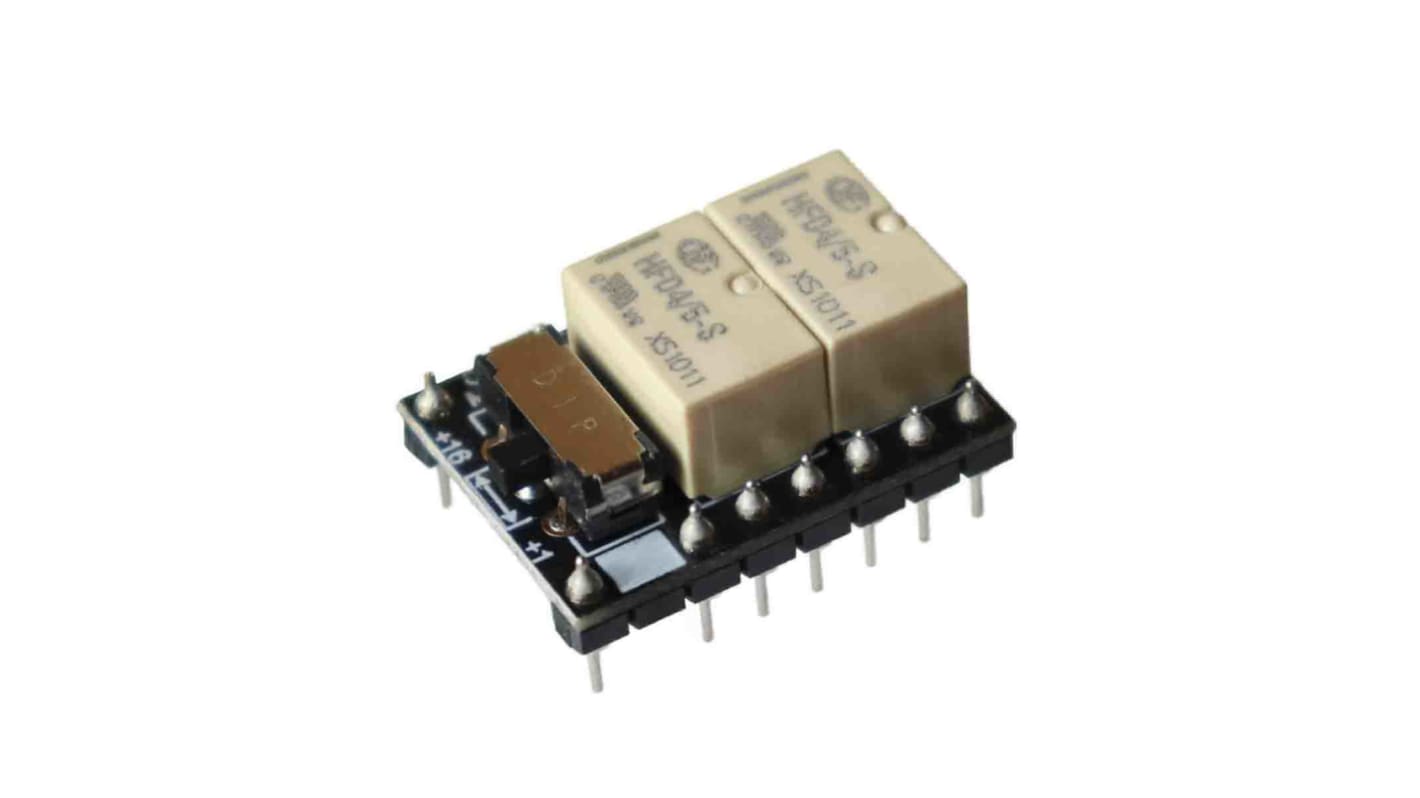

The RS PRO 4PDT 12V polarity selectable PCB mount relay is a drop in alternative solution to the obsolete Tyco/Axicom MT4 and Siemens V23104 relays. This relay module is fitted with polarised signal relays, the polarity selector switch enables easy integration into any relay circuit that previously used the original obsolete non- polarised relays.
