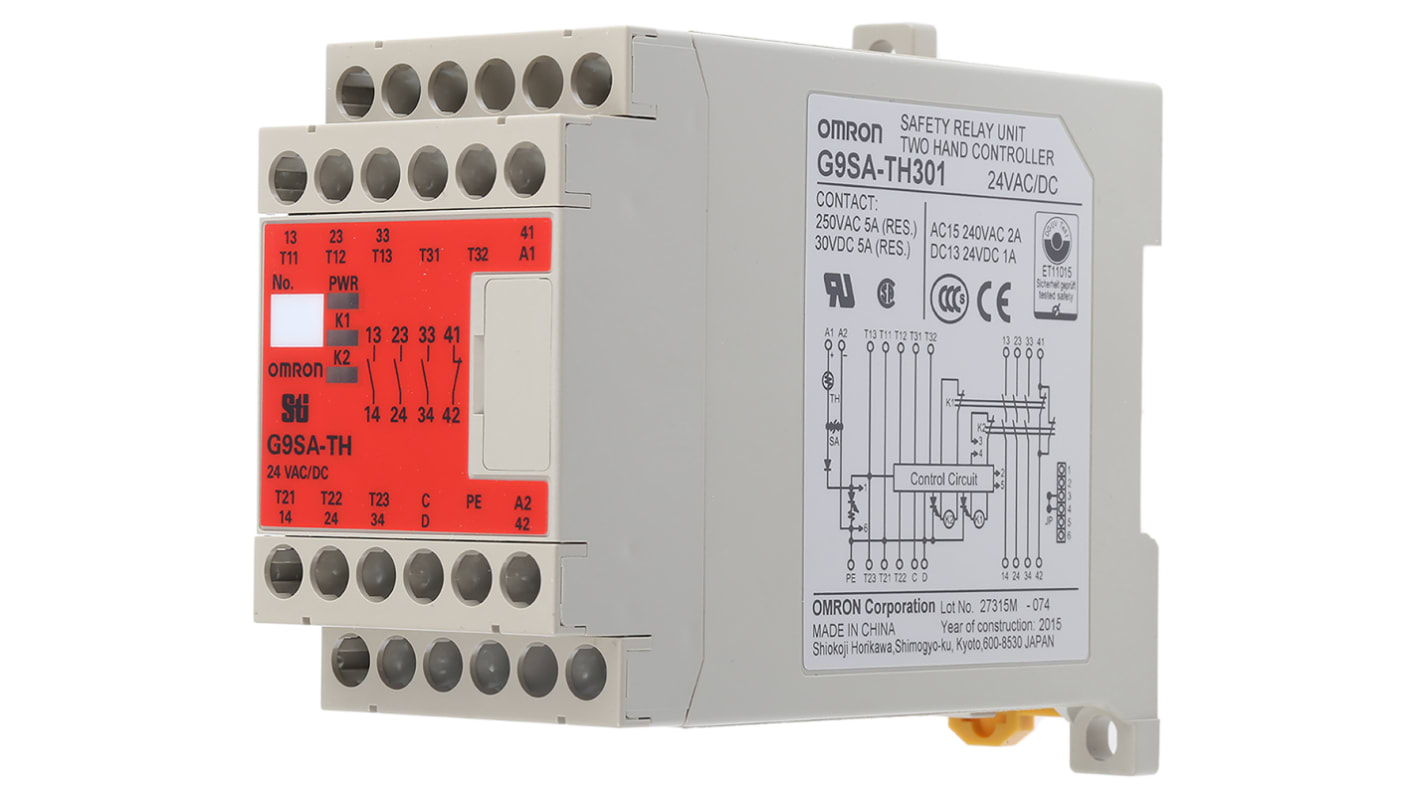

Omron G9SA Two Hand Control Safety Relay, 24V ac/dc, Dual-Channel, 3 Safety Contacts

RS stock no.:: 757-9326
Mfr. Part No.:: G9SA-TH301 AC/DC24
Manufacturer:: Omron

Omron G9SA Two Hand Control Safety Relay, 24V ac/dc, Dual-Channel, 3 Safety Contacts

Price (Excl VAT) Each

R 6 311,11

(exc. VAT)

R 7 257,78

(inc. VAT)

9 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

Not Available for premium delivery

Units	Per unit
1 +	R 6 311,11

RS stock no.:: 757-9326
Mfr. Part No.:: G9SA-TH301 AC/DC24
Manufacturer:: Omron

G9SA, Safety Relays, Expandable

The G9SA family offers a line-up of compact and expandable safety relay units. Modules with safe OFF-delay timing are available as well as a two hand controller. Simple multiplication of safety contacts is possible by using the connection on the front.

45mm wide housing, expansion units are 17.5mm wide
Both DIN mount and screw mount are possible
Safe OFF-delay timer model with 1-15s delay (in 1s steps)
Simple expansion connection
Certification up to category 4 according to EN954-1 depending on the application
Suitable for PNP OSSD outputs of safety sensors, F3SN, F3SH, F3S-B, F3S-TGR, F3SL

Standards

EN954-1, EN60204-1, EN574 (-TH301), UL508, CSA C22.2 No. 14

Approvals

UL, CSA

Omron G9SA-TH Series Safety Relay, 24V AC/DC Supply Voltage, 94mm Length - G9SA-TH301 AC/DC24

This safety relay enhances operational safety in industrial environments by monitoring input signals to ensure that machinery operates within safe parameters. It is particularly important for applications requiring two-hand control, helping to comply with safety standards while maintaining performance. The relay features an automatic reset capability and is compatible with various power supplies, making it a flexible option for automation systems.

Features & Benefits

• Supports two-hand control to prevent accidental activation
• Compatible with both AC and DC power supplies for enhanced flexibility
• Meets ISO 13849-1 Safety Category 4 for substantial safety assurances
• Automatic reset mechanism contributes to operational efficiency
• Includes one auxiliary contact for added functionality
• Compact design facilitates easy integration into control panels

Applications

• Utilised in machinery that requires dual operator safety mechanisms
• Ideal for assembly lines where two-hand control is essential
• Integrates seamlessly into automated safety systems
• Commonly used in equipment where adherence to safety standards is crucial
• Suitable for electrical safety circuits to improve monitoring

How can one ensure the safety relay operates correctly during installation?

Proper connection of the input terminals and adherence to the provided wiring guidelines can help maintain correct operation.

Is there a specific method to reset the relay after tripping?

The reset function can be activated via designated manual controls once the safety conditions are safely restored.

What are the implications of using this relay with different power supplies?

The relay is versatile and functions effectively with both AC and DC supplies, providing adaptability for various installations.

Can additional safety features be integrated with this relay?

Yes, the design allows for auxiliary contacts and expansion units, enabling enhanced safety configurations.

What maintenance is required to ensure longevity?

Regular visual inspections and testing of the input signals can help ensure optimal performance and prevent wear-related issues.

Standards

EN 954-1, EN 60204-1, UL 508, CSA C22.2 No 14, EN 55011 group 1 class A, EN 50082-2 group 1.

Attribute	Value
Supply Voltage	24V ac/dc
Number of Channels	2
Safety Contacts	3
Function	Two Hand Control
Auxiliary Contacts	1
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
Width	45mm
Series	G9SA
Depth	111mm
Length	94mm
Performance Level	e
