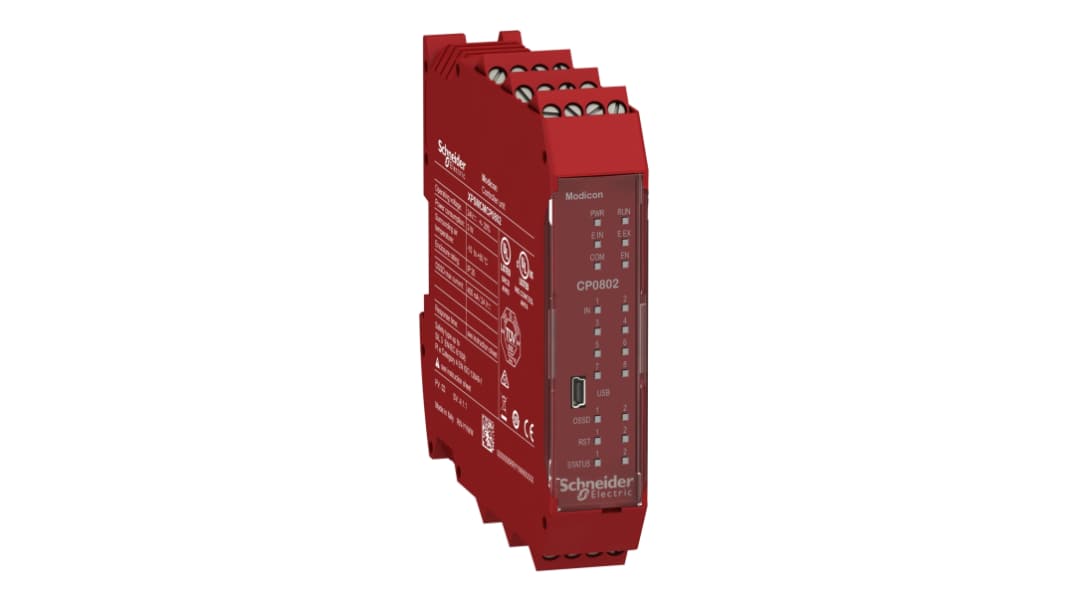

Schneider Electric Preventa XPSMCM Series Safety Controller, 8 Safety Inputs, 2 Safety Outputs, 24 V dc
- RS stock no.:
- 111-3509
- Mfr. Part No.:
- XPSMCMCP0802
- Manufacturer:
- Schneider Electric

View this category
On back order for despatch 2023/03/31
Price (Excl VAT) Each
R 7,238.67
(exc. VAT)
R 8,324.47
(inc. VAT)
units | Per unit |
1 + | R 7,238.67 |
Alternatives
This product is not currently available. Here are our alternative recommendations.




- RS stock no.:
- 111-3509
- Mfr. Part No.:
- XPSMCMCP0802
- Manufacturer:
- Schneider Electric
Not Applicable
- COO (Country of Origin):
- IT
Technical data sheets
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- IT
Product Details
Preventa Modular Safety Controller, XPSMCM
The Preventa modular safety controller XPSMCM is designed to monitor a safety configuration and can be configured using the software SoSafe Configurable. The safety controller CPU is also usable as a standalone device or able to be connected to any of the expansion units of the XPSMCM system. These include I/O expansion, relay output, communication expansion, speed monitoring and non-safe fieldbus communication modules. It has a compact designed, 22.5 x 99 x 114.5 mm, the same size as a typical safety relay.
Features and Benefits
Optional configuration memory card (stock no. 111-3519 sold separately)
Log file containing the last 5 configuration modifications in chronological order, with date of modification
24 terminals compact red housing, 22.5 x 99 x 114.5 mm
Connection with other expansion modules via the expansion bus connector (stock no. 111-3503, sold separately)
Mini USB 2.0 connector for configuration
8 safety digital inputs
2 OSSD pairs with 400 mA output current
4 test outputs for line control monitoring of input circuits
2 inputs for Start/Restart interlock and external device monitoring (EDM)
2 configurable status outputs
SILCL 3 conforming to IEC 62061
Type 4 conforming to EN/IEC 61496-1
Can reach PLe conforming to EN/ISO 13849-1
Can reach category 4 conforming to EN/ISO 13849-1
Green Premium Product
RoHS compliant
Log file containing the last 5 configuration modifications in chronological order, with date of modification
24 terminals compact red housing, 22.5 x 99 x 114.5 mm
Connection with other expansion modules via the expansion bus connector (stock no. 111-3503, sold separately)
Mini USB 2.0 connector for configuration
8 safety digital inputs
2 OSSD pairs with 400 mA output current
4 test outputs for line control monitoring of input circuits
2 inputs for Start/Restart interlock and external device monitoring (EDM)
2 configurable status outputs
SILCL 3 conforming to IEC 62061
Type 4 conforming to EN/IEC 61496-1
Can reach PLe conforming to EN/ISO 13849-1
Can reach category 4 conforming to EN/ISO 13849-1
Green Premium Product
RoHS compliant
Application Information
The XPSMCM is suitable for speed monitoring, enabling switches, safety mats, two-hand control, magnetic switches, foot switches, light curtains and E-stops.
Standards
EN/IEC 61496-1, EN/IEC 61508, EN/IEC 61800-5-1, EN/ISO 13849-1, IEC 62061.
Approvals
CE, cULus, TUV.
Specification
Attribute | Value |
Range | Preventa |
Series | XPSMCM |
Number of I/O | 18 |
Number of Safety Inputs | 8 |
Number of Safety Outputs | 2 |
Safety Category | 4 |
SIL | SIL 3 |
Field Bus Communication Type | Ethernet IP, Modbus TCP, USB |
Expansion Available | Yes |
Supply Voltage | 24 V dc |
Contact Current Rating | 400 mA |
Contact Voltage Rating | 24 V dc |
Terminal Type | Screw |
IP Rating | IP20 |
Width | 99mm |
Dimensions | 22.5 x 99 x 114.5 mm |
Length | 22.5mm |
Depth | 114.5mm |
