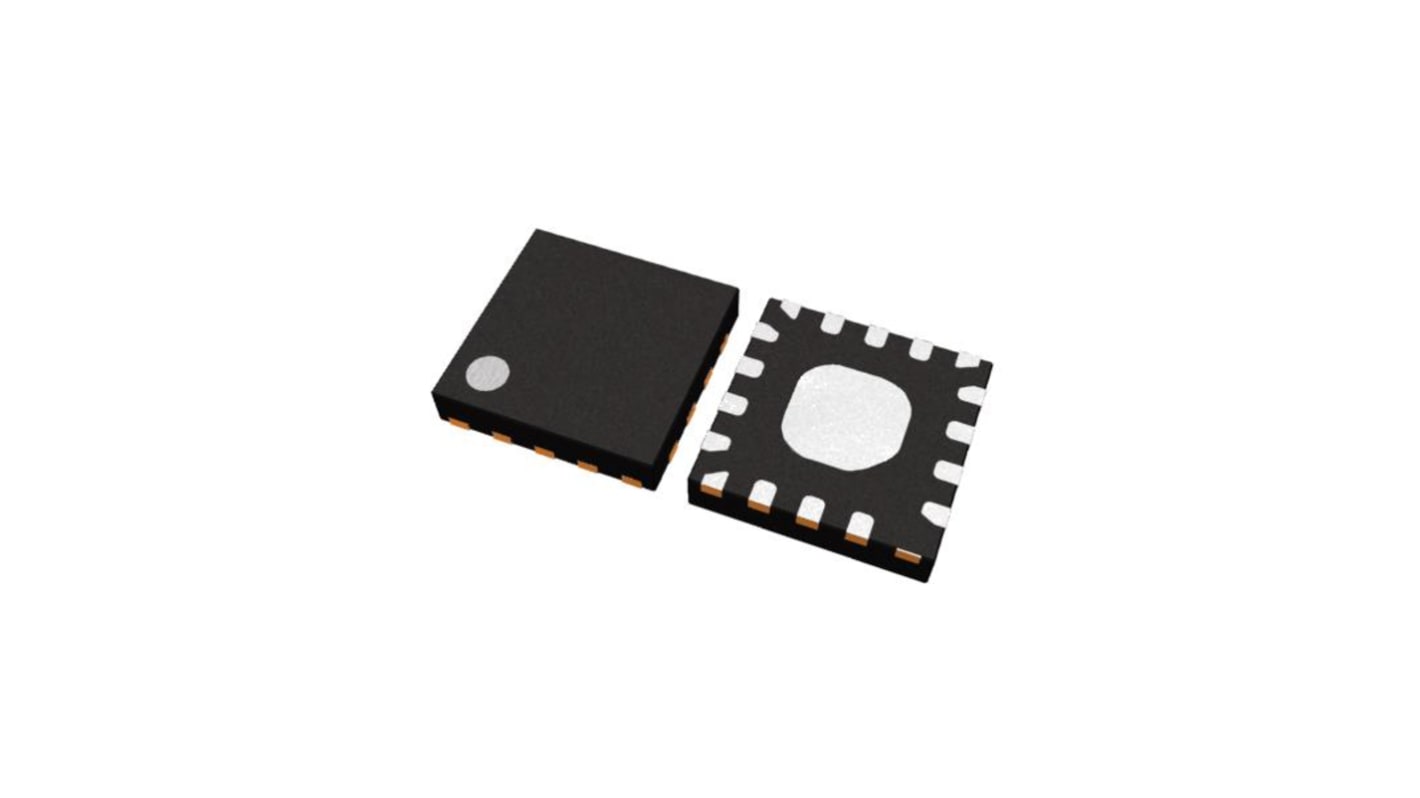

Nisshinbo Micro Devices NJG1809ME7-TE1 RF Switch
- RS stock no.:
- 244-9755
- Mfr. Part No.:
- NJG1809ME7-TE1
- Manufacturer:
- Nisshinbo Micro Devices
Bulk discount available
Subtotal (1 reel of 3000 units)*
R 53 991,00
(exc. VAT)
R 62 091,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 01 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | R 17.997 | R 53,991.00 |
| 6000 - 6000 | R 17.547 | R 52,641.00 |
| 9000 + | R 17.021 | R 51,063.00 |
*price indicative
- RS stock no.:
- 244-9755
- Mfr. Part No.:
- NJG1809ME7-TE1
- Manufacturer:
- Nisshinbo Micro Devices
Technical data sheets
Legislation and Compliance
Product Details
The New Japan Radio NJG1809ME7 series is a high power SP4T switch. This switch features very low insertion loss and high isolation up to 6GHz and excellent linearity performance with 1.8V control voltage. This switch achieves high speed switching time for WLAN application. Integrated ESD protection device on each port achieves excellent ESD robustness. No DC Blocking capacitors are required for all RF ports unless DC is biased externally.
Low voltage logic control
Low insertion loss
High isolation
High speed switching time
Small and thin package
RoHS compliant and Halogen Free
Low insertion loss
High isolation
High speed switching time
Small and thin package
RoHS compliant and Halogen Free
