Norgren 54D Series Pressure Sensor, Transistor Output 0 bar, Relative Reading 16 bar

RS stock no.:: 212-9087
Mfr. Part No.:: 54D-P016G-DA1-AA
Manufacturer:: Norgren

Norgren 54D Series Pressure Sensor, Transistor Output 0 bar, Relative Reading 16 bar

Bulk discount available

Subtotal (1 unit)*

R 3 020,13

(exc. VAT)

R 3 473,15

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	R 3,020.13
5 +	R 2,944.63

*price indicative

RS stock no.:: 212-9087
Mfr. Part No.:: 54D-P016G-DA1-AA
Manufacturer:: Norgren

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Norgren
	Product Type	Pressure Sensor
	Pressure Reading Type	Relative
	Maximum Pressure Measurement	16bar
	Minimum Pressure Measurement	0bar
	Accuracy	±0.5 %
	Output Type	Transistor
	Media Measured	Liquid, Gas
	Interface Type	IO-Link
	Terminal Type	M8
	Minimum Supply Voltage	18V
	Response Time	6ms
	Maximum Supply Voltage	32V dc
	Series	54D
	Housing Material	Polyester, Fluorelastomer, Polybutylene Terephthalate
	Standards/Approvals	EN 61000-6-2, EN 61000-6-3
	IP Rating	IP67
	Maximum Operating Temperature	70°C
	Minimum Operating Temperature	0°C

	Select all
	Brand Norgren
	Product Type Pressure Sensor
	Pressure Reading Type Relative
	Maximum Pressure Measurement 16bar
	Minimum Pressure Measurement 0bar
	Accuracy ±0.5 %
	Output Type Transistor
	Media Measured Liquid, Gas
	Interface Type IO-Link
	Terminal Type M8
	Minimum Supply Voltage 18V
	Response Time 6ms
	Maximum Supply Voltage 32V dc
	Series 54D
	Housing Material Polyester, Fluorelastomer, Polybutylene Terephthalate
	Standards/Approvals EN 61000-6-2, EN 61000-6-3
	IP Rating IP67
	Maximum Operating Temperature 70°C
	Minimum Operating Temperature 0°C

COO (Country of Origin):: DE

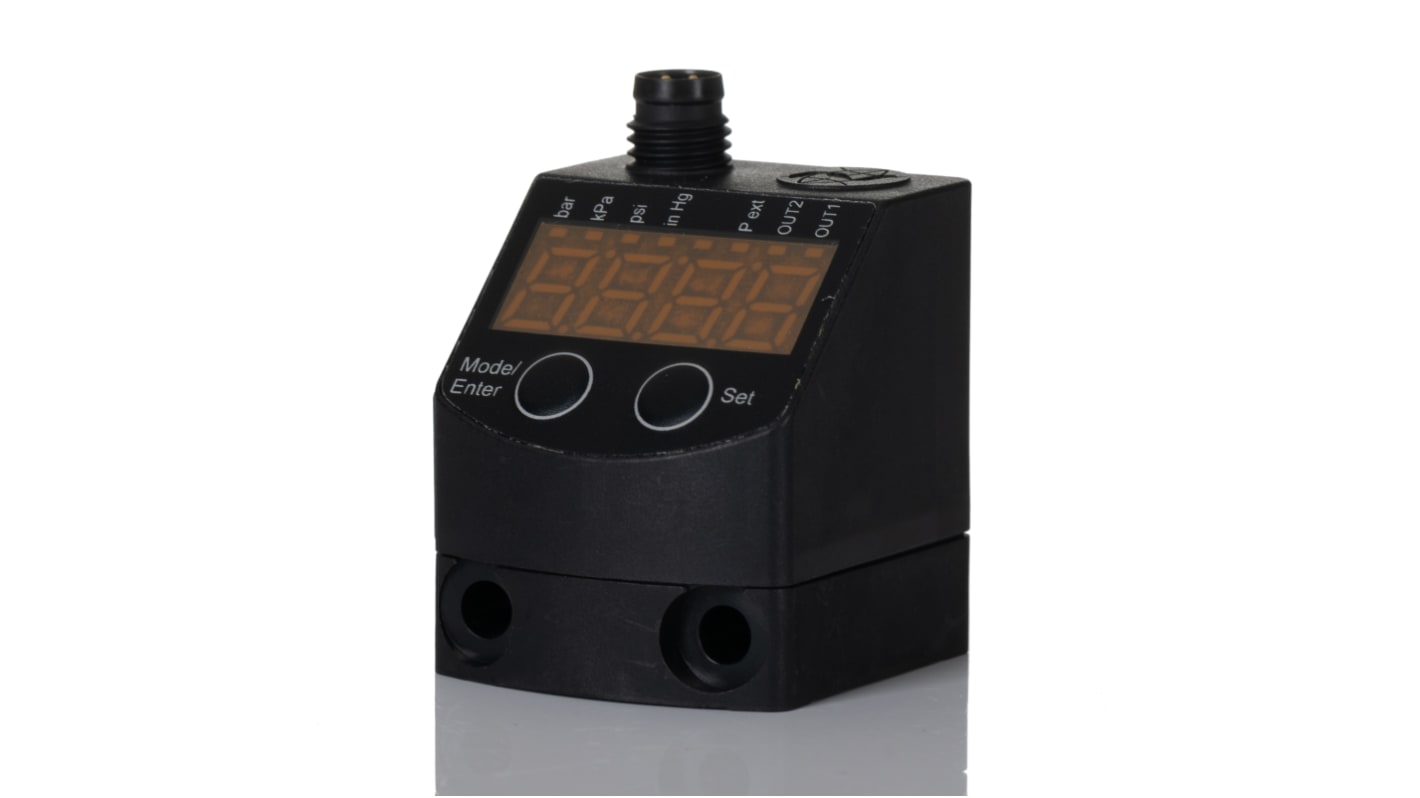

IMI Norgren Pressure Sensor, Shock and Vibration Resistant, IP65 Rating - 54D Series - 54D-P016G-DA1-AA

Get inside info on your pneumatic application with this pressure sensor from IMI Norgren. As it takes relative and differential readings, you can use it to measure atmospheric conditions or to work out the difference between pressures on both sides of your equipment. This makes it handy for assessing pressure drops, fluid levels and flow rates. The unit's two switching outputs mean you can connect it up to switches that control peripheral modules such as pumps, filters or exhaust valves to help you maintain network stability. Thanks to its shock and vibration resistance, you can trust it's safe to install around moving machinery.

Features & Benefits

• IP65 rating shows it has effective protection from dust and low-pressure water jets

• Industry-standard G1/8 port makes it a breeze to connect up to other bits of kit

• I/O-Link compatible for seamless integration of sensors and actuators with wired or wireless networks

Applications

• Automotive manufacturing

• Marine industries

• Aerospace engineering

Can I set a switching point for the device?

Yes. You can set this sensor to control a switch when pressure reaches a certain point. The display helps you keep track by changing colour between red and green to indicate pressures over or under your set point.
